AC60E AUTOMATIC TRANSMISSION / TRANSAXLE  PARK / NEUTRAL POSITION SWITCH  INSPECTION

1.083,1.656 1.208,1.656 1.208,1.656 1.354,1.292 true 2.375,1.615 2.219,1.615 2.219,1.615 2.094,1.281 true 1.365,1.885 1.51,1.885 1.51,1.885 1.708,1.292 true 1.823,0.958 2.042,0.5 2.042,0.5 2.167,0.5 true 1.583,0.958 1.344,0.375 1.344,0.375 1.208,0.375 true 1.26,0.958 1.104,0.635 1.104,0.635 0.969,0.635 true 2.292,1.854 2.156,1.854 2.156,1.854 1.969,1.281 true 0.896,1.583 1.156,1.792 0.26,0.208 10 false NL 2.448,1.531 2.813,1.729 0.365,0.198 10 false L 1.156,1.813 1.438,2.021 0.281,0.208 10 false DL 0.063,0.031 0.281,0.229 0.219,0.198 10 false *a 0.979,0.302 1.271,0.5 0.292,0.198 10 false RB 2.229,0.427 2.615,0.635 0.385,0.208 10 false RL 0.844,0.552 0.979,0.75 0.135,0.198 10 false B 2.365,1.771 2.656,1.969 0.292,0.198 10 false PL

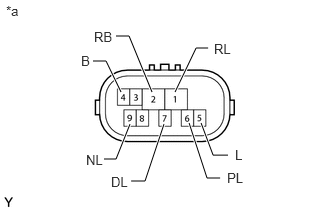

*a	Component without harness connected (Park/Neutral Position Switch Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
4 (B) - 5 (L)	Shift lever in P or N	Below 1 Ω
2 (RB) - 6 (PL)	Shift lever in P	Below 1 Ω
2 (RB) - 1 (RL)	Shift lever in R	Below 1 Ω
2 (RB) - 9 (NL)	Shift lever in N	Below 1 Ω
2 (RB) - 7 (DL)	Shift lever in D, S, "+" or "-"	Below 1 Ω
4 (B) - 5 (L)	Shift lever not in P or N	10 kΩ or higher
2 (RB) - 6 (PL)	Shift lever not in P	10 kΩ or higher
2 (RB) - 1 (RL)	Shift lever not in R	10 kΩ or higher
2 (RB) - 9 (NL)	Shift lever not in N	10 kΩ or higher
2 (RB) - 7 (DL)	Shift lever not in D, S, "+" or "-"	10 kΩ or higher

If the resistance value is not as specified, replace the park/neutral position switch assembly.
