RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381907 SFI SYSTEM C

7GR-FKS ENGINE CONTROL  SFI SYSTEM  P001700  Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B  P001900  Crankshaft Position - Camshaft Position Correlation Bank 2 Sensor B


DESCRIPTION

In the VVT (Variable Valve Timing) system, the appropriate exhaust valve open and close timing is controlled by the ECM. The ECM performs exhaust valve control by performing the following: 1) controlling the exhaust camshaft, camshaft timing oil control solenoid assembly, camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]) and operating the camshaft timing exhaust gear; and 2) changing the relative positions of the camshaft and crankshaft.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory Note
P001700 Crankshaft Position - Camshaft Position Correlation Bank 1 Sensor B Deviation in the crankshaft position sensor signal and VVT sensor (for exhaust camshaft of bank 1) signal (2 trip detection logic).
·

Valve timing

·

Camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 1)

·

Camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft of bank 1])

·

Camshaft timing exhaust gear assembly (bank 1)

·

Oil control valve filter (for exhaust camshaft of bank 1)

·

ECM


Comes on / Does not come on DTC stored SAE Code: P0017
P001900 Crankshaft Position - Camshaft Position Correlation Bank 2 Sensor B Deviation in the crankshaft position sensor signal and VVT sensor (for exhaust camshaft of bank 2) signal (2 trip detection logic).
·

Valve timing

·

Camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 2)

·

Camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft of bank 2])

·

Camshaft timing exhaust gear assembly (bank 2)

·

Oil control valve filter (for exhaust camshaft of bank 2)

·

ECM


Comes on / Does not come on DTC stored SAE Code: P0019

MONITOR DESCRIPTION

To monitor the correlation of the exhaust camshaft position and crankshaft position, the ECM checks the VVT learned value while the engine is idling. The VVT learned value is calibrated based on the camshaft position and crankshaft position. The exhaust valve timing is set to the neutral position while the engine is idling. If the VVT learned value is out of the specified range in consecutive driving cycles, the ECM stores a DTC.

MONITOR STRATEGY

Required Sensors/Components (Main) Camshaft timing exhaust gear assembly
Required Sensors/Components (Related) VVT sensor
Crankshaft position sensor
Frequency of Operation Continuous

TYPICAL ENABLING CONDITIONS

Engine speed 450 to 1000 rpm

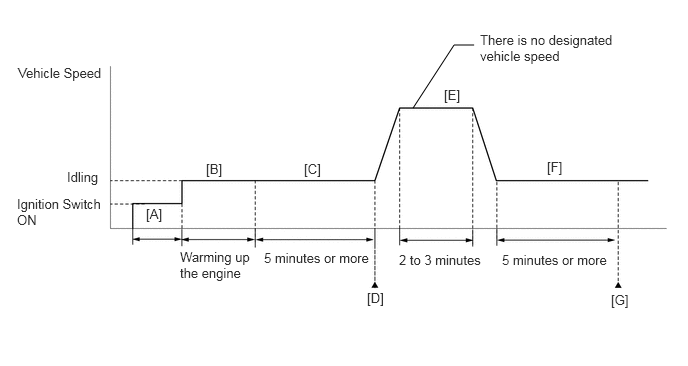

CONFIRMATION DRIVING PATTERN

A384166E31
4.302,1.125 4.729,0.469 4.729,0.469 4.938,0.469 false 0.188,0.677 1.156,1 0.969,0.323 10 false Vehicle Speed 0.698,1.76 1.667,2.083 0.969,0.323 10 false Idling 0.177,2.042 1.073,2.448 0.896,0.406 10 false Ignition Switch ON 1.521,2.146 2.49,2.469 0.969,0.323 10 false [A] 2.146,1.677 3.115,2 0.969,0.323 10 false [B] 3.167,1.677 4.135,2 0.969,0.323 10 false [C] 4.625,0.906 5.594,1.229 0.969,0.323 10 false [E] 5.698,1.656 6.667,1.979 0.969,0.323 10 false [F] 3.823,3.021 4.792,3.344 0.969,0.323 10 false [D] 6.365,3.042 6.823,3.292 0.458,0.25 10 false [G] 1.875,2.594 2.646,2.969 0.771,0.375 10 false Warming up the engine 2.75,2.604 3.906,2.906 1.156,0.302 10 false 5 minutes or more 4.156,2.625 5.125,2.948 0.969,0.323 10 false 2 to 3 minutes 5,0.333 6.417,0.75 1.417,0.417 10 false There is no designated vehicle speed 5.229,2.625 6.385,2.927 1.156,0.302 10 false 5 minutes or more

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

9.

Idle the engine for 5 minutes or more [C].

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [D].

11.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P001700 or P001900.

14.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.

·

If the judgment result is INCOMPLETE, perform steps [E] through [G].



15.

Drive the vehicle for 2 to 3 minutes [E].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


16.

Idle the engine for 5 minutes or more [F].

17.

Enter the following menus: Powertrain / Engine / Trouble Codes [G].

18.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



19.

Check the DTC judgment result.

HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.




CAUTION / NOTICE / HINT

HINT:
·

Bank 1 refers to the bank that includes the No. 1 cylinder*.

*: The No. 1 cylinder is the cylinder which is farthest from the transmission.

·

Bank 2 refers to the bank that does not include the No. 1 cylinder.

·

The monitor for this DTC detects when the timing chain is shifted by one tooth or more.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P001700 OR P001900)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P001700 or P001900 is output A
DTC P001700 or P001900 and other DTCs are output B


HINT:

If any DTCs other P001700 or P001900 are output, troubleshoot those DTCs first.




A

2.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO)

B

GO TO DTC CHART

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.PERFORM ACTIVE TEST USING GTS (CONTROL THE EXHAUST VVT OCV DUTY RATIO)
HINT:

If the VVT system can be operated through the Active Test, it can be assumed that the VVT system is operating normally.


a.

Connect the GTS to the DLC3.


b.

Start the engine.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Active Test / Control the Exhaust VVT OCV Duty Ratio Bank 1 or Control the Exhaust VVT OCV Duty Ratio Bank 2 / Data List / Exhaust VVT Change Angle Bank 1 or Exhaust VVT Change Angle Bank 2.

Powertrain > Engine > Active Test
Active Test Display
Control the Exhaust VVT OCV Duty Ratio Bank 1
Data List Display
Exhaust VVT Change Angle Bank 1
50004 372 5 398
Powertrain > Engine > Active Test
Active Test Display
Control the Exhaust VVT OCV Duty Ratio Bank 2
Data List Display
Exhaust VVT Change Angle Bank 2
50004 372 46 470

e.

Perform the Active Test. Check that the displacement angle varies.

OK:

Displacement angle varies.



Result:
Proceed to
OK
NG



OK

3.CHECK ENGINE MECHANICAL SYSTEM

NG

4.INSPECT CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT)
3.CHECK ENGINE MECHANICAL SYSTEM
a.

Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

HINT:

Perform "Inspection After Repair" after repairing or replacing the engine mechanical system.

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

7.CLEAR DTC

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

4.INSPECT CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT)
a.

Inspect the camshaft timing oil control solenoid assembly (for exhaust camshaft).

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL SOLENOID>INSPECTION


Result:
Proceed to
OK
NG



OK

5.INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT])

NG

REPLACE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (FOR EXHAUST CAMSHAFT)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL SOLENOID>REMOVAL


5.INSPECT CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT])
a.

Inspect the camshaft timing gear bolt (camshaft timing oil control valve assembly [for exhaust camshaft]).

·

for Bank 1: Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL VALVE (for Exhaust Side of Bank 1)>INSPECTION

·

for Bank 2: Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL VALVE (for Exhaust Side of Bank 2)>INSPECTION



Result:
Proceed to
OK
NG



OK

6.INSPECT OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT)

NG

REPLACE CAMSHAFT TIMING GEAR BOLT (CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY [FOR EXHAUST CAMSHAFT])
·

for Bank 1: Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL VALVE (for Exhaust Side of Bank 1)>REMOVAL

·

for Bank 2: Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>CAMSHAFT OIL CONTROL VALVE (for Exhaust Side of Bank 2)>REMOVAL



6.INSPECT OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT)
A370163C07
1.698,0.844 1.927,0.594 1.927,0.594 2.094,0.594 false 5.417,0.885 5.646,0.635 5.646,0.635 5.813,0.635 false 0.917,0.333 1.302,0.656 0.385,0.323 10 false *A 4.031,0.333 4.51,0.656 0.479,0.323 10 false *B 2.125,0.5 2.438,0.656 0.313,0.156 10 false *1 5.844,0.542 6.156,0.698 0.313,0.156 10 false *1
*A for Exhaust Camshaft of Bank 1 *B for Exhaust Camshaft of Bank 2
*1 Oil Control Valve Filter - -


a.

Remove the oil control valve filter (for exhaust camshaft of bank 1) or oil control valve filter (for exhaust camshaft of bank 2).

·

for Bank 1: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY

·

for Bank 2: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY



b.

Check that the filter is not clogged.

OK:

Filter is not clogged.



Result:
Proceed to
OK
NG



OK

7.CLEAR DTC

NG

REPLACE OIL CONTROL VALVE FILTER (FOR EXHAUST CAMSHAFT)
·

for Bank 1: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY

·

for Bank 2: Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE UNIT>DISASSEMBLY



7.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTC.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

8.CHECK WHETHER DTC OUTPUT RECURS (DTC P001700 OR P001900)
8.CHECK WHETHER DTC OUTPUT RECURS (DTC P001700 OR P001900)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.


c.

Read the pending DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P001700 or P001900 is output B




A

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


B

9.REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
10.CLEAR DTC
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTC.

Powertrain > Engine > Clear DTCs
50002 372

e.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

11.CHECK WHETHER DTC OUTPUT RECURS (DTC P001700 OR P001900)
11.CHECK WHETHER DTC OUTPUT RECURS (DTC P001700 OR P001900)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.


c.

Read the pending DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P001700 or P001900 is output B




A

END

B

REPLACE ECM

Click hereEngine / Hybrid System>7GR-FKS (ENGINE CONTROL)>ECM>REMOVAL
