7GR-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL SOLENOID  INSPECTION


PROCEDURE

Hide 15370 1.INSPECT CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

a.

Check the resistance.

i.
A436352C01
0.122,0.095 0.323,0.262 0.201,0.167 10 *a
*a Component without harness connected
(Camshaft Timing Oil Control Solenoid Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 0°C (32°F) 5.3 to 6.3 Ω
20°C (68°F) 5.8 to 6.8 Ω
40°C (104°F) 6.2 to 7.4 Ω


If the result is not as specified, replace the camshaft timing oil control solenoid assembly.



b.

Inspect the stroke amount.

i.

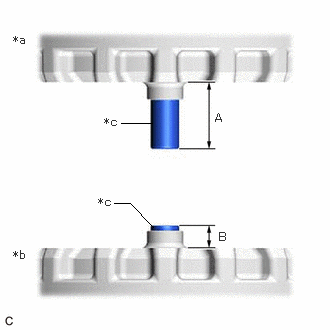

A436355C01
1.26,1.281 1.583,1.281 false 1.188,2.115 1.354,2.115 1.354,2.115 1.594,2.365 false 0.135,0.344 0.448,0.5 0.313,0.156 10 false *a 0.135,2.583 0.448,2.74 0.313,0.156 10 false *b 1.083,1.198 1.396,1.354 0.313,0.156 10 false *c 1.021,2.031 1.333,2.188 0.313,0.156 10 false *c 2.24,1.156 2.635,1.375 0.396,0.219 10 false A 2.281,2.396 2.677,2.615 0.396,0.219 10 false B
*a Shaft Side Facing Down
*b Shaft Side Facing Up
*c Shaft


Using a vernier caliper, measure length (A) and (B) with the shaft of the camshaft timing oil control solenoid assembly set in the respective positions shown in the illustration.

NOTICE:

Do not apply battery voltage (auxiliary battery voltage) to the terminals of the camshaft timing oil control solenoid assembly.


HINT:

If the shaft does not extend under its own weight, extend the shaft with your fingers.



ii.

Calculate the stroke amount based on the difference of length (A) and (B).

Standard:

6.5 mm (0.256 in.) or more


HINT:

Stroke amount = length (A) - length (B)


If the value is not as specified, replace the camshaft timing oil control solenoid assembly.
