RM35X0E _51 Engine / Hybrid System _078720 7GR-FKS ENGINE CONTROL _0381913 CAMSHAFT OIL CONTROL SOLENOID A

7GR-FKS ENGINE CONTROL  CAMSHAFT OIL CONTROL SOLENOID  REMOVAL


PROCEDURE

Hide 15370 2.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)

a.

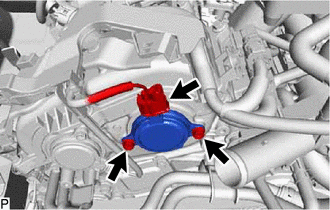

A443189

Disconnect the camshaft timing oil control solenoid assembly connector.


b.

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.

NOTICE:

If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.



c.
A368566

Remove the O-ring from the camshaft timing oil control solenoid assembly.

NOTICE:
·

If the O-ring comes off in the timing chain cover assembly, make sure to remove it.

·

Do not drop the O-ring into the timing chain cover assembly.




Hide 15370 3.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)

a.

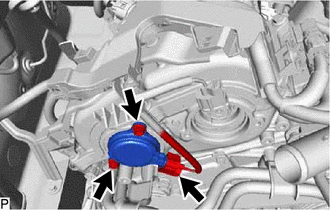

A443190

Disconnect the camshaft timing oil control solenoid assembly connector.


b.

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.

NOTICE:

If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.



c.
A368566

Remove the O-ring from the camshaft timing oil control solenoid assembly.

NOTICE:
·

If the O-ring comes off in the timing chain cover assembly, make sure to remove it.

·

Do not drop the O-ring into the timing chain cover assembly.




Hide 15370 4.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)

a.

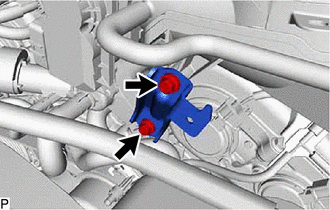

A436926

Remove the 2 bolts and throttle body bracket from the timing chain or belt cover sub-assembly and intake air surge tank.


b.

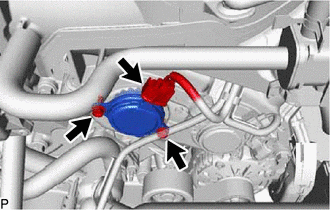

A443191

Disconnect the camshaft timing oil control solenoid assembly connector.


c.

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.

NOTICE:

If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.



d.
A368566

Remove the O-ring from the camshaft timing oil control solenoid assembly.

NOTICE:
·

If the O-ring comes off in the timing chain cover assembly, make sure to remove it.

·

Do not drop the O-ring into the timing chain cover assembly.




Hide 15370 5.REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)

a.

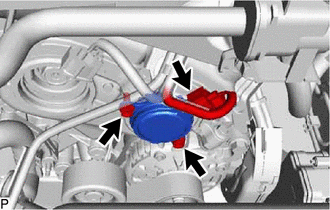

A443192

Disconnect the camshaft timing oil control solenoid assembly connector.


b.

Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.

NOTICE:

If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.



c.
A368566

Remove the O-ring from the camshaft timing oil control solenoid assembly.

NOTICE:
·

If the O-ring comes off in the timing chain cover assembly, make sure to remove it.

·

Do not drop the O-ring into the timing chain cover assembly.
