7GR-FKS ENGINE CONTROL SFI SYSTEM P001313 Camshaft Position "B" - Actuator Bank 1 Circuit Open P002313 Camshaft Position "B" - Actuator Bank 2 Circuit Open
DESCRIPTION

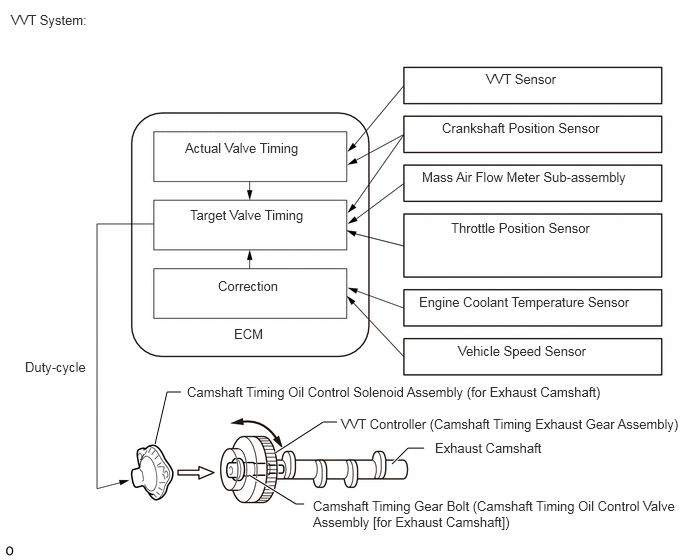

The Variable Valve Timing (VVT) system adjusts the exhaust valve timing to improve driveability. The engine oil pressure turns the VVT controller to adjust the valve timing.
The camshaft timing oil control solenoid assembly operates according to signals received from the ECM to control the position of the camshaft timing oil control valve assembly and supply engine oil. The camshaft timing oil control valve assembly moves when the ECM applies 12 V to the camshaft timing oil control solenoid assembly. The ECM changes the energizing time of the camshaft timing oil control solenoid assembly (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P001313 | Camshaft Position "B" - Actuator Bank 1 Circuit Open | Open or short in camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 1) circuit (1 trip detection logic). | ·
Open or short in camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 1) circuit ·
Camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 1) ·
ECM |
Comes on | DTC stored | SAE Code: P0013 |
| P002313 | Camshaft Position "B" - Actuator Bank 2 Circuit Open | Open or short in camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 2) circuit (1 trip detection logic). | ·
Open or short in camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 2) circuit ·
Camshaft timing oil control solenoid assembly (for exhaust camshaft of bank 2) ·
ECM |
Comes on | DTC stored | SAE Code: P0023 |
MONITOR DESCRIPTION
This DTC is designed to detect an open or short in the camshaft timing oil control solenoid assembly (for exhaust camshaft) circuit. If the camshaft timing oil control solenoid duty-cycle is excessively high or low while the ignition switch is ON or the engine is running, the ECM will illuminate the MIL and store this DTC.
MONITOR STRATEGY
| Required Sensors/Components | Camshaft timing oil control solenoid assembly (for exhaust camshaft) |
| Frequency of Operation | Continuous |
CONFIRMATION DRIVING PATTERN
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Start the engine [A].
Wait 5 seconds or more [B].
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P001313 or P002313.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system has a malfunction.
·If the judgment result is INCOMPLETE, perform steps [A] through [C] again.

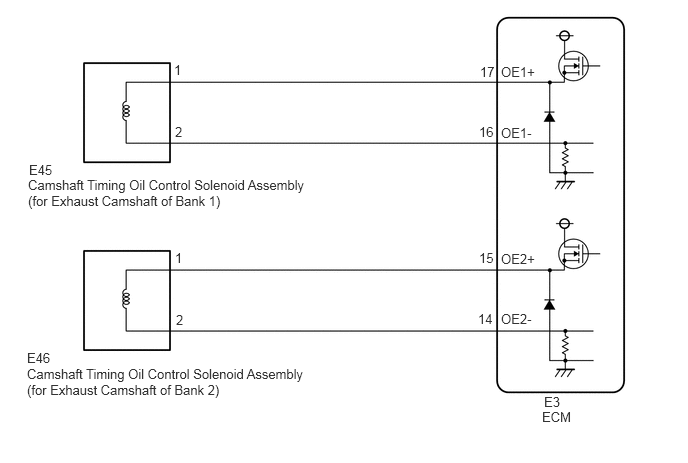

WIRING DIAGRAM
CAUTION / NOTICE / HINT
- HINT:
- ·
If DTC P001313 is output, check the VVT system (for exhaust camshaft of bank 1) circuit.
·If DTC P002313 is output, check the VVT system (for exhaust camshaft of bank 2) circuit.
·Bank 1 refers to the bank that includes the No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
·Bank 2 refers to the bank that does not include the No. 1 cylinder.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTC after recording the Freeze Frame Data and DTC.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Connect the GTS to the DLC3.
Start the engine.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes.
Read the DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- Result:
Result Proceed to DTC P001313 or P002313 is output A DTCs are not output B
A
B
Inspect the camshaft timing oil control solenoid assembly (for exhaust camshaft).
- Result:
Proceed to OK NG
OK
NG
Disconnect the camshaft timing oil control solenoid assembly (for exhaust camshaft) connector.
Disconnect the ECM connector.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition E45-1 - E3-17 (OE1+) Always Below 1 Ω E45-2 - E3-16 (OE1-) Always Below 1 Ω E46-1 - E3-15 (OE2+) Always Below 1 Ω E46-2 - E3-14 (OE2-) Always Below 1 Ω E45-1 or E3-17 (OE1+) - Body ground and other terminals Always 10 kΩ or higher E45-2 or E3-16 (OE1-) - Body ground and other terminals Always 10 kΩ or higher E46-1 or E3-15 (OE2+) - Body ground and other terminals Always 10 kΩ or higher E46-2 or E3-14 (OE2-) - Body ground and other terminals Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
NG
