RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380011 ROOF SPEAKER A

AUDIO / VIDEO ROOF SPEAKER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the roof speaker assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Disconnect cable from negative (-) battery terminal	Memorize steering angle neutral point	Parking assist monitor system	(201902,999999,_56,_079315,_0385736,RM100000001GNRA,)

HINT:

When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Stop and start system
Stop and start system*	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system		(201902,999999,_58,_078886,_0382740,RM100000001G6XB,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power slide door system	Fully close the slide door by hand. HINT: Initialization is not necessary if the above procedures are performed while the slide door is closed.	(201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for RHD and LHD vehicles.

The procedure listed below is for LHD vehicles.

Use the same procedure for the RH and LH sides.

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION (w/ Airbag System)

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>PRECAUTION201902,201906,_58,_079257,_0387732,RM100000001GZ4C,201906,999999,_58,_079257,_0387732,RM100000001IMN3,

·

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>PRECAUTION201902,999999,_58,_079257,_0385034,RM100000001GJPR,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>REMOVAL201902,201906,_V1,_078672,_0387105,RM100000001GV7N,201906,999999,_V1,_078672,_0387105,RM100000001IWL9,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>REMOVAL201902,201906,_V1,_078672,_0387106,RM100000001H6FR,201906,999999,_V1,_078672,_0387106,RM100000001IWLA,

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

Hide Display 3.REMOVE ROOF HEADLINING ASSEMBLY

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>REMOVAL201902,201906,_58,_078375,_0380060,RM100000001FZ64,201906,202208,_58,_078375,_0380060,RM100000001IXV1,202208,999999,_58,_078375,_0380060,RM1000000024I16,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>REMOVAL201902,201906,_58,_078375,_0381233,RM100000001FZ74,201906,202208,_58,_078375,_0381233,RM100000001IXV4,202208,999999,_58,_078375,_0381233,RM1000000024I19,

Hide Display 4.REMOVE ROOF SPEAKER WITH BRACKET

for Standard Roof:

0,0 0,0 false

	Bolt
	Connector

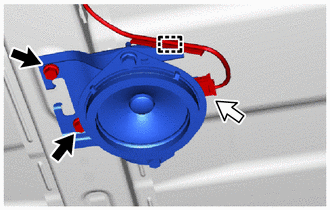

Detach the clamp and disconnect the connector.

ii.

Remove the 2 bolts.

iii.

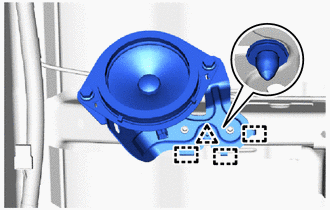

Detach the clip and guide and remove the roof speaker with bracket.

for High Roof:

0,0 0,0 false

	Bolt
	Connector

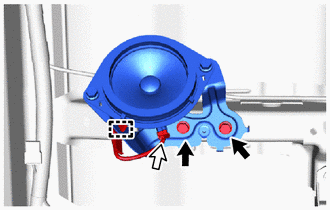

Detach the clamp and disconnect the connector.

ii.

Remove the 2 bolts.

iii.

Detach the guide and remove the roof speaker with bracket.

Hide Display 86160Q 5.REMOVE ROOF SPEAKER ASSEMBLY

for Standard Roof:

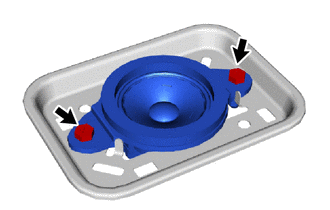

Remove the 2 bolts and roof speaker assembly.

for High Roof:

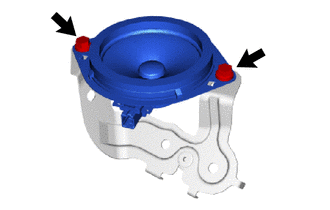

Remove the 2 bolts and roof speaker assembly.

Hide Display 86160Q 6.REMOVE ROOF SPEAKER ASSEMBLY (for Standard Roof, 6 Speakers)

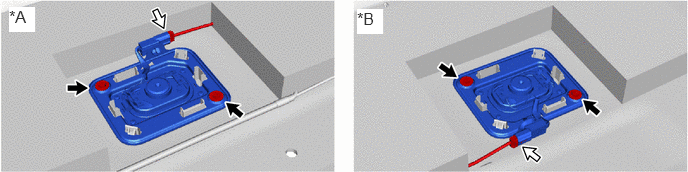

Disconnect the connector.

Remove the 2 screws.

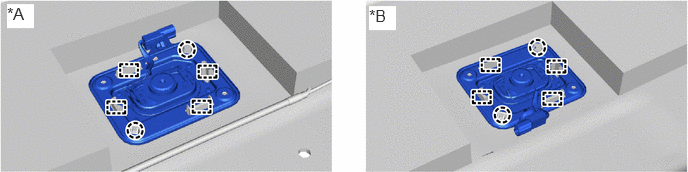

0.094,0.073 0.365,0.333 0.271,0.26 12 true *A 3.719,0.094 3.99,0.354 0.271,0.26 12 true *B

*A	for LH Side	*B	for RH Side
	Screw		Connector

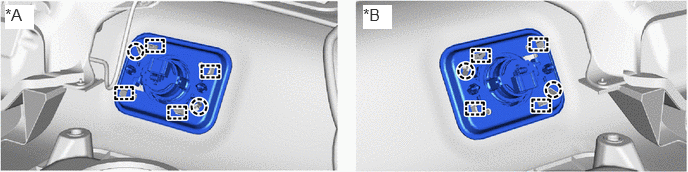

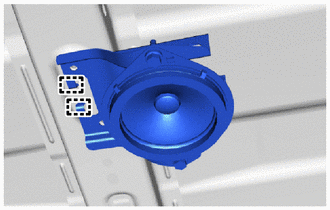

Detach the claw and guide and remove the roof speaker assembly.

0.073,0.042 0.354,0.292 0.281,0.25 12 true *A 3.844,0.063 4.125,0.313 0.281,0.25 12 true *B

for LH Side

for RH Side

Hide Display 7.REMOVE ROOF SPEAKER WITH BRACKET (for High Roof, 6 Speakers)

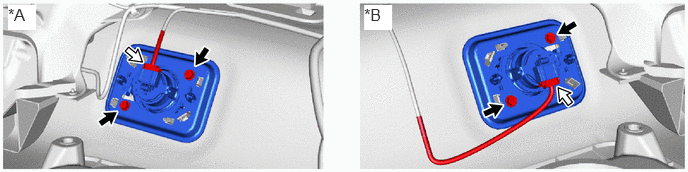

Disconnect the connector.

Remove the 2 screws.

0.083,0.052 0.375,0.313 0.292,0.26 12 true *A 3.792,0.052 4.083,0.313 0.292,0.26 12 true *B

*A	for LH Side	*B	for RH Side
	Screw		Connector

Detach the claw and guide and remove the roof speaker with bracket.

0.052,0.052 0.354,0.302 0.302,0.25 12 true *A 3.781,0.052 4.083,0.302 0.302,0.25 12 true *B

for LH Side

for RH Side

Hide Display 86160Q 8.REMOVE ROOF SPEAKER ASSEMBLY (for High Roof, 6 Speakers)

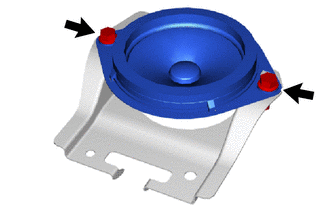

Remove the 2 screws and roof speaker assembly from No. 1 speaker mounting bracket.

Hide Display 9.REMOVE SCREW GROMMET (for High Roof, 6 Speakers)

HINT:: Perform this procedure only when replacing the screw grommet.

Detach the claw and remove the 2 screw grommets.
