NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  B1324  Lost Communication with Meter


DESCRIPTION

These DTCs are stored when communication between the radio and display receiver assembly and combination meter assembly is not possible.

DTC No. Detection Item DTC Detection Condition Trouble Area
B1324 Lost Communication with Meter CAN reception error
·

Local bus communication line

·

Combination meter power source circuit

·

Combination meter assembly

·

Radio and display receiver assembly

·

Harness or connector



HINT:

The radio and display receiver assembly is the master unit.


WIRING DIAGRAM

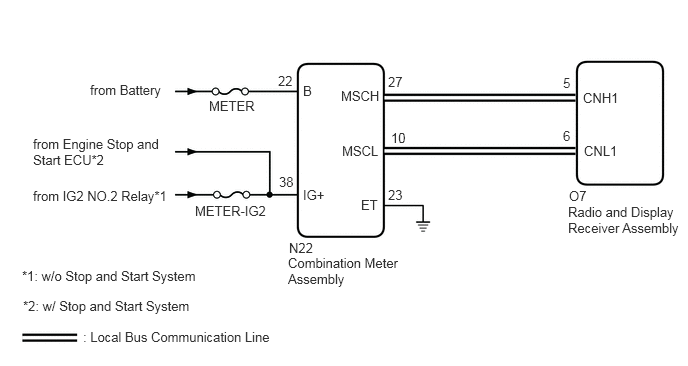

E408579E01
3,2.656 4.208,3.042 1.208,0.385 10 false Combination Meter Assembly 5.917,2.125 7.135,2.563 1.219,0.438 10 false Radio and Display Receiver Assembly 6.073,0.938 6.688,1.135 0.615,0.198 10 false CNH1 6.083,1.49 6.698,1.688 0.615,0.198 10 false CNL1 0.865,3.427 2.969,3.708 2.104,0.281 10 false : Local Bus Communication Line 0.938,0.854 2.458,1.229 1.521,0.375 10 false from Battery 2.031,2.115 3.24,2.5 1.208,0.385 10 false METER-IG2 0.344,1.417 1.771,1.865 1.427,0.448 10 false from Engine Stop and Start ECU*2 0.344,1.958 1.865,2.333 1.521,0.375 10 false from IG2 NO.2 Relay*1 0.229,2.792 2.531,3.073 2.302,0.281 10 false *1: w/o Stop and Start System 0.24,3.104 2.542,3.385 2.302,0.281 10 false *2: w/ Stop and Start System 3.156,0.865 4.365,1.25 1.208,0.385 10 false B 3.156,1.948 4.365,2.333 1.208,0.385 10 false IG+ 3.76,2.052 4.969,2.438 1.208,0.385 10 false ET 3.552,0.917 4.76,1.302 1.208,0.385 10 false MSCH 3.563,1.49 4.771,1.875 1.208,0.385 10 false MSCL 5.865,0.781 7.073,1.167 1.208,0.385 10 false 5 5.865,1.333 7.073,1.719 1.208,0.385 10 false 6 5.927,1.958 7.146,2.396 1.219,0.438 10 false O7 3.01,2.5 4.24,2.938 1.229,0.438 10 false N22 4.042,0.771 5.25,1.156 1.208,0.385 10 false 27 4.073,1.354 5.281,1.74 1.208,0.385 10 false 10 2.896,0.76 4.104,1.146 1.208,0.385 10 false 22 2.906,1.813 4.115,2.198 1.208,0.385 10 false 38 4.042,1.948 5.25,2.333 1.208,0.385 10 false 23 2.177,1.021 3.385,1.406 1.208,0.385 10 false METER

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:

-

A communication malfunction DTC may be stored.

-

The radio and display receiver assembly may not operate normally.


·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.



HINT:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Precaution for Navigation System.

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM>PRECAUTION


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY POWER SOURCE)
a.

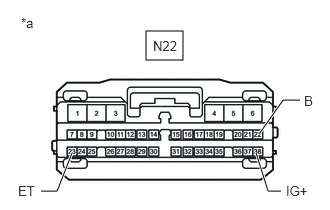

E408522C07
1.521,0.323 1.906,0.625 0.385,0.302 0.427,1.99 0.594,1.99 0.594,1.99 0.75,1.594 true 3.125,1.042 2.948,1.042 2.948,1.042 2.698,1.396 true 2.927,1.99 2.792,1.99 2.792,1.99 2.667,1.594 true 1.594,0.396 2.052,0.594 0.458,0.198 10 false N22 0.219,0.156 0.677,0.354 0.458,0.198 10 false *a 0.188,1.906 0.646,2.104 0.458,0.198 10 false ET 3.167,0.969 3.396,1.208 0.229,0.24 10 false B 2.979,1.906 3.281,2.104 0.302,0.198 10 false IG+
*a Front view of wire harness connector
(to Combination Meter Assembly)


Disconnect the combination meter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N22-23 (ET) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
N22-22 (B) - Body ground Always 11 to 14 V
N22-38 (IG+) - Body ground Ignition switch ON 11 to 14 V*1
10.5 to 16 V*2


*1: w/o Stop and Start System

*2: w/ Stop and Start System



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - COMBINATION METER ASSEMBLY)
a.

Disconnect the O7 radio and display receiver assembly connector.


b.

Disconnect the N22 combination meter assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O7-5 (CNH1) - N22-27 (MSCH) Always Below 1 Ω
O7-6 (CNL1) - N22-10 (MSCL) Always Below 1 Ω
O7-5 (CNH1) - Body ground Always 10 kΩ or higher
O7-6 (CNL1) - Body ground Always 10 kΩ or higher
O7-5 (CNH1) - O7-6 (CNL1) Always 10 kΩ or higher



d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O7-5 (CNH1) - Body ground Always Below 1 V
O7-6 (CNL1) - Body ground Always Below 1 V



Result:
Proceed to
OK
NG



OK

3.INSPECT COMBINATION METER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.INSPECT COMBINATION METER ASSEMBLY
a.

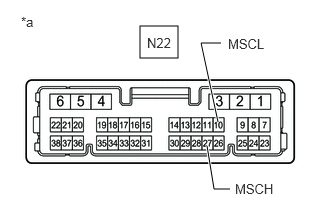

E408581C01
1.458,0.271 1.854,0.604 0.396,0.333 2.302,0.448 2.094,0.448 2.094,0.448 2.271,1.271 true 2.156,1.521 2.229,1.969 2.229,1.969 2.396,1.969 true 2.448,1.885 3.063,2.083 0.615,0.198 10 false MSCH 2.375,0.375 2.99,0.573 0.615,0.198 10 false MSCL 1.531,0.365 2.146,0.563 0.615,0.198 10 false N22 0.219,0.146 0.833,0.344 0.615,0.198 10 false *a
*a Component without harness connected
(Combination Meter Assembly)


Remove the combination meter assembly.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
N22-27 (MSCH) - N22-10 (MSCL) Always 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

4.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY

NG

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


4.INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY
a.

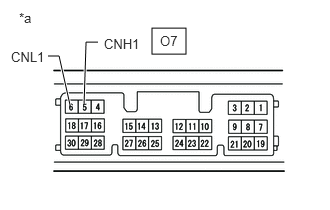

E408580C04
1.583,0.292 1.938,0.563 0.354,0.271 0.5,0.583 0.615,0.583 0.615,0.583 0.729,1.094 true 0.875,1.083 0.896,0.438 0.896,0.438 1.021,0.438 true 1.083,0.375 1.698,0.573 0.615,0.198 10 false CNH1 0.115,0.51 0.729,0.708 0.615,0.198 10 false CNL1 1.667,0.344 2.281,0.542 0.615,0.198 10 false O7 0.198,0.104 0.51,0.302 0.313,0.198 10 false *a
*a Component without harness connected
(Radio and Display Receiver Assembly)


Remove the radio and display receiver assembly.

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O7-5 (CNH1) - O7-6 (CNL1) Always 108 to 132 Ω



Result:
Proceed to
OK
NG



OK

5.CHECK COMBINATION METER ASSEMBLY

NG

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL
