WINDOW / GLASS  WINDSHIELD GLASS  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

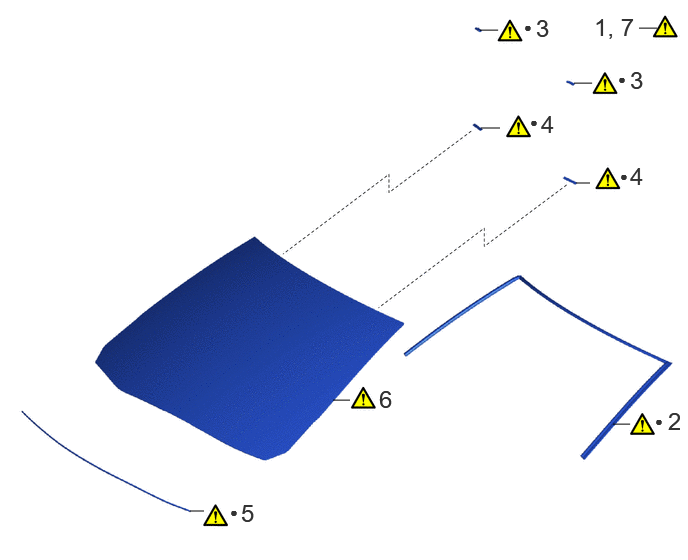

B581990N03
5,0.313 5.188,0.313 false 6.656,0.292 6.844,0.292 false 5.979,0.865 6.167,0.865 false 5.01,1.333 5.208,1.333 false 6,1.906 6.146,1.906 false 1.979,5.323 2.125,5.323 false 6.385,4.417 6.563,4.417 false 3.469,4.167 3.646,4.167 false 5.458,0.198 5.615,0.396 0.156,0.198 10 false ● 5.583,0.146 5.792,0.438 0.208,0.292 18 false 3 6.188,0.135 6.656,0.427 0.469,0.292 18 false 1, 7 6.563,0.688 6.771,0.979 0.208,0.292 18 false 3 6.438,0.74 6.594,0.938 0.156,0.198 10 false ● 5.521,1.188 5.677,1.385 0.156,0.198 10 false ● 5.635,1.146 5.844,1.438 0.208,0.292 18 false 4 6.563,1.688 6.771,1.979 0.208,0.292 18 false 4 6.458,1.75 6.615,1.948 0.156,0.198 10 false ● 6.823,4.302 6.979,4.5 0.156,0.198 10 false ● 6.958,4.24 7.135,4.531 0.177,0.292 18 false 2 2.396,5.25 2.552,5.448 0.156,0.198 10 false ● 2.51,5.198 2.688,5.49 0.177,0.292 18 false 5 3.948,4.01 4.125,4.302 0.177,0.292 18 false 6

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CLEAN WINDSHIELD GLASS SUB-ASSEMBLY - (Click here) - -
2 WINDSHIELD OUTSIDE MOULDING 75533G (Click here)
3 NO. 1 WINDSHIELD GLASS STOPPER 56115A (Click here) - -
4 NO. 2 WINDSHIELD GLASS STOPPER 56116C (Click here) - -
5 WINDOW GLASS ADHESIVE DAM 56117A (Click here) - -
6 WINDSHIELD GLASS SUB-ASSEMBLY - (Click here) - -
7 INSPECT FOR LEAK - (Click here) - -

● Non-reusable part - -

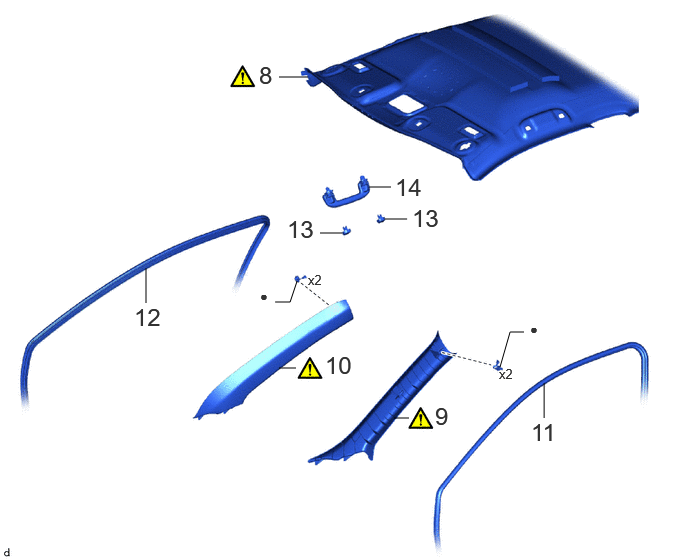

B635836N01
2.906,0.802 3.208,0.802 false 3.844,1.948 4.073,1.948 false 4.01,2.281 4.24,2.281 false 3.333,2.427 3.563,2.427 false 5.667,3.99 5.667,4.354 false 4.104,4.354 4.26,4.354 false 2.906,3.833 3.083,3.833 false 1.521,2.792 1.521,3.156 false 2.865,3.146 3.021,3.146 3.021,3.146 3.094,2.927 false 5.208,3.823 5.313,3.458 5.313,3.458 5.458,3.458 false 2.698,0.635 2.885,0.927 0.188,0.292 18 false 8 4.115,1.802 4.5,2.094 0.385,0.292 18 false 14 4.292,2.125 4.677,2.417 0.385,0.292 18 false 13 2.99,2.24 3.375,2.531 0.385,0.292 18 false 13 5.531,4.354 5.917,4.646 0.385,0.292 18 false 11 4.531,4.188 4.917,4.479 0.385,0.292 18 false 9 3.385,3.656 3.771,3.948 0.385,0.292 18 false 10 1.396,3.156 1.781,3.448 0.385,0.292 18 false 12 2.708,3 2.865,3.219 0.156,0.219 10 false ● 5.521,3.344 5.677,3.563 0.156,0.219 10 false ● 3.208,2.833 3.521,3.031 0.313,0.198 10 false x2 5.198,3.813 5.51,4.01 0.313,0.198 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

8 ROOF HEADLINING ASSEMBLY 63310 (Click here) - -
9 FRONT PILLAR GARNISH ASSEMBLY LH 62212B (Click here) - -
10 FRONT PILLAR GARNISH ASSEMBLY RH 62211U (Click here) - -
11 FRONT DOOR OPENING TRIM WEATHERSTRIP LH 62312B - - -
12 FRONT DOOR OPENING TRIM WEATHERSTRIP RH 62311B - - -
13 ASSIST GRIP COVER 74612 - - -
14 ASSIST GRIP SUB-ASSEMBLY 74610A - - -

● Non-reusable part - -

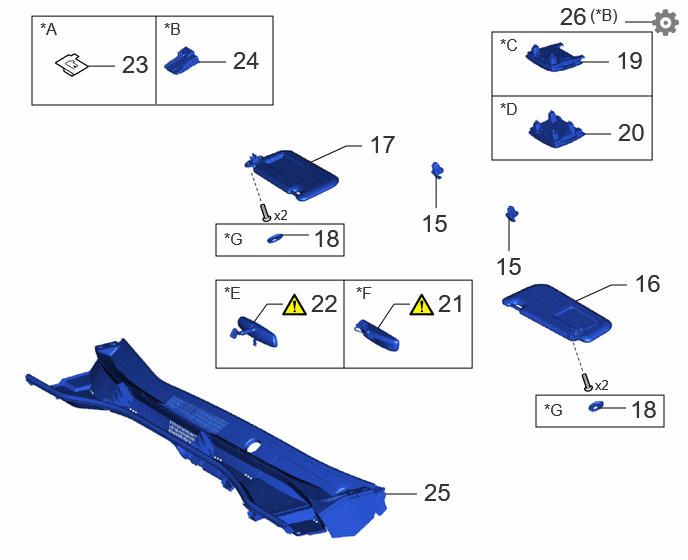

B691249N02
0.333,0.167 2.844,1.094 2.51,0.927 5.125,0.333 6.792,1.667 1.667,1.333 2.25,2.917 4.917,3.833 2.667,0.917 2.25,2.333 3.583,2.667 1.333,0.333 5.583,4.115 6.917,4.448 1.333,0.333 2.073,0.646 2.354,0.646 false 6.51,0.229 6.792,0.229 false 6.063,0.646 6.344,0.646 false 4.542,1.833 4.542,2.167 false 3.24,1.688 3.604,1.521 3.604,1.521 3.771,1.521 false 6.24,4.25 6.521,4.25 false 2.938,2.448 3.219,2.448 false 0.917,0.688 1.198,0.688 false 6.083,1.396 6.365,1.396 false 6,3.135 6.365,2.969 6.365,2.969 6.531,2.969 false 5.302,2.281 5.302,2.615 false 1.625,0.167 1.625,1.083 false 5.125,1 6.792,1 false 3.583,2.917 3.583,3.833 false 4.01,5.146 4.344,5.146 false 3.938,3.417 4.104,3.167 4.104,3.167 4.271,3.167 false 2.646,3.354 2.781,3.167 2.781,3.167 2.948,3.167 false 2.427,0.479 2.823,0.802 0.396,0.323 18 false 24 5.833,0.021 6.156,0.313 0.323,0.292 18 false 26 6.438,1.229 6.823,1.521 0.385,0.292 18 false 20 4.385,2.177 4.708,2.469 0.323,0.292 18 false 15 5.156,2.625 5.479,2.917 0.323,0.292 18 false 15 6.604,2.802 6.927,3.094 0.323,0.292 18 false 16 3.844,1.354 4.167,1.646 0.323,0.292 18 false 17 3.26,2.333 3.583,2.625 0.323,0.292 18 false 18 3.24,3.01 3.563,3.302 0.323,0.292 18 false 22 0.417,0.198 0.75,0.417 0.333,0.219 12 false *A 6.146,0.052 6.917,0.333 0.771,0.281 12 false (*B) 1.271,0.521 1.667,0.844 0.396,0.323 18 false 23 6.417,0.479 6.802,0.771 0.385,0.292 18 false 19 6.563,4.115 6.885,4.406 0.323,0.292 18 false 18 1.708,0.198 2.042,0.417 0.333,0.219 12 false *B 5.208,0.365 5.542,0.583 0.333,0.219 12 false *C 5.208,1.031 5.542,1.25 0.333,0.219 12 false *D 2.333,2.948 2.667,3.167 0.333,0.219 12 false *E 3.708,2.948 4.042,3.167 0.333,0.219 12 false *F 4.563,3.01 4.885,3.302 0.323,0.292 18 false 21 4.417,4.979 4.74,5.271 0.323,0.292 18 false 25 2.854,2.156 3.167,2.354 0.313,0.198 10 false x2 6.198,3.927 6.51,4.125 0.313,0.198 10 false x2 2.333,2.385 2.667,2.604 0.333,0.219 12 false *G 5.667,4.167 6,4.385 0.333,0.219 12 false *G

Procedure Part Name Code
Z101186

Z101188

Z101187

15 VISOR HOLDER 74348 - - -
16 VISOR ASSEMBLY LH 74320 - - -
17 VISOR ASSEMBLY RH 74310 - - -
18 VISOR BRACKET COVER 74325 - - -
19 MAP LIGHT ASSEMBLY 81260A - - -
20 MAP LIGHT ASSEMBLY 81260A - - -
21 INNER REAR VIEW MIRROR ASSEMBLY 87810 (Click here) - -
22 INNER REAR VIEW MIRROR ASSEMBLY 87810 (Click here) - -
23 TOLL COLLECTION ECU ASSEMBLY 86980 - - -
24 INSTALL FORWARD RECOGNITION CAMERA 8646C - - -
25 COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY 55708 - - -
26 ADJUST FORWARD RECOGNITION CAMERA 8646C - - (Click here)

*A w/ Electronic Toll Collection System *B w/ Pre-collision System
*C w/ Sliding Roof *D w/o Sliding Roof
*E w/o EC Mirror *F w/ EC Mirror
*G w/ Cover - -

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the front camera system or automatic high beam system may not operate properly due to a difference in the transmissivity or black ceramic border.

·

Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.



PROCEDURE

Hide 1.CLEAN WINDSHIELD GLASS SUB-ASSEMBLY

a.

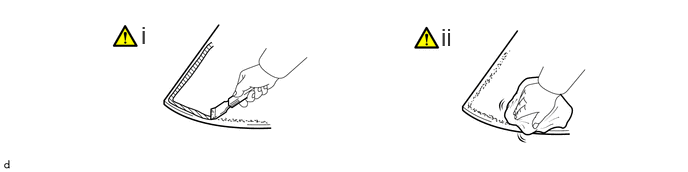

B590207N01
1.469,0.219 1.75,0.521 0.281,0.302 18 false i 4.594,0.24 4.875,0.542 0.281,0.302 18 false ii

i.

When reusing the windshield glass sub-assembly.

1. Using a scraper, remove any remaining adhesive dam and adhesive residue from the windshield glass sub-assembly.

NOTICE:

Be careful not to damage the windshield glass sub-assembly.



ii.

Clean the outer circumference of the windshield glass sub-assembly with a non-residue solvent.

NOTICE:
·

Do not touch the windshield glass sub-assembly surface after cleaning it.

·

Even if using a new windshield glass sub-assembly, clean it with a non-residue solvent.





Hide 75533G 2.INSTALL WINDSHIELD OUTSIDE MOULDING

a.

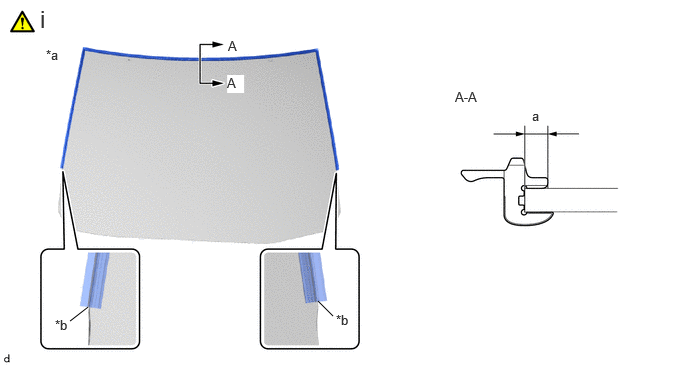

B582003C01
0.729,3.344 0.917,3.198 false 3.469,3.292 3.313,3.135 false 0.479,0.49 0.792,0.646 0.313,0.156 10 false *a 0.573,3.302 0.833,3.5 0.26,0.198 10 false *b 0.417,0.052 0.719,0.354 0.302,0.302 18 false i 2.375,0.396 2.594,0.573 0.219,0.177 10 false A 2.365,0.781 2.542,0.969 0.177,0.188 10 true A 3.5,3.25 3.76,3.448 0.26,0.198 10 false *b 5.542,1.125 5.802,1.323 0.26,0.198 10 false a 4.74,0.927 5.083,1.104 0.344,0.177 10 false A-A
*a Back Side of Windshield Glass Sub-assembly *b R End


i.

When reusing the windshield glass sub-assembly.

1. Using a brush or sponge, coat the installation area of the windshield outside moulding with glass primer.

NOTICE:
·

Do not apply too much glass primer.

·

Allow the glass primer to dry for 3 minutes or more.

·

Throw away any leftover glass primer.



HINT:

If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.


2. Install a new windshield outside moulding to the windshield glass sub-assembly as shown in the illustration.

Standard Dimension:
Area Dimension Area Dimension
a 4.5 mm (0.177 in.) - -




Hide 56115A 3.INSTALL NO. 1 WINDSHIELD GLASS STOPPER

a.

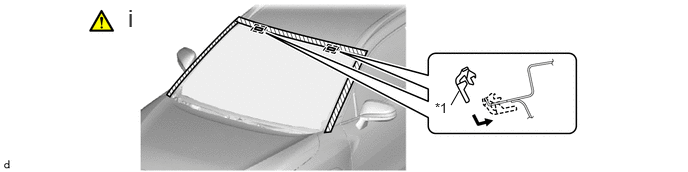

B582001C01
4.698,1.094 4.781,0.948 false 4.531,1.042 4.844,1.198 0.313,0.156 10 false *1 1.333,0.042 1.479,0.333 0.146,0.292 18 false i
*1 No. 1 windshield glass stopper - -


i.

Install 2 new No. 1 windshield glass stoppers to the vehicle body as shown in the illustration.

HINT:

Only 2-piece type windshield glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.




Hide 56116C 4.INSTALL NO. 2 WINDSHIELD GLASS STOPPER

a.

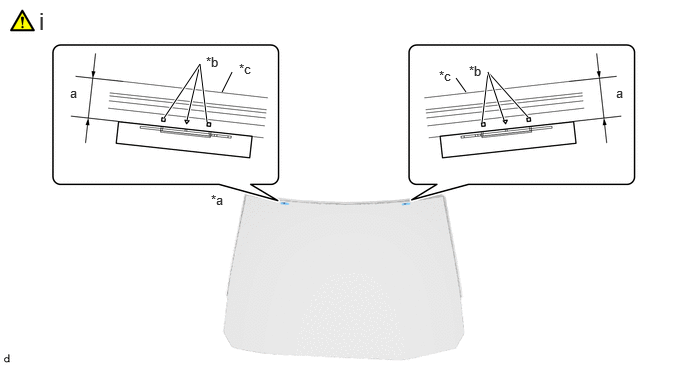

B635897C01
1.948,1.25 2.083,0.667 true 2.313,0.958 2.417,0.75 false 4.854,0.958 4.75,0.813 false 5.021,1.271 5.083,0.75 5.083,0.75 5.5,1.219 true 5.25,1.25 5.083,0.75 true 1.708,1.229 2.083,0.667 2.083,0.667 2.156,1.271 true 2.198,2 2.51,2.156 0.313,0.156 10 false *a 2.49,0.635 2.802,0.792 0.313,0.156 10 false *c 0.406,0.073 0.635,0.365 0.229,0.292 18 false i 0.729,0.885 1.042,1.042 0.313,0.156 10 false a 2.146,0.563 2.458,0.719 0.313,0.156 10 false *b 4.573,0.708 4.885,0.865 0.313,0.156 10 false *c 4.885,0.656 5.198,0.813 0.313,0.156 10 false *b 6.417,0.885 6.729,1.042 0.313,0.156 10 false a
*a Back Side of Windshield Glass Sub-assembly *b Ceramic Notch
*c Windshield Outside Moulding Edge Side - -


i.

Install the No. 2 windshield glass stopper by below procedure.

1. Using a brush or sponge, coat the installation area of the No. 2 windshield glass stoppers with glass primer.

NOTICE:
·

Do not apply too much glass primer.

·

Allow the glass primer to dry for 3 minutes or more.

·

Throw away any leftover glass primer.



HINT:

If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.


2. Install 2 new No. 2 windshield glass stoppers to the windshield glass sub-assembly as shown in the illustration.

Standard Dimension:
Area Dimension Area Dimension
a 15.1 mm (0.594 in.) - -


HINT:

Only 2-piece type windshield glass stoppers are provided as supply parts. Use 2-piece type stoppers as replacements even if 1-piece type stoppers were originally installed.




Hide 56117A 5.INSTALL WINDOW GLASS ADHESIVE DAM

a.

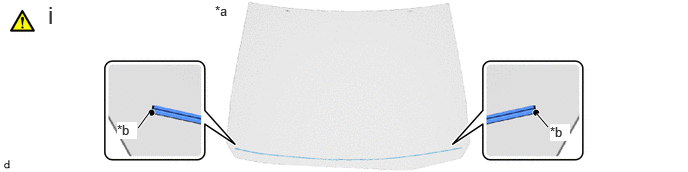

B582002C01
1.438,1.333 1.552,1.177 true 5.708,1.323 5.594,1.188 true 2.24,0.031 2.552,0.188 0.313,0.156 10 false *a 1.219,1.271 1.427,1.448 0.208,0.177 10 true *b 0.5,0.01 0.75,0.292 0.25,0.281 18 false i 5.729,1.292 5.938,1.469 0.208,0.177 10 true *b
*a Back Side of Windshield Glass Sub-assembly *b Ceramic Notch


i.

When reusing the windshield glass sub-assembly.

1. Using a brush or sponge, coat the installation area of the window glass adhesive dam with glass primer.

NOTICE:
·

Do not apply too much glass primer.

·

Allow the glass primer to dry for 3 minutes or more.

·

Throw away any leftover glass primer.



HINT:

If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.


2. Install a new window glass adhesive dam to the windshield glass sub-assembly as shown in the illustration.



Hide 6.INSTALL WINDSHIELD GLASS SUB-ASSEMBLY

a.

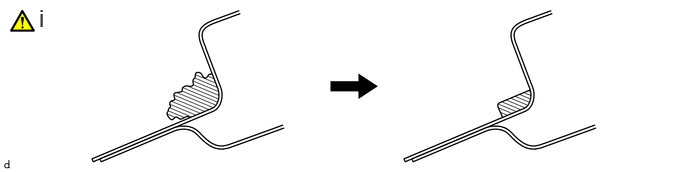

B582228C01
0.406,0.042 0.688,0.396 0.281,0.354 18 false i
V100155

Adhesive - -


i.

Clean and shape the contact surface of the vehicle body by the below procedure.

1. Using a knife, cut away excess adhesive on the contact surface of the vehicle body as shown in the illustration.

NOTICE:

Leave as much adhesive on the vehicle body as possible.


2. Clean the contact surface of the vehicle body with a piece of cloth saturated with non-residue solvent.



b.
B582004C01
3.219,1.385 3.615,1.323 3.615,1.323 3.333,1.198 true 3.927,0.865 4.115,0.667 4.115,0.667 3.375,0.75 true 1.969,0.063 2.25,0.417 0.281,0.354 18 false i 3.615,1.219 3.813,1.417 0.198,0.198 10 true *a 4.135,0.542 4.323,0.719 0.188,0.177 10 true *b
*a Matchmark *b Suction Cup


i.

Prepare to install the windshield glass sub-assembly by the below procedure.

1. Using suction cups, place the windshield glass sub-assembly in the correct position.

2. Check that the whole contact surface of the windshield glass sub-assembly rim is perfectly even.

3. Align the matchmarks on the windshield glass sub-assembly and vehicle body.

NOTICE:

Check that the windshield glass stoppers are engaged to the vehicle body correctly.


4. Remove the windshield glass sub-assembly.

5. Using a brush, coat the installation surface on the vehicle body with body primer.

NOTICE:
·

Do not coat the adhesive with body primer.

·

Do not apply too much body primer.

·

Allow the body primer to dry for 3 minutes or more.

·

Throw away any leftover body primer.



HINT:

If an area other than specified is coated by accident, wipe off the body primer with a clean piece of cloth before it dries.




c.
B590549C01
4.375,4.063 4.792,4.177 false 4.198,3.958 4.5,4.177 0.302,0.219 10 false *1 0.552,1.167 0.865,1.323 0.313,0.156 10 false *a 0.49,0.125 0.75,0.458 0.26,0.333 18 false i 4.802,0.208 5.135,0.417 0.333,0.208 10 false A-A 5.594,0.094 5.906,0.25 0.313,0.156 10 false a 4.823,1.208 5.156,1.417 0.333,0.208 10 false B-B 5.594,1.115 5.906,1.271 0.313,0.156 10 false b 4.792,2.417 5.125,2.625 0.333,0.208 10 false C-C 5.469,2.292 5.781,2.448 0.313,0.156 10 false c 4.292,3.667 4.625,3.875 0.333,0.208 10 false D-D 5.063,3.604 5.375,3.76 0.313,0.156 10 false d 2.938,3.198 3.104,3.365 0.167,0.167 10 true D 2.854,2.844 3.021,3.01 0.167,0.167 10 true D 3.135,1.885 3.302,2.052 0.167,0.167 10 true C 3.479,1.885 3.646,2.052 0.167,0.167 10 true C 3.01,1.573 3.177,1.74 0.167,0.167 10 true A 2.958,1.229 3.125,1.396 0.167,0.167 10 true A 2.219,1.271 2.385,1.438 0.167,0.167 10 true B 2.229,1.635 2.396,1.802 0.167,0.167 10 true B
*1 Window Glass Adhesive Dam - -
*a Back Side of Windshield Glass Sub-assembly - -
V100155

Glass Primer - -


i.

Using a brush or sponge, coat the adhesive application area with glass primer as shown in the illustration.

Standard Dimension:
Area Dimension Area Dimension
a 8.0 mm (0.315 in.) or more b 9.1 mm (0.358 in.) or more
c 8.5 mm (0.335 in.) or more d 19 mm (0.748 in.) or more


NOTICE:
·

Do not apply too much glass primer.

·

Allow the glass primer to dry for 3 minutes or more.

·

Throw away any leftover glass primer.



HINT:
·

Apply glass primer to the ceramic notches.

·

If an area other than specified is coated by accident, wipe off the glass primer with a clean piece of cloth before it dries.





d.

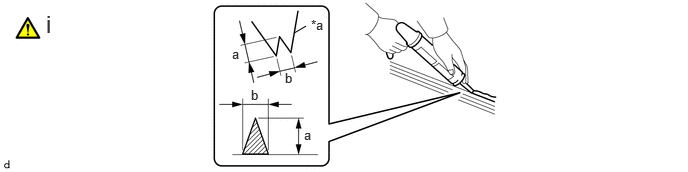

B582006C01
3.188,0.271 3.063,0.344 false 3.24,0.177 3.552,0.333 0.313,0.156 10 false *a 0.479,0.104 0.781,0.406 0.302,0.302 18 false i 2.417,0.479 2.729,0.635 0.313,0.156 10 false a 2.615,0.906 2.927,1.063 0.313,0.156 10 false b 2.969,0.729 3.281,0.885 0.313,0.156 10 false b 3.167,1.323 3.479,1.479 0.313,0.156 10 false a
*a Cartridge Nozzle - -
V100155

Adhesive - -


i.

Prepare to apply adhesive to the windshield glass sub-assembly by the below procedure.

Adhesive:

Toyota Genuine Windshield Glass Adhesive (High modulus type) or equivalent


1. Cut off the tip of the cartridge nozzle as shown in the illustration.

Standard Dimension:
Area Dimension Area Dimension
a 12 to 15 mm (0.472 to 0.591 in.) b 8.0 to 11 mm (0.315 to 0.433 in.)


2. Load the sealer gun with the cartridge.



e.

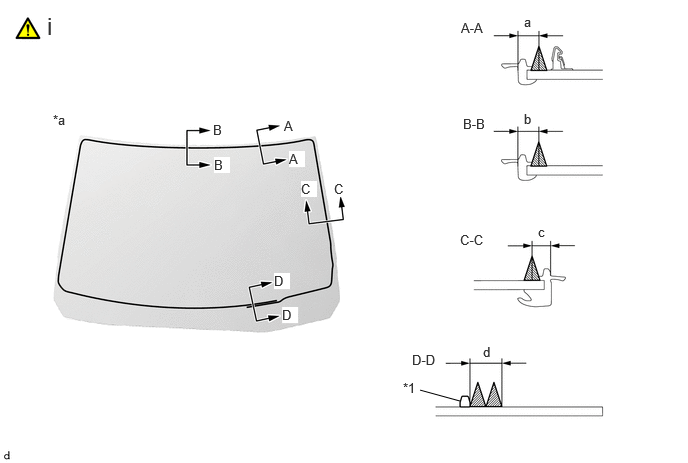

B590550C01
4.375,4.063 4.792,4.177 false 4.198,3.958 4.5,4.177 0.302,0.219 10 false *1 0.552,1.167 0.865,1.323 0.313,0.156 10 false *a 0.49,0.125 0.75,0.458 0.26,0.333 18 false i 4.802,0.208 5.135,0.417 0.333,0.208 10 false A-A 5.458,0.146 5.771,0.302 0.313,0.156 10 false a 4.823,1.208 5.156,1.417 0.333,0.208 10 false B-B 5.458,1.156 5.771,1.313 0.313,0.156 10 false b 4.792,2.417 5.125,2.625 0.333,0.208 10 false C-C 5.604,2.333 5.917,2.49 0.313,0.156 10 false c 4.292,3.667 4.625,3.875 0.333,0.208 10 false D-D 5.031,3.583 5.344,3.74 0.313,0.156 10 false d 2.938,3.198 3.104,3.365 0.167,0.167 10 true D 2.854,2.844 3.021,3.01 0.167,0.167 10 true D 3.135,1.885 3.302,2.052 0.167,0.167 10 true C 3.479,1.885 3.646,2.052 0.167,0.167 10 true C 3.01,1.573 3.177,1.74 0.167,0.167 10 true A 2.958,1.229 3.125,1.396 0.167,0.167 10 true A 2.219,1.271 2.385,1.438 0.167,0.167 10 true B 2.229,1.635 2.396,1.802 0.167,0.167 10 true B
*1 Window Glass Adhesive Dam - -
*a Back Side of Windshield Glass Sub-assembly - -
V100155

Adhesive - -


i.

Apply adhesive to the windshield glass sub-assembly as shown in the illustration.

Standard Dimension:
Area Dimension Area Area
a 10.5 mm (0.413 in.) b 10.5 mm (0.413 in.)
c 9.0 mm (0.354 in.) d 16 mm (0.630 in.)




f.

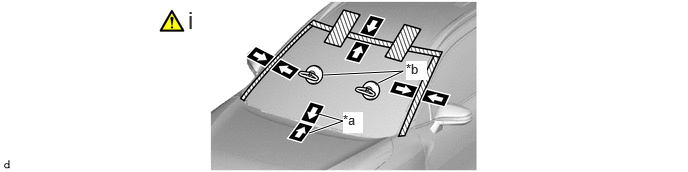

B582008C01
3.219,1.385 3.573,1.26 3.573,1.26 3.323,1.188 true 3.938,0.865 4.198,0.74 4.198,0.74 3.365,0.781 true 1.958,0.063 2.24,0.417 0.281,0.354 18 false i 3.573,1.167 3.781,1.385 0.208,0.219 10 true *a 4.229,0.635 4.448,0.833 0.219,0.198 10 true *b
*a Matchmark *b Suction Cup


i.

Install the windshield glass sub-assembly by the below procedure.

1. Using suction cups, position the windshield glass sub-assembly so that the matchmarks are aligned, and press it in gently along the rim.

NOTICE:
·

Check that the windshield glass stoppers are engaged to the vehicle body correctly.

·

Check the clearance between the vehicle body and windshield glass sub-assembly.



2. Lightly press the outer surface of the windshield glass sub-assembly to ensure that the windshield glass sub-assembly is securely fit to the vehicle body.

HINT:

Press the glass with a force of 98 N (10 kgf, 22.0 lbf) or more.


3. Using a scraper, remove any excess or protruding adhesive.

4. Hold the windshield glass sub-assembly using protective tape until the applied adhesive becomes hard.

HINT:

Follow the instructions supplied by the adhesive manufacturer or in the corresponding instruction manual for the minimum amount of time necessary to wait before driving the vehicle.




Hide 7.INSPECT FOR LEAK

a.

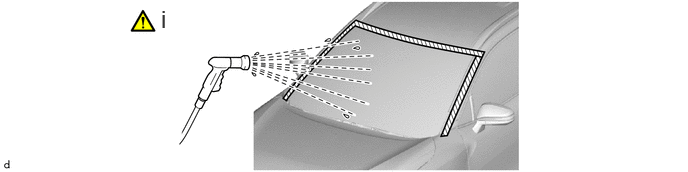

B582009N01
1.677,0.052 1.958,0.406 0.281,0.354 18 false i

i.

Inspect for leaks by the below procedure.

1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.

2. If water leaks into the cabin, allow the water to dry and add adhesive.

3. Remove the protective tape.



Hide 63310 8.INSTALL ROOF HEADLINING ASSEMBLY

Z101186

NOTICE:

Do not damage the roof headlining assembly or vehicle interior.



a.

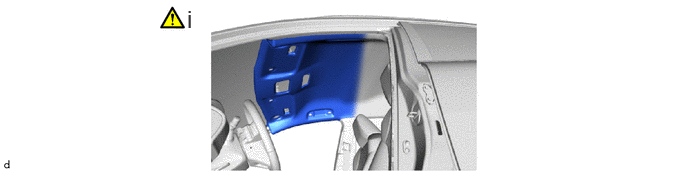

B590546N02
1.948,0.052 2.229,0.406 0.281,0.354 18 false i

i.

Return the front section of the roof headlining assembly to its original position.



Hide 62212B 9.INSTALL FRONT PILLAR GARNISH ASSEMBLY LH

Z101186

Click here(Click here)

Hide 62211U 10.INSTALL FRONT PILLAR GARNISH ASSEMBLY RH

Hide 62312B 11.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Hide 62311B 12.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Hide 74610A 14.INSTALL ASSIST GRIP SUB-ASSEMBLY

Hide 74348 15.INSTALL VISOR HOLDER

Hide 74320 16.INSTALL VISOR ASSEMBLY LH

Hide 74310 17.INSTALL VISOR ASSEMBLY RH

Hide 74325 18.INSTALL VISOR BRACKET COVER (w/ Cover)

Hide 81260A 19.INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

Hide 81260A 20.INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)

Hide 87810 21.INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/ EC Mirror)

Z101186

Click here(Click here)

Hide 87810 22.INSTALL INNER REAR VIEW MIRROR ASSEMBLY (w/o EC Mirror)

Z101186

Click here(Click here)

Hide 86980 23.INSTALL TOLL COLLECTION ECU ASSEMBLY (w/ Electronic Toll Collection System)

Click hereAudio / Visual / Telematics>CELLULAR COMMUNICATION>TOLL COLLECTION ECU>INSTALLATION

Hide 8646C 26.ADJUST FORWARD RECOGNITION CAMERA (w/ Pre-collision System)

a.

If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

HINT:

Forward recognition camera learning can be performed by using either One Time Recognition or Driving Adjustment.

·

One Time Recognition:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>TARGET ADJUSTMENT(ONE TIME RECOGNITION)

·

Driving Adjustment:

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>DRIVING ADJUSTMENT
