RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505960 FRONT WIPER MOTOR A

WIPER / WASHER  FRONT WIPER MOTOR  INSTALLATION


CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

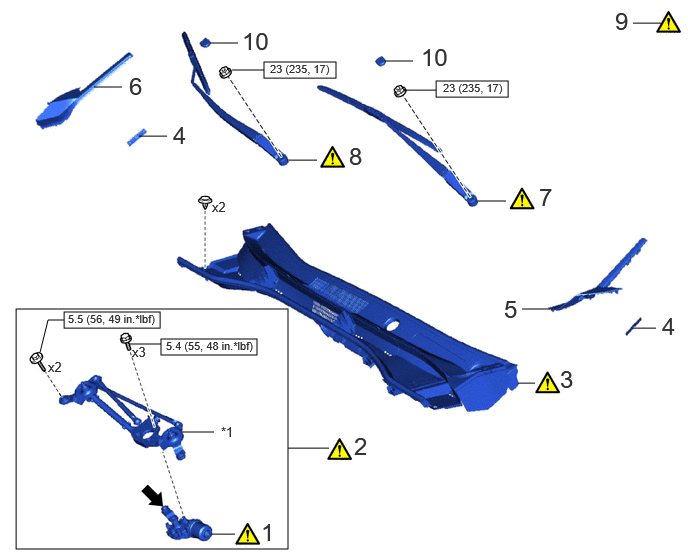

B642332N01
2.75,0.646 3.5,0.813 0.75,0.167 4.542,0.844 5.292,1.01 0.75,0.167 0.667,3.25 1.667,3.417 1,0.167 1.677,3.531 2.677,3.698 1,0.167 0.167,3.219 3,5.719 2.833,2.5 0.979,0.906 1.271,0.906 false 1.448,1.417 1.74,1.417 false 3.01,1.667 3.302,1.667 false 2.188,0.448 2.479,0.448 false 2.417,0.729 2.75,0.729 false 4.01,0.635 4.302,0.635 false 4.208,0.938 4.542,0.938 false 4.979,2.094 5.271,2.094 false 5.438,3.219 5.729,3.219 false 6.594,3.417 6.833,3.417 false 5.396,3.99 5.573,3.99 false 3,4.667 3.427,4.667 false 0.417,3.667 0.5,3.333 0.5,3.333 0.667,3.333 false 6.594,0.24 6.885,0.24 false 1.344,3.583 1.677,3.583 false 2.198,5.563 2.448,5.563 false 1.896,4.5 2.229,4.5 false 2.813,0.646 3.563,0.885 0.75,0.24 8 false 23 (235, 17) 4.615,0.844 5.365,1.083 0.75,0.24 8 false 23 (235, 17) 0.708,3.25 1.698,3.448 0.99,0.198 8 false 5.5 (56, 49 in.*lbf) 3.688,4.5 3.948,4.802 0.26,0.302 18 false 2 5.833,3.802 6.094,4.104 0.26,0.302 18 false 3 6.896,3.25 7.156,3.552 0.26,0.302 18 false 4 5.25,3.073 5.51,3.375 0.26,0.302 18 false 5 5.615,1.906 5.875,2.208 0.26,0.302 18 false 7 6.406,0.073 6.667,0.375 0.26,0.302 18 false 9 4.385,0.448 4.729,0.729 0.344,0.281 18 false 10 3.635,1.479 3.896,1.781 0.26,0.302 18 false 8 2.521,0.281 2.865,0.563 0.344,0.281 18 false 10 1.802,1.26 2.063,1.563 0.26,0.302 18 false 4 1.344,0.75 1.604,1.052 0.26,0.302 18 false 6 2.208,2.073 2.458,2.25 0.25,0.177 10 false x2 0.5,3.74 0.75,3.917 0.25,0.177 10 false x2 1.729,3.531 2.833,3.729 1.104,0.198 8 false 5.4 (55, 48 in.*lbf) 1.375,3.583 1.688,3.781 0.313,0.198 10 false x3 2.719,5.396 3,5.75 0.281,0.354 18 false 1 2.302,4.417 2.615,4.615 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 WINDSHIELD WIPER MOTOR ASSEMBLY 85110 (Click here) - -
2 WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY - (Click here) - -
3 COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY 55708 (Click here) - -
4 WINDSHIELD OUTSIDE MOULDING CLIP 75545M - - -
5 NO. 2 FRONT SIDE PANEL PROTECTOR LH 53824D - - -
6 NO. 2 FRONT SIDE PANEL PROTECTOR RH 53823G - - -
7 FRONT WIPER ARM AND BLADE ASSEMBLY LH - (Click here) - -
8 FRONT WIPER ARM AND BLADE ASSEMBLY RH - (Click here) - -
9 INSPECT FRONT WIPER ARM AND BLADE ASSEMBLY - (Click here) - -
10 FRONT WIPER ARM HEAD CAP 85292B - - -

*1 WINDSHIELD WIPER LINK ASSEMBLY - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

MP grease

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.


PROCEDURE

Hide 85110 1.INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY

a.

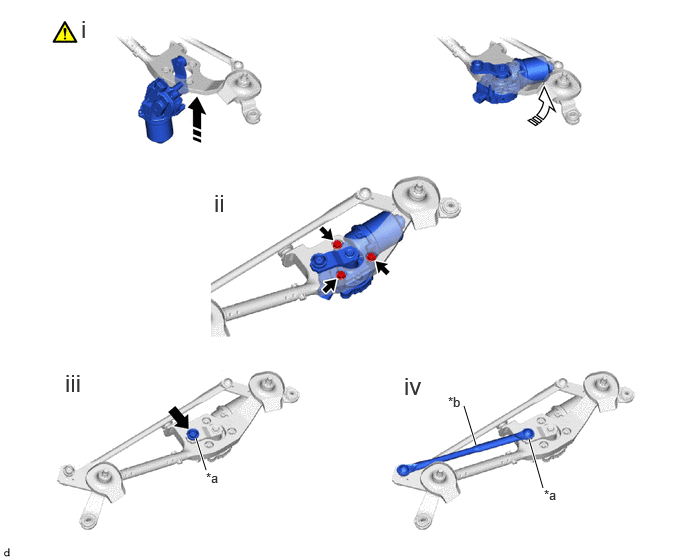

B635901C01
2.042,4.563 2.146,4.896 true 5.656,5.083 5.51,4.573 true 4.958,4.635 4.833,4.229 true 0.844,0.156 1.125,0.51 0.281,0.354 18 false i 2.229,1.969 2.781,2.323 0.552,0.354 18 false ii 0.677,3.844 1.51,4.198 0.833,0.354 18 false iii 4.208,3.875 4.76,4.229 0.552,0.354 18 false iv 2.146,4.896 2.458,5.094 0.313,0.198 10 false *a 5.667,5.073 5.979,5.271 0.313,0.198 10 false *a 4.667,4.104 4.979,4.302 0.313,0.198 10 false *b
*a Pivot of Windshield Wiper Motor Assembly *b No. 1 Windshield Wiper Link Rod
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)
V100135

MP grease - -


i.

Temporarily install the windshield wiper motor assembly to the wiper link assembly as shown in the illustration.


ii.

Install the windshield wiper motor assembly with the 3 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


iii.

Apply MP grease to the pivot of the windshield wiper motor assembly.


iv.

Install the No. 1 windshield wiper link rod to the pivot of the windshield wiper motor assembly.



Hide 2.INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Z101186

NOTICE:

Be careful not to damage the windshield glass when installing the windshield wiper motor and link assembly.



Torque:
5.5 N*m (56 kgf*cm, 49 in.*lbf)

Hide 55708 3.INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Z101186

NOTICE:

When installing the cowl top ventilator louver sub-assembly, it may contact the brake master cylinder reservoir filler cap assembly and cause it to fall off. Check the installation condition of the brake master cylinder reservoir filler cap assembly after installing the cowl top ventilator louver sub-assembly.



Hide 75545M 4.INSTALL WINDSHIELD OUTSIDE MOULDING CLIP

a.
B582187


b.

Use the same procedure as for the opposite side.


Hide 53824D 5.INSTALL NO. 2 FRONT SIDE PANEL PROTECTOR LH

Hide 53823G 6.INSTALL NO. 2 FRONT SIDE PANEL PROTECTOR RH

Hide 7.INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

a.
B625914C01
5.365,2.458 5.292,2.25 true 2.333,1.208 2.948,0.969 true 2.792,2.26 3.25,2.448 true 5.375,2.448 5.573,2.625 0.198,0.177 10 true *b 2.469,0.281 2.813,0.604 0.344,0.323 18 false i 3.771,0.156 4.406,0.49 0.635,0.333 18 false iii, iv 1.542,1.615 1.885,1.938 0.344,0.323 18 false ii 5.01,2.031 5.146,2.219 0.135,0.188 10 true A 5,2.271 5.135,2.458 0.135,0.188 10 true A 2.99,0.854 3.302,1.052 0.313,0.198 10 false *a 3.313,2.406 3.625,2.604 0.313,0.198 10 false *a
*a Serration *b Alignment Mark


i.

When reusing the front wiper arm and blade assembly LH.

1. Clean the front wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.



ii.

When reusing the windshield wiper motor and link assembly.

1. Clean the wiper pivot serrations with a wire brush.

NOTICE:

Do not grind down the wiper pivot serrations.



iii.

Set the automatic stop position by the below procedure.

1. Turn the ignition switch ON.

2. Operate the windshield wiper motor assembly and stop the windshield wiper motor and link assembly at the automatic stop position.

3. Turn the ignition switch off.


iv.

Install the front wiper arm and blade assembly LH with the nut to the position shown in the illustration.

HINT:

Hold the wiper arm by hand while tightening the nut.


Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)

Reference Measurement:
Area Measurement Area Measurement
A 10 mm (0.394 in.) - -




Hide 8.INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

a.

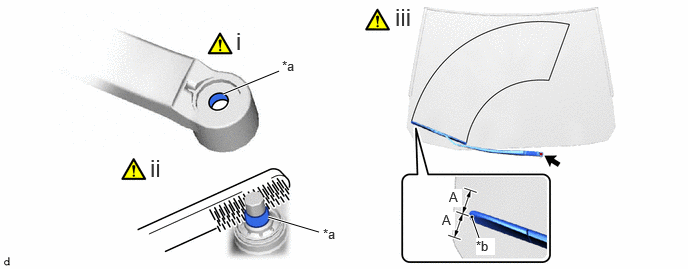

B625912C01
4.99,2.479 4.917,2.271 true 2.323,0.979 2.906,0.74 true 2.792,2.26 3.323,2.417 true 4.958,2.479 5.156,2.656 0.198,0.177 10 true *b 2.458,0.281 2.802,0.604 0.344,0.323 18 false i 4.115,0.031 4.458,0.354 0.344,0.323 18 false iii 1.563,1.604 1.906,1.927 0.344,0.323 18 false ii 4.677,1.969 4.813,2.156 0.135,0.188 10 true A 4.604,2.208 4.74,2.396 0.135,0.188 10 true A 2.938,0.604 3.25,0.802 0.313,0.198 10 false *a 3.365,2.354 3.677,2.552 0.313,0.198 10 false *a
*a Serration *b Alignment Mark


i.

When reusing the front wiper arm and blade assembly RH.

1. Clean the front wiper arm serrations to remove any burrs, dirt, etc.

NOTICE:

Do not grind down the wiper arm serrations.



ii.

When reusing the windshield wiper motor and link assembly.

1. Clean the wiper pivot serrations with a wire brush.

NOTICE:

Do not grind down the wiper pivot serrations.



iii.

Install the front wiper arm and blade assembly RH with the nut to the position as shown in the illustration.

HINT:

Hold the wiper arm by hand while tightening the nut.


Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)

Reference Measurement:
Area Measurement Area Measurement
A 10 mm (0.394 in.) - -




Hide 85292B 10.INSTALL FRONT WIPER ARM HEAD CAP
