CELLULAR COMMUNICATION  TOLL COLLECTION ECU  INSTALLATION


CAUTION / NOTICE / HINT

E485017N02
1.771,2.615 2.188,2.615 false 3.135,1.302 3.479,1.302 false 4.656,2.427 5,2.427 false 3.74,1.708 4.083,1.708 false 5.75,1.719 6.25,1.719 false 6.104,0.385 6.448,0.385 false 3.552,1.198 3.833,1.552 0.281,0.354 18 false 6 2.25,2.49 2.531,2.844 0.281,0.354 18 false 5 5.958,0.25 6.24,0.604 0.281,0.354 18 false 1 3.521,1.563 3.802,1.917 0.281,0.354 18 false 2 5.083,2.292 5.365,2.646 0.281,0.354 18 false 4 6.615,1.563 6.896,1.917 0.281,0.354 18 false 3 3.333,1.594 3.615,1.948 0.281,0.354 10 false ●

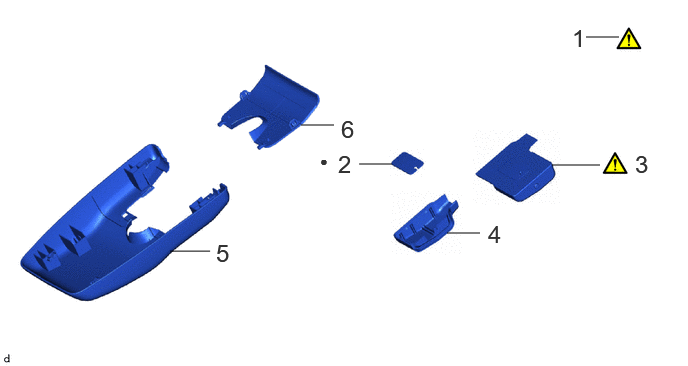

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 TOLL COLLECTION ECU SEAL TAPE F1969B (Click here) - -
3 TOLL COLLECTION ECU ASSEMBLY 86980 (Click here) - -
4 TOLL COLLECTION COVER 86981 - - -
5 NO. 1 FORWARD RECOGNITION COVER 86466D - - -
6 NO. 2 FORWARD RECOGNITION COVER 86466E - - -

● Non-reusable part - -

PROCEDURE

Hide 1. PRECAUTION

Z101186

When installing the toll collection ECU assembly and toll collection ECU seal tape:
HINT:

When installing the toll collection ECU assembly or toll collection ECU seal tape, heat the toll collection ECU assembly, toll collection ECU seal tape or windshield glass using a hair dryer.


NOTICE:
·

The most appropriate temperature for installing the toll collection ECU seal tape is 15 °C (59 °F).

·

When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the toll collection ECU assembly surface (installation surface of the toll collection ECU assembly) and tape to between 20 and 30°C (68 and 86°F) using a hair dryer.

·

When the temperature is low, the tape turns stiff and falls off easily. When the temperature is high, the tape loses elasticity.

·

Do not heat the toll collection ECU assembly excessively.




CAUTION:
B569952C03

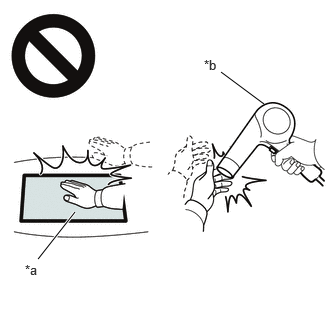

0.396,2.698 0.781,2.208 true 2.75,1.083 2.302,0.75 false 0.26,2.729 0.573,2.927 0.313,0.198 10 false *a 2.125,0.594 2.438,0.792 0.313,0.198 10 false *b
*a Heated Part
*b Hair Dryer


Using a hair dryer, heat the installation area.
·

Do not touch the hair dryer or the heated portions of the components.

·

Touching the hair dryer could result in burns.

·

Touching the heated portions of the components and remaining in contact for a long time could result in burns.



Hide F1969B 2.INSTALL TOLL COLLECTION ECU SEAL TAPE

HINT:

When reusing the toll collection ECU assembly


a.

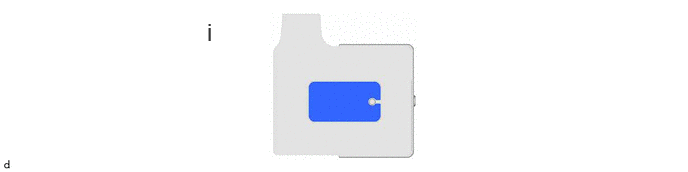

E485018N01
2.156,0.188 2.438,0.542 0.281,0.354 18 false i

i.

Install the toll collection ECU seal tape by the below procedure.

1. Clean the toll collection ECU assembly with a piece of cloth.

2. Remove one side of the release paper of new toll collection ECU seal tape.

HINT:

Do not touch the toll collection ECU seal tape surfaces.


3. Install the toll collection ECU seal tape to the toll collection ECU assembly as shown in the illustration.

NOTICE:

Attach securely so that the toll collection ECU seal tape will not shift or peel off.




Hide 86980 3.INSTALL TOLL COLLECTION ECU ASSEMBLY

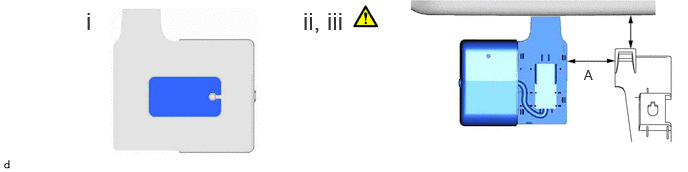

a.
E485019N02
3.156,0.073 3.781,0.49 0.625,0.417 18 false ii, iii 6.083,0.698 6.344,1.01 0.26,0.313 10 false A 0.896,0.073 1.135,0.365 0.24,0.292 18 false i

i.

Install the toll collection ECU assembly by the below procedure.

1. Clean the windshield glass with a piece of cloth.

HINT:

Make sure that there is no toll collection ECU seal tape residue remaining on the windshield glass. If there is, remove the residue.


NOTICE:
·

Installing the toll collection ECU assembly with some double-sided tape remaining may cause poor adhesion. Perform this procedure until sufficiently removed it.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.



2. Remove the release paper.

HINT:

Do not touch the toll collection ECU seal tape surfaces.



ii.

Install the toll collection ECU assembly as shown in the illustration.

Standard Clearance:
Area Measurement
A 38.9 to 44.9 mm (1.5315 to 1.7677 in.)


HINT:

Press the toll collection ECU assembly with a force of 40 N (4.0 kgf) for 5 seconds to securely install it to the windshield glass.



iii.

Connect the connector.



Hide 86981 4.INSTALL TOLL COLLECTION COVER

Hide 86466D 5.INSTALL NO. 1 FORWARD RECOGNITION COVER

Hide 86466E 6.INSTALL NO. 2 FORWARD RECOGNITION COVER
