SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B003811  Second Row Right Side Airbag Deployment Control Circuit Short to Ground


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B003811 Second Row Right Side Airbag Deployment Control Circuit Short to Ground One of the following conditions is met:
·

The airbag ECU assembly detects a short to ground in the rear side squib RH circuit for 0.5 seconds.

·

Rear side squib RH (rear seat airbag assembly RH) malfunction

·

Airbag ECU assembly malfunction


·

Harness or connector

·

Rear side squib RH (Rear seat airbag assembly RH)

·

Airbag ECU assembly


Comes on Applies to check mode

DTC Detection Conditions:
Vehicle Condition
Pattern 1 Pattern 2 Pattern 3
Diagnosis Condition Ignition switch ON ○ ○ ○
Malfunction Status The airbag ECU assembly detects a short to ground in the rear side squib RH circuit ○ - -
Rear side squib RH (rear seat airbag assembly RH) malfunction - ○ -
Airbag ECU assembly malfunction - - ○
Detection Time 0.5 seconds 0.5 seconds 0.5 seconds
Number of Trips 1 trip 1 trip 1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

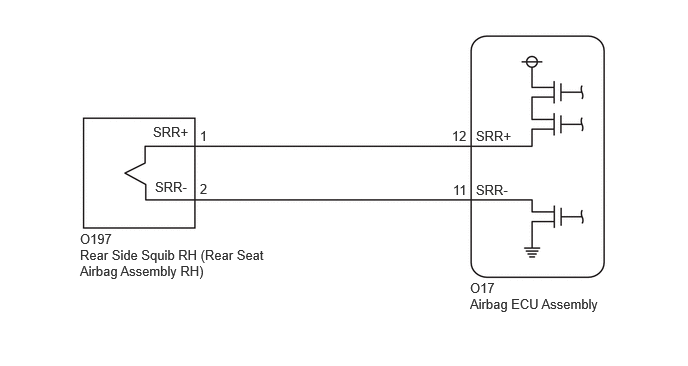

WIRING DIAGRAM

C442199E28
4.896,3.083 6.927,3.521 2.031,0.438 10 false Airbag ECU Assembly 4.896,2.917 6.563,3.083 1.667,0.167 10 false O17 4.708,1.333 5.51,1.979 0.802,0.646 10 false 12 4.719,1.896 5.521,2.542 0.802,0.646 10 false 11 4.958,1.333 5.76,1.979 0.802,0.646 10 false SRR+ 4.958,1.896 5.76,2.542 0.802,0.646 10 false SRR- 0.833,2.406 2.083,2.583 1.25,0.177 10 false O197 0.833,2.573 2.833,3.417 2,0.844 10 false Rear Side Squib RH (Rear Seat Airbag Assembly RH) 2.083,1.333 2.885,1.979 0.802,0.646 10 false 1 2.083,1.885 2.885,2.531 0.802,0.646 10 false 2 1.594,1.292 2.208,1.49 0.615,0.198 10 false SRR+ 1.615,1.865 2.229,2.063 0.615,0.198 10 false SRR-

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

Click here

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




HINT:
·

To perform the simulation method, select Check Mode with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST



PROCEDURE

1.CHECK CURRENT DTC
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Result Proceed to
Current B003811 is output A
Current B003811 is not output B



A

2.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
·

Perform the simulation method by selecting Check Mode using the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST




2.CHECK CONNECTION OF CONNECTORS
a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.

Check that the connectors are properly connected to the rear seat airbag assembly RH and airbag ECU assembly.

OK:

The connectors are properly connected.



Result:
Proceed to
OK
NG



OK

3.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

3.CHECK CONNECTORS
a.

Disconnect the connectors from the rear seat airbag assembly RH and airbag ECU assembly.


b.
C280784C06
1.5,0.792 1.333,0.792 1.333,0.792 1.333,1.292 false 0.698,0.792 0.531,0.792 0.531,0.792 0.531,1.292 false 2.417,0.969 2.75,1.219 0.333,0.25 10 false *2 0.74,0.688 1.156,0.917 0.417,0.229 10 false *1 1.531,0.688 1.833,0.875 0.302,0.188 10 false *3
*1 Rear Seat Airbag Assembly RH
*2 Airbag ECU Assembly
*3 Wire Harness


Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals of the connectors are not deformed or damaged.



c.

Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.



Result:
Proceed to
OK
NG



OK

4.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CLEAR DTC
a.

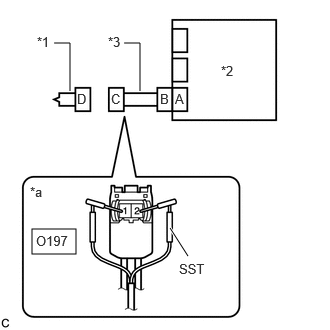

B566955C07
0.333,2.385 0.792,2.646 0.458,0.26 1.771,2.375 1.958,2.667 true 1.458,0.948 1.458,0.448 1.458,0.448 1.292,0.448 false 0.729,0.948 0.729,0.448 0.729,0.448 0.563,0.448 false 0.385,0.354 0.698,0.521 0.313,0.167 10 false *1 2.302,0.656 2.677,0.979 0.375,0.323 10 false *2 0.313,1.917 0.646,2.333 0.333,0.417 10 false *a 1.865,2.719 2.229,2.979 0.365,0.26 10 false SST 0.375,2.427 1.021,2.802 0.646,0.375 10 false O197 1.823,0.948 1.969,1.198 0.146,0.25 10 false A 1.667,0.948 1.813,1.198 0.146,0.25 10 false B 1.156,0.948 1.302,1.198 0.146,0.25 10 false C 0.802,0.948 1,1.156 0.198,0.208 10 false D 1.125,0.354 1.427,0.521 0.302,0.167 10 false *3
*1 Rear Seat Airbag Assembly RH
*2 Airbag ECU Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Rear Seat Airbag Assembly RH)


Connect the connector to the airbag ECU assembly.


b.

Connect the red wire side of SST (resistance 2.1 Ω) to connector C.

CAUTION:

Never connect a tester to the rear seat airbag assembly RH for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting it.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

f.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

5.CHECK REAR SEAT AIRBAG ASSEMBLY RH
5.CHECK REAR SEAT AIRBAG ASSEMBLY RH
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B003811 is not output A
B003811 is output B


HINT:

Codes other than DTC B003811 may be output at this time, but they are not related to this check.



c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



e.

Disconnect SST from connector C.



A

REPLACE REAR SEAT AIRBAG ASSEMBLY RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>REAR SEAT SIDE AIRBAG ASSEMBLY>REMOVAL


B

6.CHECK HARNESS AND CONNECTOR
6.CHECK HARNESS AND CONNECTOR
a.

Disconnect the connector from the airbag ECU assembly.


b.

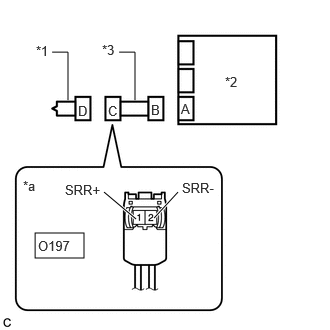

B566956C07
0.365,2.427 0.875,2.688 0.51,0.26 0.708,1.042 0.708,0.542 0.708,0.542 0.542,0.542 false 1.604,2.271 1.854,2 true 1.417,2.281 1.083,2 true 1.406,1.042 1.406,0.542 1.406,0.542 1.24,0.542 false 0.375,0.448 0.688,0.646 0.313,0.198 10 false *1 2.344,0.771 2.656,0.969 0.313,0.198 10 false *2 1.063,0.438 1.375,0.635 0.313,0.198 10 false *3 1.885,1.052 2.198,1.25 0.313,0.198 10 false A 1.573,1.063 1.885,1.26 0.313,0.198 10 false B 1.125,1.073 1.438,1.271 0.313,0.198 10 false C 0.813,1.073 1.125,1.271 0.313,0.198 10 false D 0.24,1.854 0.552,2.052 0.313,0.198 10 false *a 0.396,2.479 0.792,2.677 0.396,0.198 10 false O197 0.677,1.896 1.292,2.094 0.615,0.198 10 false SRR+ 1.896,1.875 2.51,2.073 0.615,0.198 10 false SRR-
*1 Rear Seat Airbag Assembly RH
*2 Airbag ECU Assembly
*3 Wire Harness
*a Front view of wire harness connector
(to Rear Seat Airbag Assembly RH)


Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O197-1 (SRR+) - Body ground Always 1 MΩ or higher
O197-2 (SRR-) - Body ground Always 1 MΩ or higher




Result:
Proceed to
OK
NG



OK

7.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CLEAR DTC
a.
C238241C01
0.844,1.292 0.844,0.844 0.844,0.844 0.552,0.844 false 0.396,0.781 0.729,1.083 0.333,0.302 10 false *1 0.979,1.302 1.156,1.531 0.177,0.229 10 false D 1.135,1.302 1.344,1.5 0.208,0.198 10 false C 1.583,1.302 1.781,1.5 0.198,0.198 10 false B 1.74,1.302 1.938,1.542 0.198,0.24 10 false A 2.146,1.021 2.438,1.26 0.292,0.24 10 false *2
*1 Rear Seat Airbag Assembly RH
*2 Airbag ECU Assembly


Connect the connectors to the rear seat airbag assembly RH and airbag ECU assembly.


b.

Connect the cable to the negative (-) auxiliary battery terminal.


c.

Turn the ignition switch to ON, and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

e.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

8.CHECK DTC
8.CHECK DTC
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Result Proceed to
B003811 is not output A
B003811 is output B


HINT:

Codes other than DTC B003811 may be output at this time, but they are not related to this check.



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
·

Perform the simulation method by selecting Check Mode using the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST




B

REPLACE AIRBAG ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL
