RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510833 FRONT DOOR A

DOOR / HATCH  FRONT DOOR  DISASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (DISASSEMBLY)

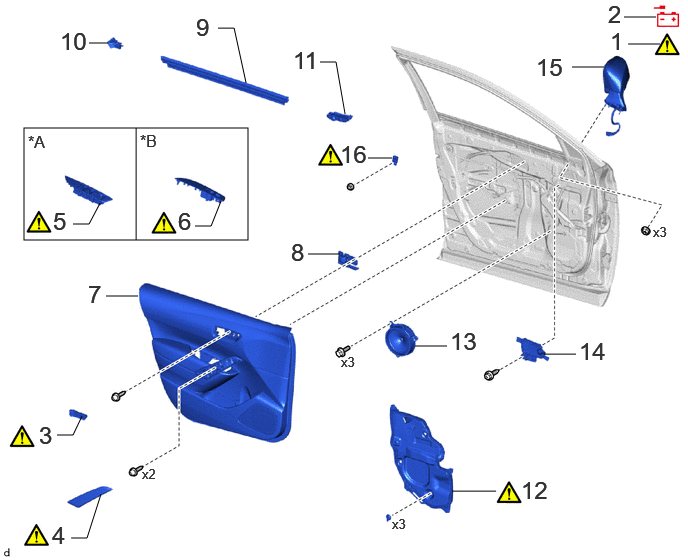

B630949N01
0.25,1.333 2.583,2.5 2.333,1.167 6.5,0.177 6.833,0.177 false 5.958,0.698 6.292,0.698 false 2.563,0.865 2.438,0.292 2.438,0.292 2.271,0.292 false 0.927,0.448 1.125,0.448 false 3.833,1.646 4.083,1.646 false 3.208,2.646 3.542,2.646 false 2.031,2.354 2.198,2.354 2.198,2.354 2.302,2.094 false 0.76,2.333 0.927,2.333 0.927,2.333 1.042,2.115 false 1.417,1.333 1.417,2.5 false 1.104,3.083 1.438,3.083 false 4.323,3.604 4.656,3.604 false 5.667,3.688 6,3.688 false 4.708,5.115 5.167,5.115 false 3.594,1.188 3.5,0.646 3.5,0.646 3.333,0.646 false 0.594,4.531 0.76,4.531 0.76,4.531 0.854,4.333 false 0.74,5.604 0.906,5.604 0.906,5.604 1.052,5.146 false 6.542,0.458 6.875,0.458 false 6.333,0 6.615,0.354 0.281,0.354 18 false 2 5.583,0.552 5.948,0.885 0.365,0.333 18 false 15 3.052,0.479 3.417,0.813 0.365,0.333 18 false 11 2.042,0.135 2.323,0.49 0.281,0.354 18 false 9 0.625,0.281 0.979,0.646 0.354,0.365 18 false 10 3.542,1.458 3.906,1.792 0.365,0.333 18 false 16 3.031,2.479 3.313,2.833 0.281,0.354 18 false 8 1.854,2.156 2.135,2.51 0.281,0.354 18 false 6 0.552,2.156 0.833,2.51 0.281,0.354 18 false 5 0.292,1.375 0.573,1.729 0.281,0.354 12 false *A 1.458,1.365 1.74,1.719 0.281,0.354 12 false *B 0.917,2.917 1.198,3.271 0.281,0.354 18 false 7 0.406,4.385 0.688,4.74 0.281,0.354 18 false 3 0.542,5.427 0.823,5.781 0.281,0.354 18 false 4 1.479,4.854 1.76,5.208 0.281,0.354 10 false x2 4.083,5.375 4.365,5.729 0.281,0.354 10 false x3 3.552,3.688 3.833,4.042 0.281,0.354 10 false x3 4.688,3.406 5.052,3.74 0.365,0.333 18 false 13 6.031,3.51 6.396,3.844 0.365,0.333 18 false 14 5.427,4.958 5.792,5.292 0.365,0.333 18 false 12 6.354,0.281 6.635,0.635 0.281,0.354 18 false 1 6.802,2.333 7.083,2.688 0.281,0.354 10 false x3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - (Click here) - -
3 FRONT DOOR INSIDE HANDLE BEZEL PLUG 69284F (Click here) - -
4 DOOR ASSIST GRIP COVER 74646 (Click here) - -
5 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - (Click here) - -
6 POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL - (Click here) - -
7 FRONT DOOR TRIM BOARD SUB-ASSEMBLY 67602 - - -
8 FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY 69206B - - -
9 FRONT DOOR GLASS INNER WEATHERSTRIP 68172A - - -
10 FRONT DOOR REAR BELT SEAL 68195B - - -
11 FRONT DOOR FRONT BELT SEAL 68193C - - -
12 FRONT DOOR SERVICE HOLE COVER 67832 (Click here) - -
13 FRONT NO. 1 SPEAKER ASSEMBLY 86160 - - -
14 OUTER MIRROR INSTALL HOLE COVER 87964 - - -
15 OUTER REAR VIEW MIRROR ASSEMBLY 87940 - - -
16 SIDE AIRBAG PRESSURE SENSOR 8983AA (Click here) - -

*A for Driver Side *B for Front Passenger Side

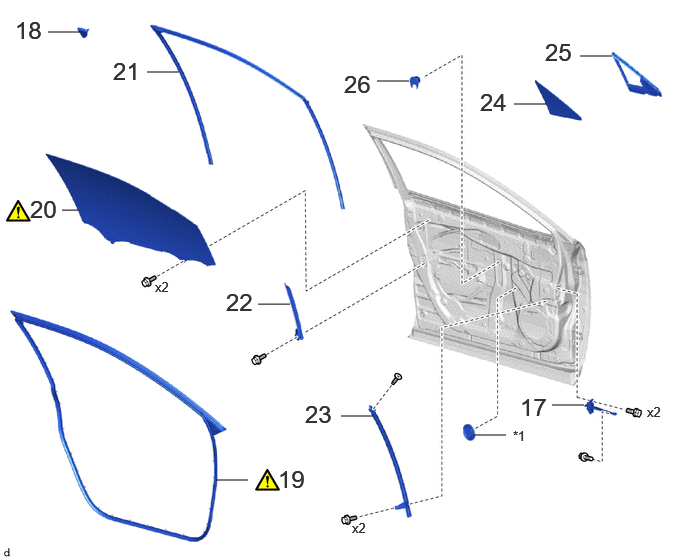

B630950N01
0.5,0.333 0.833,0.333 false 1.531,0.75 1.865,0.75 false 0.646,2.188 0.813,2.188 false 2.25,5 2.583,5 false 3.552,4.333 3.885,4.333 false 5.354,1.083 5.688,1.083 false 6.042,0.583 6.375,0.583 false 2.688,3.167 3.021,3.167 false 4.938,4.531 5.271,4.531 false 3.927,0.844 4.26,0.844 false 5.75,4.219 6.083,4.219 false 5.417,4.094 5.792,4.427 0.375,0.333 18 false 17 0.156,0.167 0.531,0.5 0.375,0.333 18 false 18 1.177,0.594 1.552,0.927 0.375,0.333 18 false 21 0.313,2.031 0.688,2.365 0.375,0.333 18 false 20 2.896,4.844 3.271,5.177 0.375,0.333 18 false 19 3.177,4.167 3.552,4.5 0.375,0.333 18 false 23 5,0.917 5.375,1.25 0.375,0.333 18 false 24 5.677,0.396 6.052,0.729 0.375,0.333 18 false 25 6.74,4.208 7.031,4.458 0.292,0.25 10 false x2 1.615,2.906 1.906,3.156 0.292,0.25 10 false x2 2.354,3 2.729,3.333 0.375,0.333 18 false 22 3.667,5.417 3.958,5.667 0.292,0.25 10 false x2 5.344,4.458 5.635,4.708 0.292,0.25 10 false *1 3.583,0.729 3.958,1.063 0.375,0.333 18 false 26

Procedure Part Name Code
Z101186

Z101188

Z101187

17 FRONT DOOR CHECK ASSEMBLY 68620 - - -
18 DOOR FRAME UPPER GARNISH 67664 - - -
19 FRONT DOOR WEATHERSTRIP 67862 - - -
20 FRONT DOOR GLASS SUB-ASSEMBLY 68102 (Click here) - -
21 FRONT DOOR GLASS RUN 68151D - - -
22 FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY 67404F - - -
23 FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY 67402F - - -
24 FRONT DOOR FIX WINDOW GLASS 68126 - - -
25 FRONT DOOR FIX WINDOW WEATHERSTRIP 68216 - - -
26 NO. 2 FRONT DOOR SERVICE HOLE COVER 67831C - - -

*1 HOLE PLUG - -

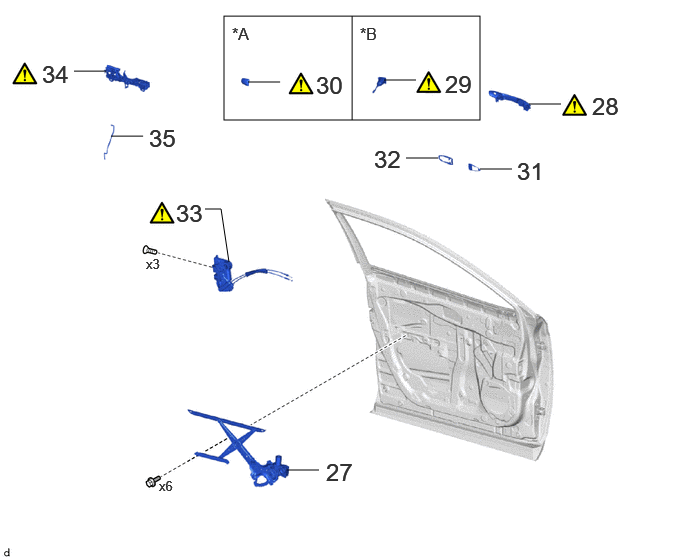

B635716N01
2.333,0.167 5,1.25 2.667,1.083 0.771,0.74 1.104,0.74 false 2.583,0.854 2.917,0.854 false 4,0.833 4.333,0.833 false 5.51,1.083 5.844,1.083 false 5,1.76 5.333,1.76 false 4.229,1.646 4.563,1.646 false 1.156,1.417 1.49,1.417 false 2.135,2.177 2.302,2.177 2.302,2.177 2.385,2.729 false 2.99,4.896 3.323,4.896 false 3.667,1.25 3.667,0.167 false 1.833,2.073 2.25,2.448 0.417,0.375 18 false 33 4.635,0.729 5.052,1.104 0.417,0.375 18 false 29 6.167,0.958 6.583,1.333 0.417,0.375 18 false 28 3.396,4.771 3.813,5.146 0.417,0.375 18 false 27 3.292,0.74 3.708,1.115 0.417,0.375 18 false 30 5.385,1.635 5.802,2.01 0.417,0.375 18 false 31 0.438,0.625 0.854,1 0.417,0.375 18 false 34 3.896,1.51 4.313,1.885 0.417,0.375 18 false 32 1.521,2.667 1.938,3.042 0.417,0.375 10 false x3 1.656,4.979 2.073,5.354 0.417,0.375 10 false x6 2.417,0.25 2.833,0.625 0.417,0.375 12 false *A 3.75,0.25 4.167,0.625 0.417,0.375 12 false *B 1.552,1.292 1.969,1.667 0.417,0.375 18 false 35

Procedure Part Name Code
Z101186

Z101188

Z101187

27 FRONT DOOR WINDOW REGULATOR ASSEMBLY - - - -
28 FRONT DOOR OUTSIDE HANDLE ASSEMBLY 69220 (Click here) - -
29 FRONT DOOR LOCK CYLINDER ASSEMBLY - (Click here) - -
30 FRONT DOOR OUTSIDE HANDLE COVER 69217D (Click here) - -
31 FRONT DOOR OUTSIDE HANDLE FRONT PAD 69241H - - -
32 FRONT DOOR OUTSIDE HANDLE REAR PAD 69242H - - -
33 FRONT DOOR LOCK WITH MOTOR ASSEMBLY 69040A (Click here) - -
34 FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY 69202A (Click here) - -
35 FRONT DOOR LOCK OPEN ROD 69312 (Click here) - -

*A for Front Passenger Side *B for Driver Side

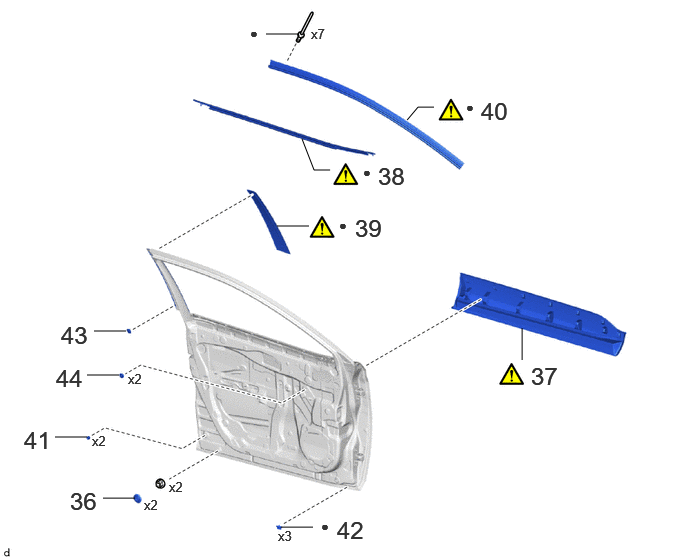

B630952N01
3.146,1.448 3.271,1.771 3.271,1.771 3.438,1.771 false 5.438,3.417 5.438,3.75 false 2.927,5.49 3.26,5.49 false 2.885,2.354 3.219,2.354 false 0.979,3.448 1.313,3.448 false 0.906,3.906 1.24,3.906 false 0.573,4.552 0.906,4.552 false 1.073,5.188 1.406,5.188 false 2.771,0.354 3.104,0.354 false 4.24,1.25 4.354,1.115 4.354,1.115 4.521,1.115 false 5.531,3.771 5.896,4.125 0.365,0.354 18 false 37 3.781,1.708 3.979,1.958 0.198,0.25 10 false ● 0.729,5.073 1.094,5.427 0.365,0.354 18 false 36 3.938,1.688 4.302,2.042 0.365,0.354 18 false 38 5.01,1.01 5.375,1.365 0.365,0.354 18 false 40 3.698,2.229 4.063,2.583 0.365,0.354 18 false 39 0.25,4.438 0.615,4.792 0.365,0.354 18 false 41 4.854,1.031 5.052,1.281 0.198,0.25 10 false ● 3.531,2.26 3.729,2.51 0.198,0.25 10 false ● 3.344,5.396 3.542,5.646 0.198,0.25 10 false ● 2.896,5.5 3.135,5.74 0.24,0.24 10 false x3 1.76,4.99 2.042,5.208 0.281,0.219 10 false x2 0.958,4.51 1.24,4.729 0.281,0.219 10 false x2 1.333,3.865 1.615,4.083 0.281,0.219 10 false x2 3.51,5.375 3.875,5.729 0.365,0.354 18 false 42 0.635,3.344 1,3.698 0.365,0.354 18 false 43 0.583,3.792 0.948,4.146 0.365,0.354 18 false 44 3.24,0.271 3.521,0.49 0.281,0.219 10 false x7 2.604,0.26 2.802,0.51 0.198,0.25 10 false ● 1.5,5.177 1.781,5.396 0.281,0.219 10 false x2

Procedure Part Name Code
Z101186

Z101188

Z101187

36 HOLE PLUG - - - -
37 FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY 75074 (Click here) - -
38 FRONT DOOR BELT MOULDING ASSEMBLY 75720 (Click here) - -
39 FRONT DOOR WINDOW FRAME MOULDING(CENTER PILLAR SIDE) 75756D (Click here) - -
40 FRONT DOOR UPPER WINDOW FRAME MOULDING 75754A (Click here) - -
41 FRONT DOOR PANEL CUSHION 67001A - - -
42 FRONT DOOR DUST PROOF SEAL 67837B - - -
43 DOOR WINDOW FRAME MOULDING CLIP 75792 - - -
44 NO. 2 HOLE PLUG - - - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front door removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
·

Door window regulator sub-assembly

·

Door glass

·

Door glass run


Initialize power window control system
·

Auto up and down function

·

Jam protection function

·

Remote control function

·

Key-linked function

·

Wireless transmitter-linked function

·

Key-off operation function

·

Catch protection function

·

Window open warning function


(Click here)
Outer rear view mirror assembly Side television camera view adjustment Panoramic view monitor system (Click here)

NOTICE:

After the ignition switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -

·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION

Z101186

CAUTION:
B401522

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here(Click here)


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Z101186

CAUTION:
·
B422343


·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




·

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL

·

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

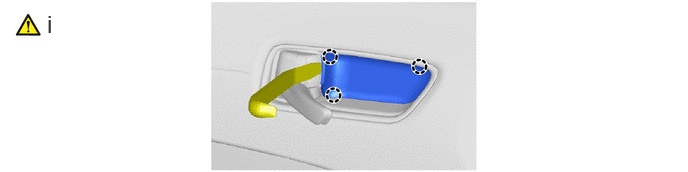

Hide 69284F 3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG

a.
B606218N01
0.49,0.104 0.625,0.427 0.135,0.323 18 false i

i.

Using a moulding remover A, disengage the claws to remove the front door inside handle bezel plug.

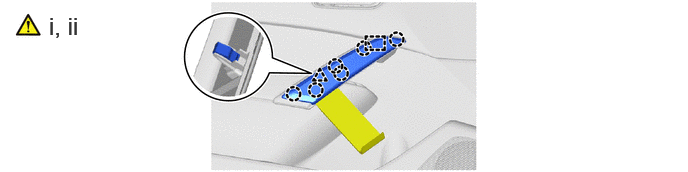

Hide 74646 4.REMOVE DOOR ASSIST GRIP COVER

a.
B606219N02
0.51,0.125 1.396,0.542 0.885,0.417 18 true i, ii

i.

Using a moulding remover D, disengage the claws.


ii.

Disengage the guide and clip to remove the door assist grip cover.

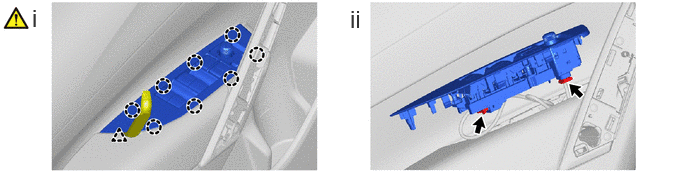

Hide 5.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

a.
B606220N01
0.333,0.042 0.615,0.396 0.281,0.354 18 false i 3.646,0.052 3.927,0.406 0.281,0.354 18 false ii

i.

Using a moulding remover A, disengage the clip and claws.


ii.

Disconnect the 2 connectors to remove the multiplex network master switch assembly with front door upper armrest base panel.

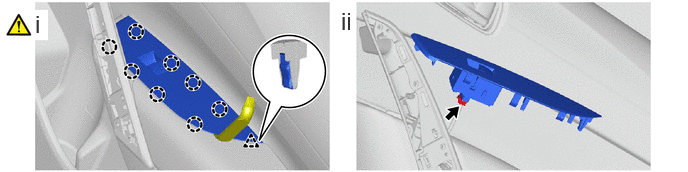

Hide 6.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

a.
B606221N01
0.365,0.104 0.5,0.417 0.135,0.313 18 true i 3.552,0.073 3.833,0.427 0.281,0.354 18 false ii

i.

Using a moulding remover A, disengage the clip and claws.


ii.

Disconnect the connector to remove the power window regulator switch assembly with front door upper armrest base panel.

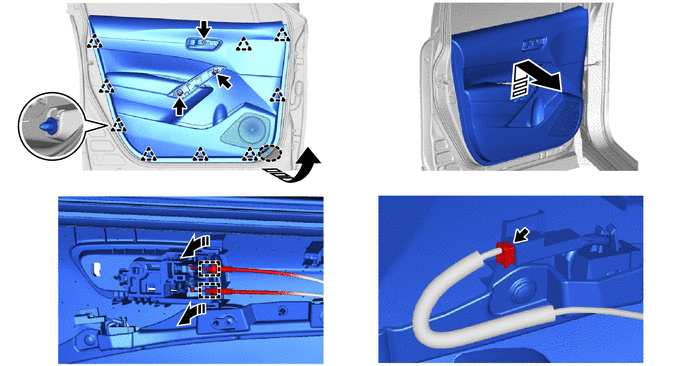

Hide 67602 7.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

a.
B588708C03
0,0 0,0 false
V113146

Place Hands Here
V113147

Remove in this Direction

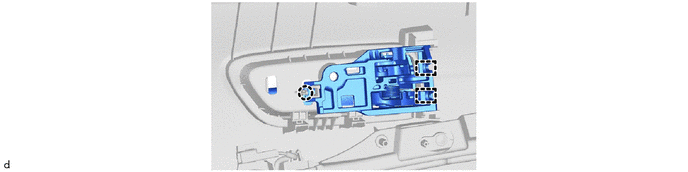

Hide 69206B 8.REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

a.
B586671

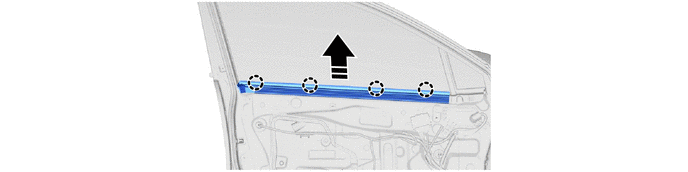

Hide 68172A 9.REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP

a.
B635703C01
0,0 0,0 false
V113147

Remove in this Direction - -

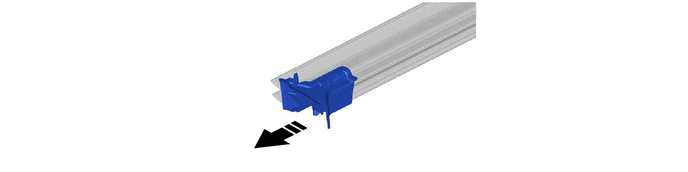

Hide 68195B 10.REMOVE FRONT DOOR REAR BELT SEAL

a.
B635704C01
0,0 0,0 false
V113147

Remove in this Direction - -

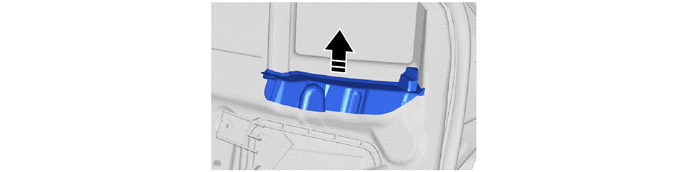

Hide 68193C 11.REMOVE FRONT DOOR FRONT BELT SEAL

a.
B635705C01
0,0 0,0 false
V113147

Remove in this Direction - -

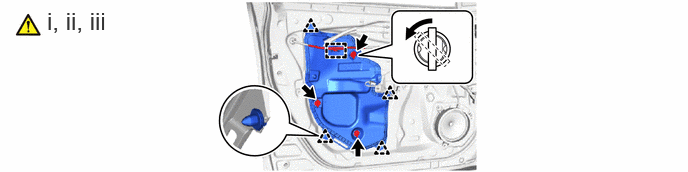

Hide 67832 12.REMOVE FRONT DOOR SERVICE HOLE COVER

a.
B606225N02
0.49,0.073 1.573,0.417 1.083,0.344 18 false i, ii, iii

i.

Disengage the clamp to separate the wire harness.


ii.

Turn the 3 front door weatherstrip clips 45 degrees as shown in the illustration to remove it.


iii.

Disengage the clips to remove the front door service hole cover.



Hide 8983AA 16.REMOVE SIDE AIRBAG PRESSURE SENSOR

Z101186

Click here(Click here)

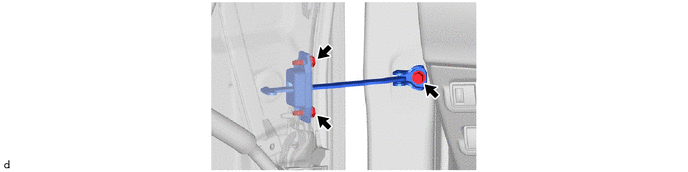

Hide 68620 17.REMOVE FRONT DOOR CHECK ASSEMBLY

a.
B586678


Hide 67664 18.REMOVE DOOR FRAME UPPER GARNISH

a.
B586679

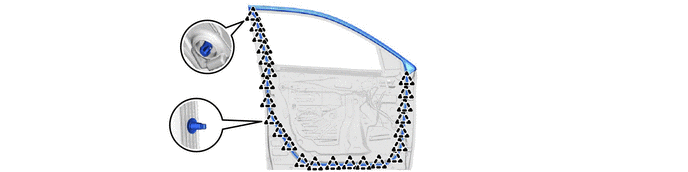

Hide 67862 19.REMOVE FRONT DOOR WEATHERSTRIP

a.
B635706


Hide 68102 20.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

a.

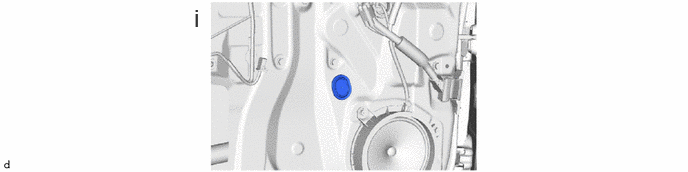

B586676N01
2.021,0.042 2.302,0.396 0.281,0.354 18 false i

i.

Remove the hole plug.



b.

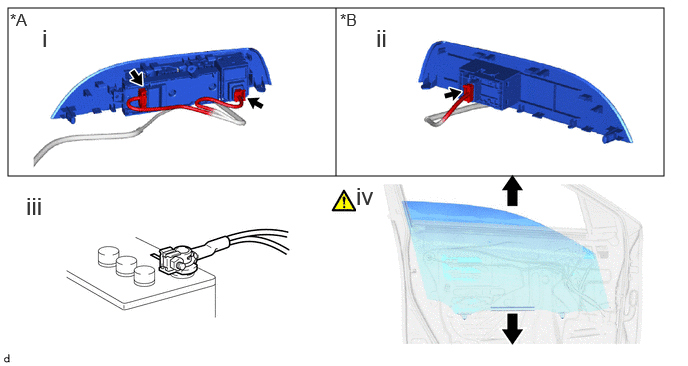

B586681C01
0.083,0.083 6.917,1.833 6.833,1.75 3.5,1.833 3.5,0.083 false 0.104,0.104 0.542,0.385 0.438,0.281 12 false *A 0.438,0.25 0.75,0.563 0.313,0.313 18 false i 3.542,0.104 3.979,0.385 0.438,0.281 12 false *B 3.917,0.25 4.229,0.563 0.313,0.313 18 false ii 0.271,2 0.583,2.313 0.313,0.313 18 false iii 3.708,1.896 3.958,2.219 0.25,0.323 18 true iv
*A for Driver Side *B for Front Passenger Side


i.

for Driver Side:

1.

Connect the multiplex network master switch assembly.



ii.

for Front Passenger Side:

1.

Connect the power window regulator switch assembly.



iii.

Connect the cable to the negative (-) auxiliary battery terminal.


iv.

Move the front door glass sub-assembly so that the door glass bolts can be seen.

NOTICE:

After the bolts are removed, do not allow the front door glass sub-assembly to fall.

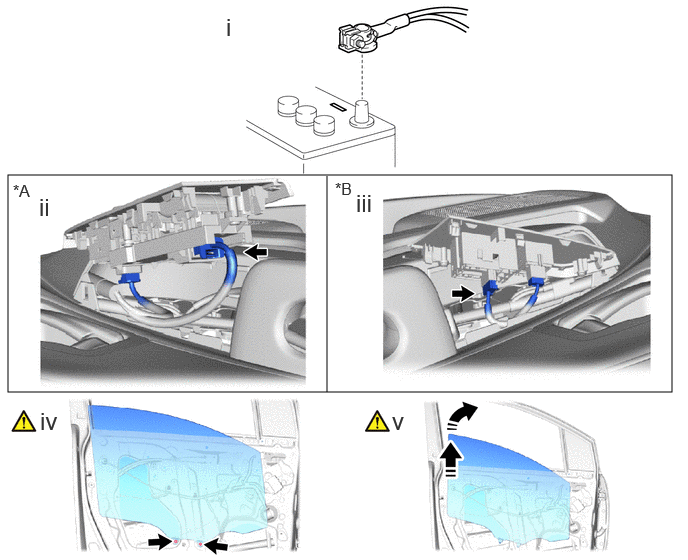

c.
B606227C01
0.083,1.823 7,4.083 6.917,2.26 3.406,4.083 3.406,1.833 false 0.135,1.885 0.51,2.146 0.375,0.26 12 false *A 3.49,1.865 3.802,2.063 0.313,0.198 12 false *B 2.354,0.135 2.563,0.5 0.208,0.365 18 false i 0.406,2.01 0.719,2.344 0.313,0.333 18 false ii 3.708,1.969 3.969,2.354 0.26,0.385 18 false iii 0.417,4.24 0.729,4.635 0.313,0.396 18 false iv 4.083,4.24 4.406,4.51 0.323,0.271 18 false v
*A for Driver Side *B for Front Passenger Side
V113147

Remove in this Direction - -


NOTICE:

Do not damage the front door glass sub-assembly.


i.

Disconnect the cable from negative (-) auxiliary battery terminal.


ii.

for Driver Side:

1.

Disconnect the multiplex network master switch assembly.



iii.

for Front Passenger Side:

1.

Disconnect the power window regulator switch assembly.



iv.

Remove the 2 bolts.

NOTICE:

After the bolts are removed, do not allow the front door glass sub-assembly to fall.



v.

Remove the front door glass sub-assembly as shown in the illustration.

NOTICE:

Do not damage the front door glass sub-assembly.

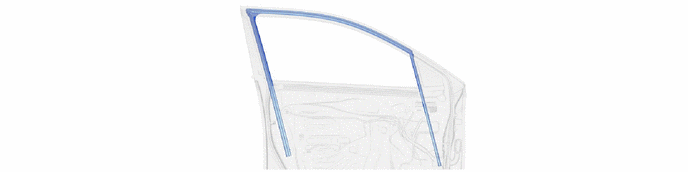

Hide 68151D 21.REMOVE FRONT DOOR GLASS RUN

a.
B588712

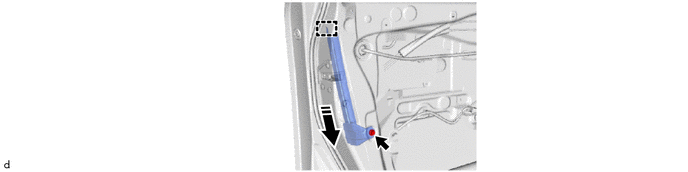

Hide 67404F 22.REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

a.
B586683C01
0,0 0,0 false
V113147

Remove in this Direction - -

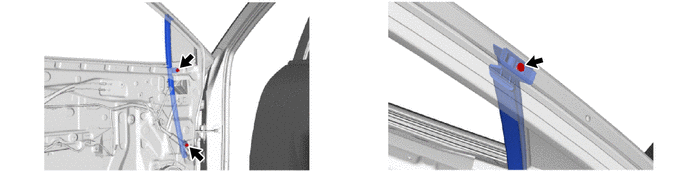

Hide 67402F 23.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

a.
B588709

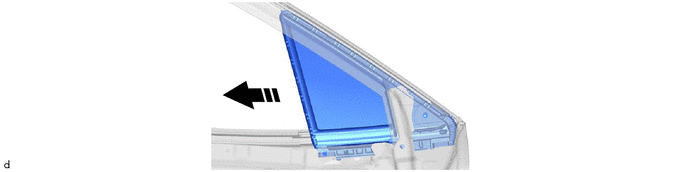

Hide 68126 24.REMOVE FRONT DOOR FIX WINDOW GLASS

a.
B586686C01
0,0 0,0 false
V113147

Remove in this Direction - -



Hide 68216 25.REMOVE FRONT DOOR FIX WINDOW WEATHERSTRIP

a.
B586687

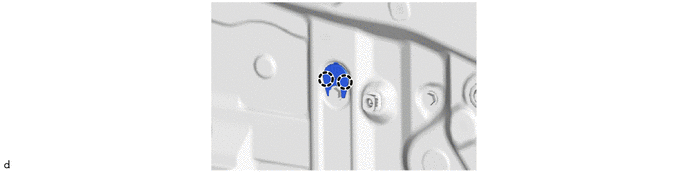

Hide 67831C 26.REMOVE NO. 2 FRONT DOOR SERVICE HOLE COVER

a.
B632539

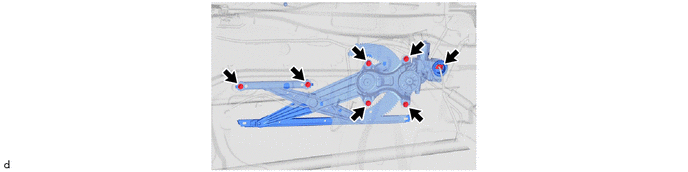

Hide 27.REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

a.
B586688

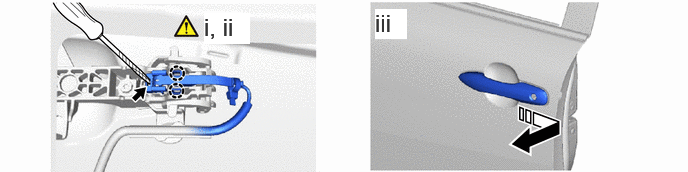

Hide 69220 28.REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

a.
B606228C02
2.125,0.135 2.604,0.458 0.479,0.323 18 true i, ii 3.906,0.094 4.24,0.406 0.333,0.313 18 true iii
V113147

Remove in this Direction - -


i.

Using a screwdriver with its tip wrapped in protective tape, disengage the claws.


ii.

Using a screwdriver with its tip wrapped in protective tape, disconnect the connector.


iii.

Remove the front door outside handle assembly as shown in the illustration.

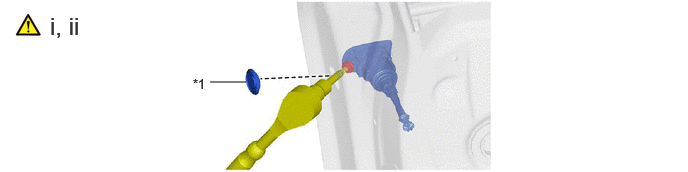

Hide 29.REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

a.
B635430C01
2.563,0.854 2.188,0.854 false 0.521,0.125 1.896,0.479 1.375,0.354 18 false i, ii 2.01,0.792 2.323,0.99 0.313,0.198 10 false *1
*1 Hole Plug - -


i.

Remove the hole plug.


ii.

Using a T30 "TORX" socket wrench, loosen the screw to remove the front door lock cylinder assembly.

HINT:

The screw cannot be removed because it is integrated into the front door outside handle frame sub-assembly.




Hide 69217D 30.REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

a.
B635710C01
4.208,0.417 4.573,0.417 false 0.5,0.115 3.25,0.469 2.75,0.354 18 false i, ii, iii 4.656,0.333 4.969,0.531 0.313,0.198 10 false *1
*1 Hole Plug - -


i.

Remove the hole plug.


ii.

Using a T30 "TORX" socket wrench, loosen the screw.

HINT:

The screw cannot be removed because it is integrated into the front door outside handle frame sub-assembly.



iii.

Disengage the 2 claws to remove the front door outside handle cover.

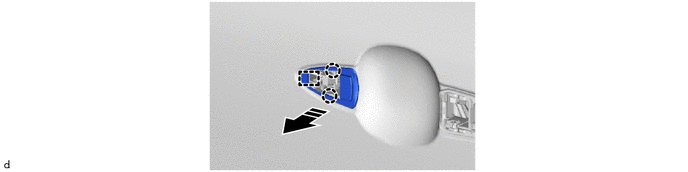

Hide 69241H 31.REMOVE FRONT DOOR OUTSIDE HANDLE FRONT PAD

a.
B586693C01
0,0 0,0 false
V113147

Remove in this Direction - -



Hide 69242H 32.REMOVE FRONT DOOR OUTSIDE HANDLE REAR PAD

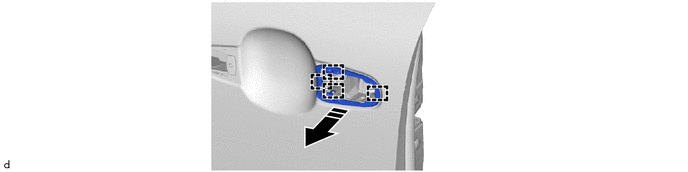

a.
B604779C01
0,0 0,0 false
V113147

Remove in this Direction - -



Hide 69040A 33.REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

Z101186

Click here(Click here)

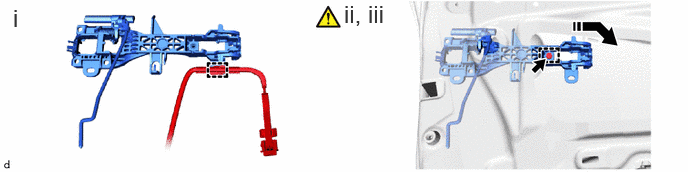

Hide 69202A 34.REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

a.
B607035C01
0.135,0.042 0.417,0.396 0.281,0.354 18 false i 3.583,0 4.24,0.292 0.656,0.292 18 false ii, iii
V113147

Remove in this Direction - -


i.

Disengage the clamp to separate the wire harness.


ii.

Using a T30 "TORX" socket wrench, loosen the screw.


iii.

Disengage the guide to remove the front door outside handle frame sub-assembly as shown in the illustration.

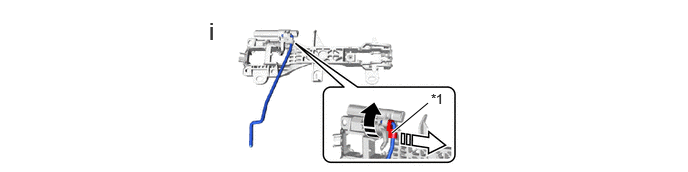

Hide 69312 35.REMOVE FRONT DOOR LOCK OPEN ROD

a.
B635711C01
4.083,1.385 4.458,1.073 true 2.177,0.177 2.458,0.531 0.281,0.354 18 false i 4.49,0.948 4.802,1.146 0.313,0.198 10 false *1
*1 Snap - -
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


i.

Disengage the snap to remove the front door lock open rod as shown in the illustration.



Hide 75074 37.REMOVE FRONT DOOR OUTSIDE LOWER MOULDING SUB-ASSEMBLY

Z101186

Click here(Click here)

Hide 75720 38.REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

Z101186

Click here(Click here)

Hide 75756D 39.REMOVE FRONT DOOR WINDOW FRAME MOULDING (CENTER PILLAR SIDE)

Z101186

Click here(Click here)

Hide 75754A 40.REMOVE FRONT DOOR UPPER WINDOW FRAME MOULDING

Z101186

Click here(Click here)

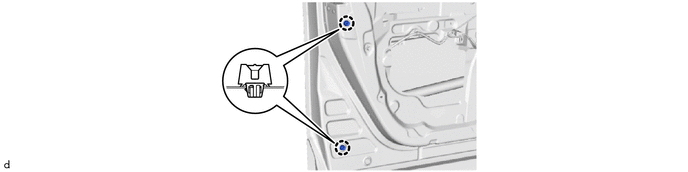

Hide 67001A 41.REMOVE FRONT DOOR PANEL CUSHION

a.
B586698

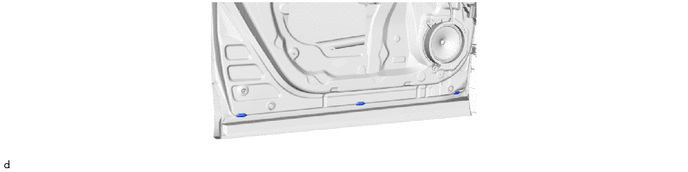

Hide 67837B 42.REMOVE FRONT DOOR DUST PROOF SEAL

a.
B586697

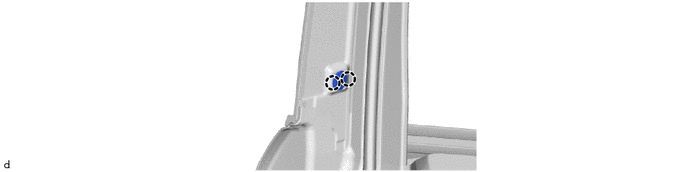

Hide 75792 43.REMOVE DOOR WINDOW FRAME MOULDING CLIP

a.
B632540

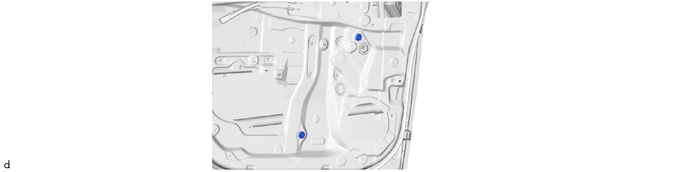

Hide 44.REMOVE NO. 2 HOLE PLUG

a.
B632541
