RM38T0EC _54 Brake _112607 PARKING BRAKE _0608079 ELECTRIC PARKING BRAKE SYSTEM(for HEV Model) C

PARKING BRAKE  ELECTRIC PARKING BRAKE SYSTEM(for HEV Model)  C061000  Right Electric Parking Brake Actuator Control  C061011  Right Electric Parking Brake Actuator Control Circuit Short to Ground


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Memory Note
C061000 Right Electric Parking Brake Actuator Control
·

Diagnosis Condition:

-

·

Malfunction Status:

When the ECU power supply is normal, a malfunction in the electric parking brake actuator RH internal circuit is detected.

·

Detection Time:

-


·

Parking brake actuator assembly RH

·

No. 1 parking brake wire assembly

·

Wire harness or connector

·

Skid control ECU (brake actuator assembly)


DTC stored An electric parking brake system malfunction is displayed on the multi-information display.
C061011 Right Electric Parking Brake Actuator Control Circuit Short to Ground
·

Diagnosis Condition:

Electric parking brake not operating

·

Malfunction Status:

The ECU power supply is normal but there is a malfunction in the electric parking brake actuator RH internal circuit (short to GND).

·

Detection Time:

Approximately 0.015 to 0.195 seconds (depending on each malfunction)


·

Parking brake actuator assembly RH

·

No. 1 parking brake wire assembly

·

Wire harness or connector

·

Skid control ECU (brake actuator assembly)


DTC stored An electric parking brake system malfunction is displayed on the multi-information display.

WIRING DIAGRAM

C469082
1.313,0.677 1.927,0.875 0.615,0.198 10 false MRR+ 1.344,1.281 1.958,1.479 0.615,0.198 10 false MRR- 3.594,1.292 4.052,1.49 0.458,0.198 10 false oO3 3.594,0.698 4.052,0.896 0.458,0.198 10 false oO3 5.031,1.094 5.208,1.365 0.177,0.271 10 false 1 3.677,1.083 3.854,1.354 0.177,0.271 10 false 2 3.677,0.49 3.854,0.76 0.177,0.271 10 false 1 5.042,0.5 5.219,0.771 0.177,0.271 10 false 2 5.375,0.667 5.823,0.844 0.448,0.177 10 false MRR+ 5.385,1.292 5.865,1.479 0.479,0.188 10 false MRR- 5,1.292 5.313,1.49 0.313,0.198 10 false o1 5,0.698 5.313,0.896 0.313,0.198 10 false o1 5.281,1.802 6.75,2.198 1.469,0.396 10 false Parking Brake Actuator Assembly RH 3.708,1.802 4.979,2.354 1.271,0.552 10 false No. 1 Parking Brake Wire Assembly 0.583,1.792 1.042,1.99 0.458,0.198 10 false A151 0.583,1.948 2.135,2.396 1.552,0.448 10 false Skid Control ECU (Brake Actuator Assembly) 1.792,0.583 2.104,0.781 0.313,0.198 10 false 2 1.792,1.177 2.104,1.375 0.313,0.198 10 false 3

CAUTION / NOTICE / HINT

NOTICE:
·

The electric parking brake may still operate up to 4 minutes after the ignition switch is turned off. Before disconnecting connectors or fuses, turn the ignition switch off and wait 4 minutes or more.

·

After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>UTILITY

·

When replacing the skid control ECU (brake actuator assembly), operate the electric parking brake switch (electric parking brake switch assembly) as the parking brake indicator light blinks (red) when the ignition switch is first turned ON.



PROCEDURE

1.INSPECT NO. 1 PARKING BRAKE WIRE ASSEMBLY
a.

Turn the ignition switch off.


b.

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:

The connector is securely connected.



c.

Disconnect the oO3 and o1 No. 1 parking brake wire assembly connectors.


d.

Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.



e.

Measure the resistance according to the value(s) in the table below.

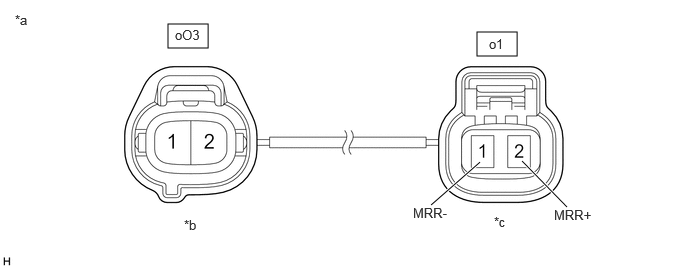

C339684C41
1.75,0.25 2.167,0.5 0.417,0.25 4.969,0.333 5.385,0.583 0.417,0.25 5.906,2.156 5.438,1.677 true 4.49,2.135 5,1.688 true 1.823,0.281 2.281,0.479 0.458,0.198 10 false oO3 5.094,0.375 5.552,0.573 0.458,0.198 10 false o1 1.917,2.26 2.375,2.458 0.458,0.198 10 false *b 0.156,0.125 0.615,0.323 0.458,0.198 10 false *a 5.146,2.229 5.604,2.427 0.458,0.198 10 false *c 4.302,2.135 4.76,2.333 0.458,0.198 10 false MRR- 5.771,2.156 6.229,2.354 0.458,0.198 10 false MRR+
*a Front view of No. 1 Parking Brake Wire Assembly *b (to wire harness connector)
*c (to Parking Brake Actuator Assembly RH) - -


Standard Resistance:
Tester Connection Condition Specified Condition
oO3-1 or o1-2 (MRR+) - Body ground and other terminals Always 10 kΩ or higher
oO3-2 or o1-1 (MRR-) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)

NG

REPLACE NO. 1 PARKING BRAKE WIRE ASSEMBLY

2.CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY RH)
a.

Turn the ignition switch off.


b.

Make sure the No. 1 parking brake wire assembly is securely installed.


c.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.


d.

Disconnect the o1 parking brake actuator assembly RH connector.


e.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A151-2 (MRR+) or o1-2 (MRR+) - Body ground Always 10 kΩ or higher
A151-3 (MRR-) or o1-1 (MRR-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.INSPECT PARKING BRAKE ACTUATOR ASSEMBLY RH

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
