PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  INSPECTION

1.542,1.813 1.927,2.052 0.385,0.24 0.75,0.938 0.365,0.938 true 1.146,0.927 1.563,0.927 true 1.083,2.833 1.5,2.833 true 1.917,2.833 2.333,2.833 true 0.094,0.104 0.333,0.281 0.24,0.177 10 false *a 1.583,0.844 1.802,1.021 0.219,0.177 10 true *b 0.188,0.833 0.406,1.042 0.219,0.208 10 true *c 0.917,2.74 1.354,3.083 0.438,0.344 10 false + 2.417,2.729 3,3.063 0.583,0.333 10 false - 1.646,1.865 1.875,2.063 0.229,0.198 10 false u3

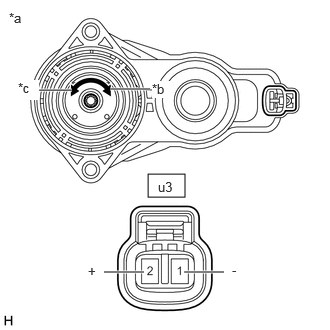

*a	Component without harness connected (Parking Brake Actuator Assembly LH)
*b	Lock
*c	Release

Apply voltage to the terminals of the parking brake actuator assembly LH and check that it operates as specified.

OK:

Tester Connection	Specified Condition
Auxiliary battery positive (+) - u3-2 (+) Auxiliary battery negative (-) - u3-1 (-)	Lock
Auxiliary battery positive (+) - u3-1 (-) Auxiliary battery negative (-) - u3-2 (+)	Release

1.5,1.844 1.906,2.063 0.406,0.219 0.75,0.938 0.365,0.938 true 1.146,0.927 1.563,0.927 true 1.083,2.833 1.5,2.833 true 1.917,2.833 2.333,2.833 true 0.094,0.104 0.333,0.281 0.24,0.177 10 false *a 1.583,0.844 1.802,1.021 0.219,0.177 10 true *b 0.188,0.833 0.406,1.042 0.219,0.208 10 true *c 0.917,2.74 1.354,3.083 0.438,0.344 10 false + 2.417,2.729 3,3.063 0.583,0.333 10 false - 1.615,1.885 1.844,2.073 0.229,0.188 10 false u1

*a	Component without harness connected (Parking Brake Actuator Assembly RH)
*b	Lock
*c	Release

Apply voltage to the terminals of the parking brake actuator assembly RH and check that it operates as specified.

OK:

Tester Connection	Specified Condition
Auxiliary battery positive (+) - u1-2 (+) Auxiliary battery negative (-) - u1-1 (-)	Lock
Auxiliary battery positive (+) - u1-1 (-) Auxiliary battery negative (-) - u1-2 (+)	Release
