RM38T0EC _54 Brake _112607 PARKING BRAKE _0510714 ELECTRIC PARKING BRAKE ACTUATOR A

PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  REMOVAL


CAUTION / NOTICE / HINT

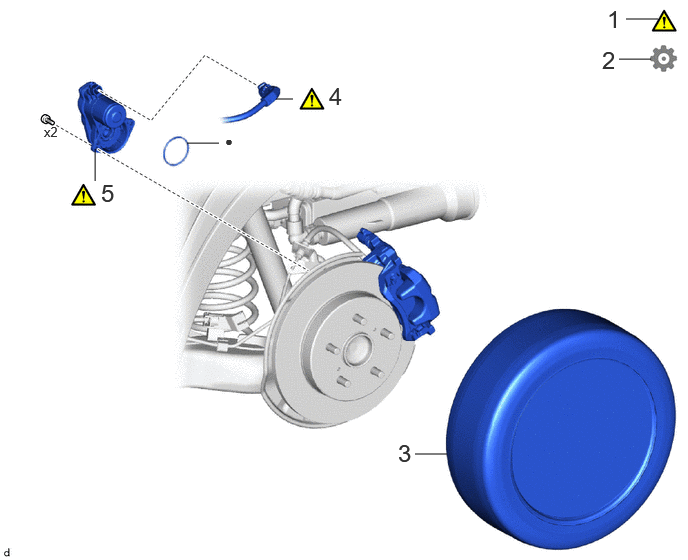

COMPONENTS (REMOVAL)
C473521N01
2.875,1.031 3.052,1.031 false 1.948,1.49 2.281,1.49 false 0.99,1.552 0.99,1.885 false 6.521,0.198 6.854,0.198 false 4.323,4.729 4.656,4.729 false 6.448,0.615 6.781,0.615 false 3.427,0.854 3.75,1.323 0.323,0.469 18 false 4 6.323,0.052 6.583,0.385 0.26,0.333 18 false 1 2.344,1.385 2.719,1.594 0.375,0.208 10 false ● 0.458,1.292 0.781,1.76 0.323,0.469 10 false x2 4.146,4.573 4.469,5.042 0.323,0.469 18 false 3 1.052,1.865 1.375,2.333 0.323,0.469 18 false 5 6.271,0.479 6.531,0.813 0.26,0.333 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 RELEASE PARKING BRAKE - - - (Click here)
3 REAR WHEEL - - - -
4 NO. 2 PARKING BRAKE WIRE ASSEMBLY 890C0A (Click here) - -
5 PARKING BRAKE ACTUATOR ASSEMBLY 46310B (Click here) - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 2.RELEASE PARKING BRAKE

a.
C473522N01
0.375,0.01 0.656,0.365 0.281,0.354 18 false i

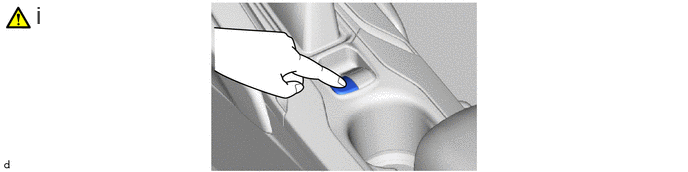

i.

Perform the following procedure.

1. Move the shift lever to P.

2. Turn the ignition switch ON.

3. Operate the electric parking brake switch assembly to release the parking brake.

HINT:

If the parking brake cannot be released:

Click hereBrake>PARKING BRAKE>FORCED RELEASE>OPERATION METHOD


4. Turn the ignition switch off.



Hide 890C0A 4.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

a.
C449003

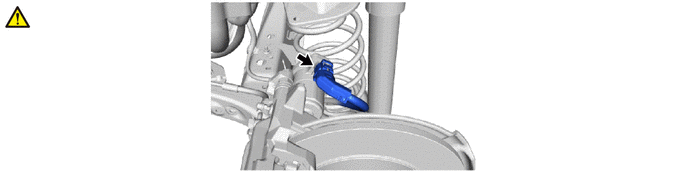

i.

Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

NOTICE:
·

Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.

·

Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.





Hide 46310B 5.REMOVE PARKING BRAKE ACTUATOR ASSEMBLY

a.
C446396N02
0.333,0.094 0.479,0.385 0.146,0.292 18 true i 3.74,0.135 3.958,0.417 0.219,0.281 18 true ii

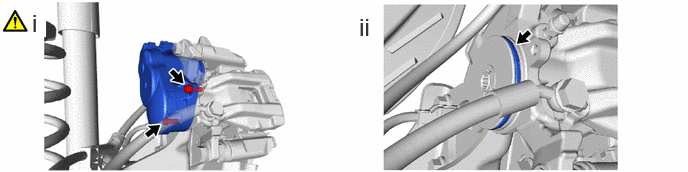

i.

Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly from the rear disc brake cylinder assembly.

NOTICE:
·

Check for brake fluid leaks on the back side of the rear disc brake cylinder assembly.

·

If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.




ii.

Remove the O-ring from the rear disc brake cylinder assembly.
