BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HEV Model) C05001C Left Front Wheel Speed Sensor Circuit Voltage Out of Range
DESCRIPTION
Refer to DTC C050012.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | DTC Output from | Note |
|---|---|---|---|---|---|---|
| C05001C | Left Front Wheel Speed Sensor Circuit Voltage Out of Range | ·
When the vehicle is being driven in a straight line at a speed of 20 km/h (12 mph) or more and VSC/TRC has permission to control vehicle braking, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions): -
When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors. -
The value of the wheel speed is continuously the slowest. -
When the wheel speed is less than 5 km/h (3 mph). ·
When the vehicle speed is less than 100 km/h (62 mph), one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 for between 9 and 72 seconds or more (period changes depending on vehicle conditions): -
When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors. -
The value of the wheel speed is continuously the slowest. -
When the wheel speed is less than 5 km/h (3 mph). ·
When the vehicle speed is 100 km/h (62 mph) or more, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions): -
When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors. -
The value of the wheel speed is continuously the slowest. -
When the wheel speed is less than 5 km/h (3 mph). |
·
Front speed sensor LH ·
Front speed sensor rotor LH (front axle hub sub-assembly LH) ·
Speed sensor installation ·
Tire wear ·
Tire pressure ·
Tire and wheel size |
Comes on | Brake/EPB | ·
SAE Code: C0501 (Case 2 and 3) ·
Output ECU: Skid control ECU (brake actuator assembly) |
*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.
*2: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 16 km/h (10 mph) is permitted.
CONFIRMATION DRIVING PATTERN
- NOTICE:
-
When performing the normal judgment procedure, make sure that the driver door is closed and is not opened at any time during the procedure.
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON and turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off.
Turn the ignition switch to ON (READY) and turn the GTS on.
Wait for 1 second or more. [*]
- HINT:
-
[*]: Normal judgment procedure.
-
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
Enter the following menus: Chassis / Brake/EPB* / Utility / All Readiness.
*: Electric Parking Brake System
Check the DTC judgment result.
- HINT:
- ·
If the judgment result shows NORMAL, the system is normal.
·If the judgment result shows ABNORMAL, the system has a malfunction.
·If the judgment result shows INCOMPLETE, perform driving pattern again.
CAUTION / NOTICE / HINT
- NOTICE:
-
DTC precaution
Procedure to clear warning lights (When not clearing DTCs) Procedure 1.Repair or replacement.
2.Turn the ignition switch to ON.
3.Drive the vehicle at 11 km/h (7 mph) or more for 1 second or more to clear the warning lights.
PROCEDURE
Check that all 4 tires are of correct size, are inflated to the correct pressure, and do not show excessive signs of wear.
- HINT:
-
If a tire is deformed or an incorrectly sized tire or wheel is installed, this DTC may be stored.
- Result:
Proceed to NEXT
NEXT
Select a DTC to display the Freeze Frame Data using the GTS.
Read the freeze frame data of DTC C05001C.
- Chassis > Brake/EPB
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note FR Wheel Speed Front wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations FL Wheel Speed Front wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RR Wheel Speed Rear wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RL Wheel Speed Rear wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations
- Chassis > Brake/EPB > DTC(C05001C) > Freeze Frame Data
-
Tester Display FR Wheel Speed FL Wheel Speed RR Wheel Speed RL Wheel Speed - 50040 435 13,14,15,16 C05001C
- Result:
Result Proceed to The value of FL Wheel Speed is more than all other values. A The value of FL Wheel Speed is less than all other values. B The value of FL Wheel Speed is less than 5 km/h (3 mph). C
A
B
C
Check the Data List using the GTS.
- Chassis > Brake/EPB > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note FR Wheel Speed Front wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations FL Wheel Speed Front wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RR Wheel Speed Rear wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RL Wheel Speed Rear wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations
- Chassis > Brake/EPB > Data List
-
Tester Display FR Wheel Speed FL Wheel Speed RR Wheel Speed RL Wheel Speed - 50003 435 13,14,15,16
Turn the ignition switch to ON (READY).
Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.
Check the value of Wheel Speed.
- OK:
The difference between the value of FL Wheel Speed and all other values is less than 6%.
- HINT:
-
If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin.
- Result:
Proceed to OK NG
OK
NG
Check the Data List using the GTS.
- Chassis > Brake/EPB > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note FR Wheel Speed Front wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations FL Wheel Speed Front wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RR Wheel Speed Rear wheel speed sensor RH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations RL Wheel Speed Rear wheel speed sensor LH reading Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations
- Chassis > Brake/EPB > Data List
-
Tester Display FR Wheel Speed FL Wheel Speed RR Wheel Speed RL Wheel Speed - 50003 435 13,14,15,16
Turn the ignition switch to ON (READY).
Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.
Check the value of Wheel Speed.
- OK:
The difference between the value of FL Wheel Speed and all other values is less than 6%.
- HINT:
-
If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as brake drag.
- Result:
Proceed to OK NG
OK
NG

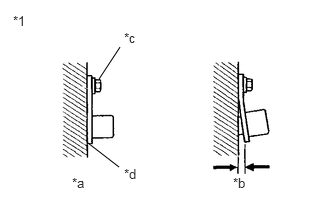

| *1 | Front Speed Sensor LH |
| *a | Correct |
| *b | Incorrect |
| *c | 8.5 N*m (87 kgf*cm, 75 in.*lbf) |
| *d | No clearance |
Check the front speed sensor LH installation.
- OK:
There is no clearance between the front speed sensor LH and the steering knuckle LH.
The installation bolt is tightened properly.
- Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Result:
Proceed to OK NG
OK
NG
Remove the component with the front speed sensor rotor LH.
Check the front speed sensor rotor LH.
- OK:
The front speed sensor rotor LH is free of scratches, oil, and foreign matter.
- NOTICE:
- ·
If there is oil or foreign matter on the front speed sensor rotor LH, clean the front speed sensor rotor LH.
·Do not use parts cleaner when cleaning the front speed sensor rotor LH.
·If the front speed sensor rotor LH is damaged, replace the front axle hub sub-assembly LH with a new one.
- HINT:
-
The front speed sensor rotor LH is incorporated into the front axle hub sub-assembly LH.
-
If the front speed sensor rotor LH needs to be replaced, replace it together with the front axle hub sub-assembly LH.
- Result:
Result Proceed to OK A NG (The front speed sensor rotor LH is damaged.) B NG (There is foreign matter on the front speed sensor rotor LH.) C
A
B
C
Check the Data List using the GTS.
- Chassis > Brake/EPB > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note FL Wheel Speed Front wheel speed sensor LH reading Min.: 0.0 km/h (0.0 mph), Max.: 6553.5 km/h (4072 mph) Vehicle stopped: 0.0 km/h (0.0 mph) When driving at constant speed: No large fluctuations
- Chassis > Brake/EPB > Data List
-
Tester Display FL Wheel Speed - 50003 435 14
Turn the ignition switch to ON (READY).
Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.
Check the value of FL Wheel Speed.
- OK:
The value of FL Wheel Speed is 5 km/h (3 mph) or more.
- HINT:
-
If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin, brake drag or wheel lockup.
-
When a DTC is stored during operation of ABS or TRC, the system also stores vehicle control history (RoB) that can be guessed the vehicle conditions.
- Result:
Proceed to OK NG
OK
NG
| *1 | Front Speed Sensor LH |
| *a | Correct |
| *b | Incorrect |
| *c | 8.5 N*m (87 kgf*cm, 75 in.*lbf) |
| *d | No clearance |
Check the front speed sensor LH installation.
- OK:
There is no clearance between the front speed sensor LH and the steering knuckle LH.
The installation bolt is tightened properly.
- Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Result:
Proceed to OK NG
OK
NG
