RM38T0EC _54 Brake _112606 BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS _0503313 FRONT SPEED SENSOR A

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS FRONT SPEED SENSOR REMOVAL

CAUTION / NOTICE / HINT

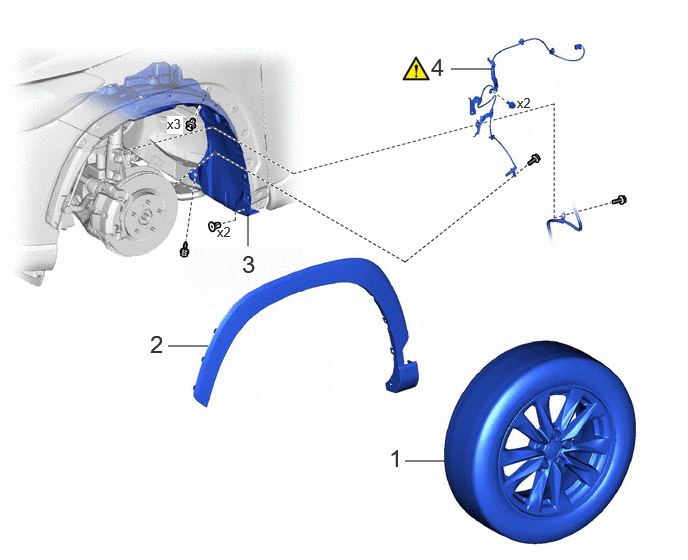

COMPONENTS (REMOVAL)

4.698,0.719 5.115,0.719 false 1.75,3.604 2.167,3.604 false 4.219,4.802 4.635,4.802 false 2.583,2.229 2.583,2.563 false 4.052,4.625 4.333,4.979 0.281,0.354 18 false 1 1.563,3.438 1.844,3.792 0.281,0.354 18 false 2 2.521,2.604 2.802,2.958 0.281,0.354 18 false 3 4.49,0.552 4.771,0.906 0.281,0.354 18 false 4 5.385,0.99 5.604,1.229 0.219,0.24 10 false x2 2.26,2.333 2.479,2.573 0.219,0.24 10 false x2 1.74,1.208 1.906,1.396 0.167,0.188 10 true x3

Procedure		Part Name Code
1	FRONT WHEEL	-	-	-	-
2	WHEEL OPENING MOULDING	-	-	-	-
3	FRONT FENDER LINER	53876A	-	-	-
4	FRONT SPEED SENSOR	89543	(202201,999999,_54,_112606,_0503313,RM100000001ZE4L_01_0024,)	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

·

The front speed sensor rotor is a component of the front axle hub sub-assembly. If the front speed sensor rotor is malfunctioning, replace the front axle hub sub-assembly.

PROCEDURE

Hide Display 1.REMOVE FRONT WHEEL

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202201,999999,_V1,_104397,_0503374,RM100000001ZE9H,

Hide Display 2.REMOVE WHEEL OPENING MOULDING

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>WHEEL OPENING MOULDING (for Front)>REMOVAL202201,999999,_59,_114126,_0505938,RM100000001ZPFZ,

Hide Display 53876A 3.SEPARATE FRONT FENDER LINER

Hide Display 89543 4.REMOVE FRONT SPEED SENSOR

3.938,0.083 4.438,0.385 0.5,0.302 18 true iv, v 0.542,0.104 1.25,0.406 0.708,0.302 18 true i, ii, iii

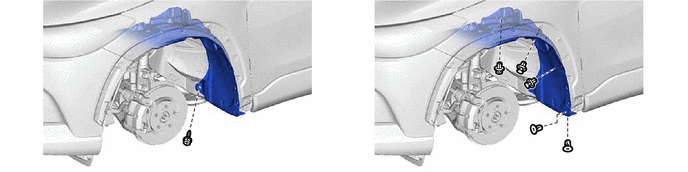

Turn back the front fender liner.

ii.

Disconnect the connector.

iii.

Disengage the clamp from the vehicle body.

iv.

Disengage the clamp from the vehicle body.

Remove the 2 bolts and separate the 2 front speed sensor clamps.

0.323,0.042 0.698,0.313 0.375,0.271 18 true i, ii 4.417,0.063 4.792,0.333 0.375,0.271 18 true iii

Remove the bolt and separate the front flexible hose and front speed sensor clamp from the front shock absorber assembly.

ii.

Disengage the clamp from the front shock absorber assembly.

iii.

Remove the bolt and front speed sensor from the steering knuckle.

NOTICE:: ·

Keep the tip of the front speed sensor and installation hole free of foreign matter.

·

Do not rotate or apply excessive force to the front speed sensor when removing it from the steering knuckle. Rotating or applying excessive force may result in damage to the front speed sensor.
