| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|

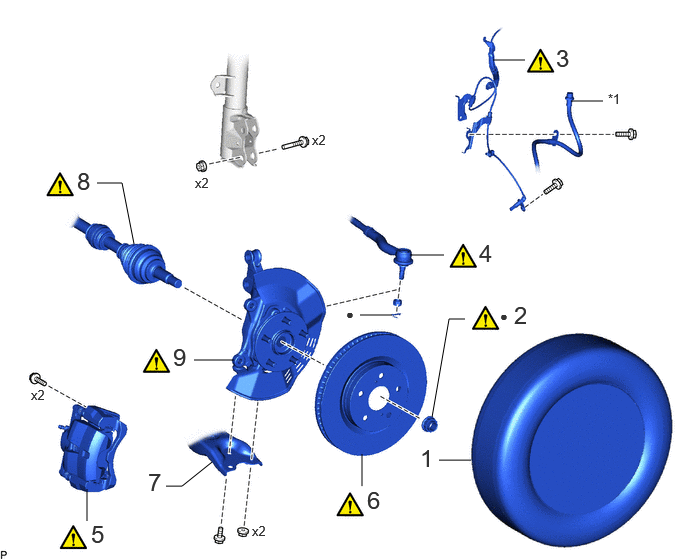

| 1 | FRONT WHEEL | - | - | - | - |
| 2 | FRONT AXLE SHAFT NUT | 43502H | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0031,)
|
- | - |
| 3 | FRONT SPEED SENSOR | 89543 | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0035,)
|
- | - |
| 4 | TIE ROD END SUB-ASSEMBLY | 45047 | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0023,)
|
- | - |
| 5 | FRONT DISC BRAKE CALIPER ASSEMBLY | - | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0033,)
|
- | - |
| 6 | FRONT DISC | 43512 | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0045,)
|
- | - |
| 7 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | 48069 | - | - | - |
| 8 | FRONT DRIVE SHAFT ASSEMBLY | 43420 | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0037,)
|
- | - |
| 9 | FRONT AXLE ASSEMBLY | - | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0008,)
|
- | - |
| *1 | FRONT FLEXIBLE HOSE | - | - |
| ● | Non-reusable part | - | - |
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|

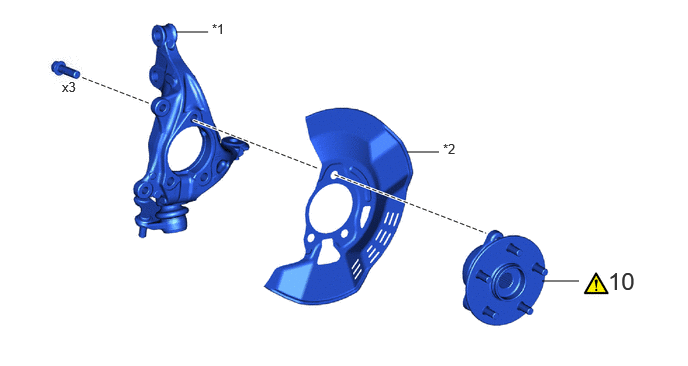

| 10 | FRONT AXLE HUB SUB-ASSEMBLY | 43502C | ( 202307,999999,_52,_112268,_0500952,RM100000002C1Z4_02_0015,)
|
- | - |
| *1 | STEERING KNUCKLE | *2 | FRONT DISC BRAKE DUST COVER |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front axle hub sub-assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*1: for HEV Model *2: for Gasoline Model |
|||
| Front wheel alignment adjustment | Calibration | ·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
VSC disabled or malfunctions |
( 202307,999999,_54,_112606,_0608077,RM100000002C79U,)*1
( 202307,999999,_54,_112606,_0608078,RM100000002C7D1,)*2
|
| Suspension, tires, etc. | Parking assist ECU initialization | Panoramic view monitor system | ( 202201,999999,_56,_111969,_0587004,RM1000000029RN8,)
|
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1.REMOVE FRONT WHEEL
43502H
2.REMOVE FRONT AXLE SHAFT NUT
|
·
for HEV Model: Click here( ·
for Gasoline Model: Click here( |
89543
3.SEPARATE FRONT SPEED SENSOR
|
|
45047
4.SEPARATE TIE ROD END SUB-ASSEMBLY
5.SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY
43512
6.REMOVE FRONT DISC
48069

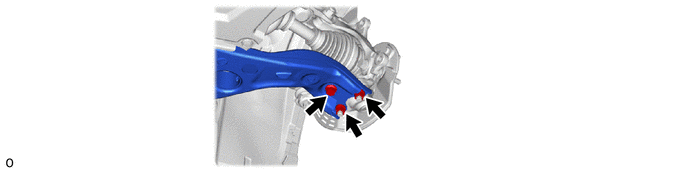

7.SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
43420
8.SEPARATE FRONT DRIVE SHAFT ASSEMBLY
| *a | Matchmark | - | - |

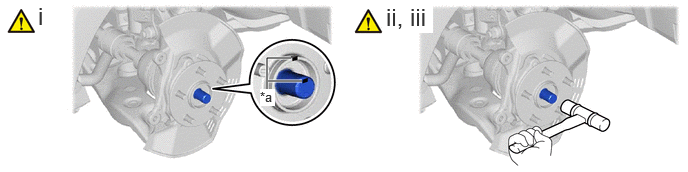

Put matchmarks on the front drive shaft assembly and the front axle hub sub-assembly.
Using a plastic hammer, separate the front drive shaft assembly from the front axle assembly.
Do not damage the front drive shaft outboard joint boot.
Do not push the front axle assembly towards the outside of the vehicle any further than necessary.

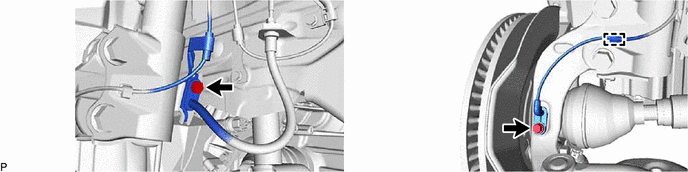

Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.
9.REMOVE FRONT AXLE ASSEMBLY

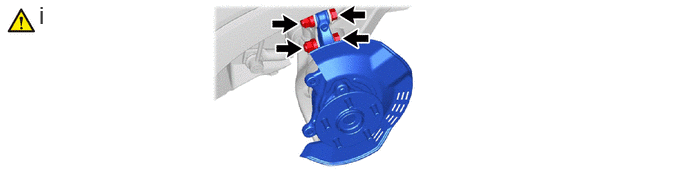

Remove the 2 bolts, 2 nuts and front axle assembly from the front shock absorber assembly.
When removing the nuts, keep the bolts from rotating.
43502C
10.REMOVE FRONT AXLE HUB SUB-ASSEMBLY
Secure the front axle assembly between aluminum plates in a vise.
Do not overtighten the vise.

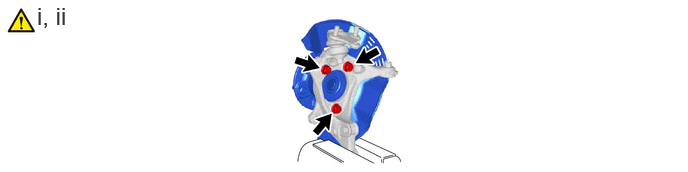

Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.
Do not drop the front axle hub sub-assembly.
Be careful not to damage the speed sensor rotor or contact surfaces.
Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
