SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY  REMOVAL

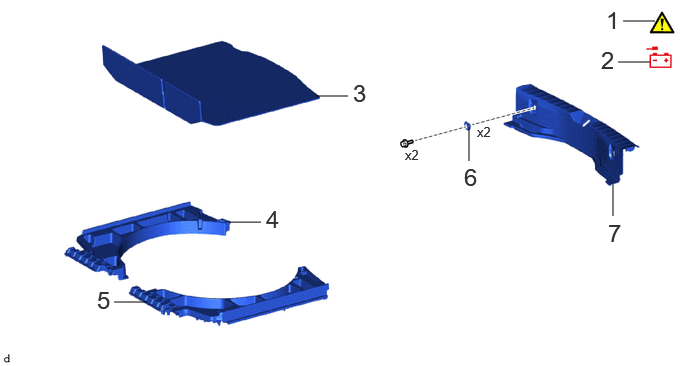

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0290,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	DECK BOARD ASSEMBLY	58410B	-	-	-
4	DECK FLOOR BOX RH	64995	-	-	-
5	DECK FLOOR BOX LH	64997	-	-	-
6	LUGGAGE HOLD BELT STRIKER ASSEMBLY	58460D	-	-	-
7	REAR DECK TRIM COVER	64716D	-	-	-

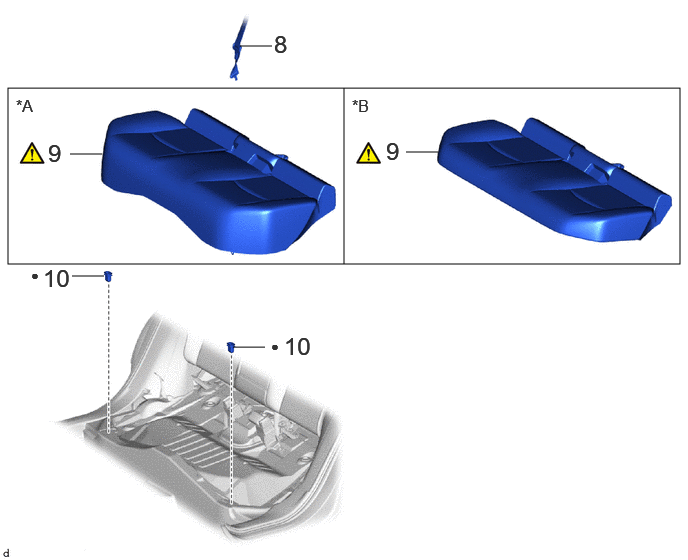

Procedure		Part Name Code
8	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
9	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0292,)	-	-
10	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

*A	for Gasoline Model	*B	for HEV Model
●	Non-reusable part	-	-

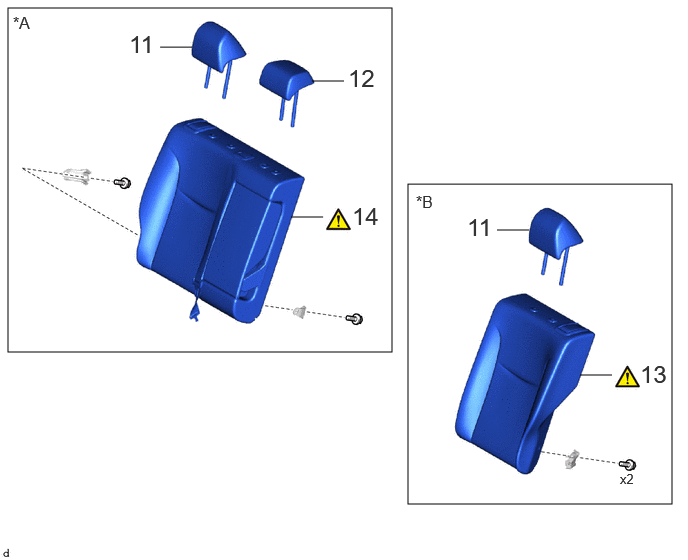

Procedure		Part Name Code
11	REAR SEAT HEADREST ASSEMBLY	71940A	-	-	-
12	REAR SEAT CENTER HEADREST ASSEMBLY	71960B	-	-	-
13	REAR SEATBACK ASSEMBLY LH	-	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0277,)	-	-
14	REAR SEATBACK ASSEMBLY RH	-	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0278,)	-	-

*A

for RH Side

*B

for LH Side

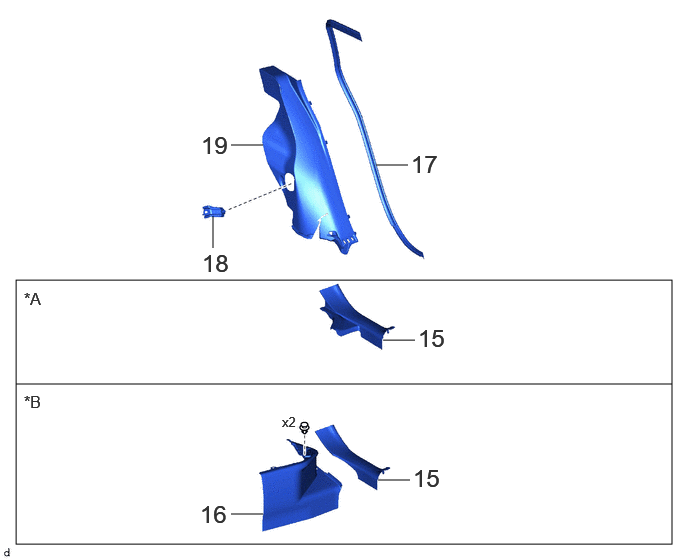

Procedure		Part Name Code
15	REAR DOOR SCUFF PLATE	67918A	-	-	-
16	REAR UNDER SIDE COVER	76974E	-	-	-
17	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
18	REAR SEATBACK HINGE SUB-ASSEMBLY	71304C	-	-	-
19	REAR SEAT SIDE GARNISH	62552F	-	-	-

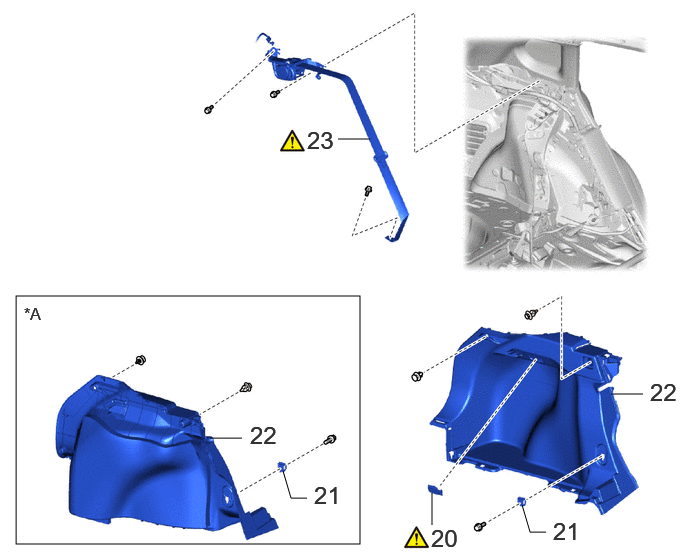

Procedure		Part Name Code
20	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0264,)	-	-
21	LUGGAGE HOLD BELT STRIKER ASSEMBLY	58460D	-	-	-
22	DECK TRIM SIDE PANEL ASSEMBLY	64740C	-	-	-

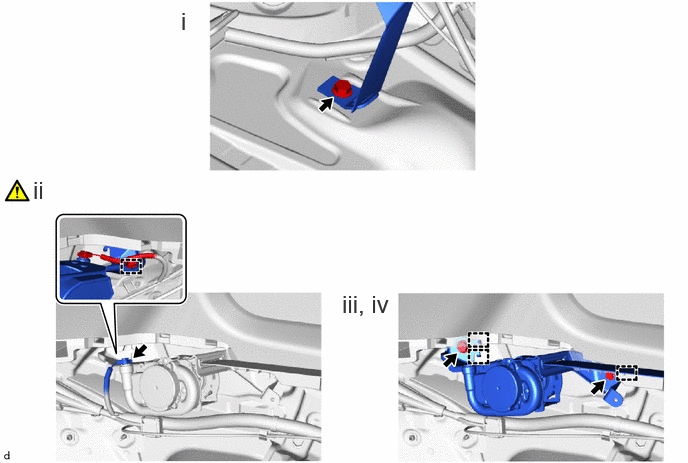

23	REAR SEAT OUTER BELT ASSEMBLY	73370E	(202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0242,)	-	-

*A

for RH Side

-

-

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the rear seat outer belt assembly removal/installation are shown below.

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3,

HINT:

·

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

·

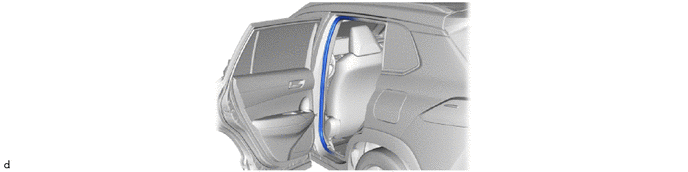

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.
