RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509300 FRONT SEAT OUTER BELT ASSEMBLY A

SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

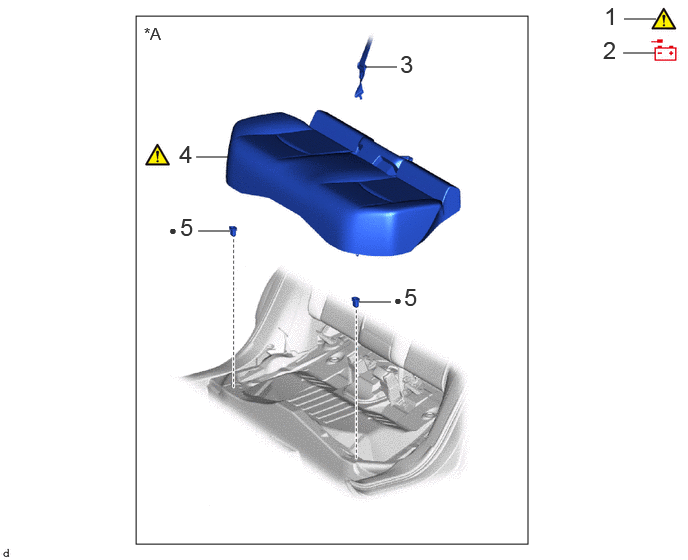

COMPONENTS (REMOVAL)

1.417,0.167 5.5,5.667 4.083,5.5 3.74,3.146 4.073,3.146 false 3.802,0.698 4.135,0.698 false 6.5,0.198 6.833,0.198 false 6.49,0.552 6.823,0.552 false 2.042,1.635 2.375,1.635 false 2.063,2.406 2.396,2.406 false 6.292,0.021 6.573,0.375 0.281,0.354 18 false 1 6.281,0.375 6.563,0.729 0.281,0.354 18 false 2 4.167,0.521 4.448,0.875 0.281,0.354 18 false 3 1.865,1.458 2.146,1.813 0.281,0.354 18 false 4 1.875,2.219 2.156,2.573 0.281,0.354 18 false 5 4.208,2.948 4.49,3.302 0.281,0.354 18 false 5 4.104,3.042 4.26,3.24 0.156,0.198 10 false ● 1.76,2.313 1.917,2.51 0.156,0.198 10 false ● 1.5,0.25 1.875,0.49 0.375,0.24 12 false *A

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_114202,_0509300,RM100000002BZY7_02_0072,)	-	-
2	CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-
4	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_114202,_0509300,RM100000002BZY7_02_0081,)	-	-
5	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

*A	for Gasoline Model	-	-
●	Non-reusable part	-	-

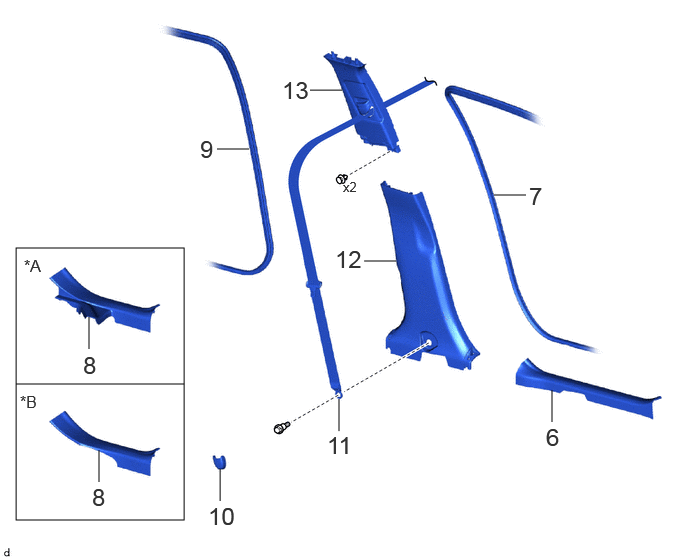

0.167,2.583 1.917,5.417 1.75,2.833 2.292,5.219 2.292,4.885 false 5.479,2.031 5.146,2.031 false 0.927,3.635 0.927,3.302 false 1.031,5.021 1.031,4.688 false 1.917,4 0.167,4 false 2.594,1.552 2.26,1.552 false 3.563,0.938 3.229,0.938 false 4.125,2.719 3.792,2.719 false 3.531,4.49 3.531,4.156 false 5.75,4.396 5.75,4.063 false 5.688,4.406 5.969,4.76 0.281,0.354 18 false 6 5.51,1.896 5.792,2.25 0.281,0.354 18 false 7 0.865,3.656 1.146,4.01 0.281,0.354 18 false 8 0.958,5.031 1.24,5.385 0.281,0.354 18 false 8 2.083,1.406 2.365,1.76 0.281,0.354 18 false 9 2.167,5.229 2.635,5.573 0.469,0.344 18 false 10 3.406,4.49 3.833,4.844 0.427,0.354 18 false 11 3.49,2.552 3.865,2.917 0.375,0.365 18 false 12 2.938,0.792 3.302,1.146 0.365,0.354 18 false 13 3.573,1.865 3.885,2.063 0.313,0.198 10 false x2 0.25,2.667 0.625,2.906 0.375,0.24 12 false *A 0.208,4.083 0.583,4.323 0.375,0.24 12 false *B

Procedure		Part Name Code
6	FRONT DOOR SCUFF PLATE	67914B	-	-	-
7	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-
8	REAR DOOR SCUFF PLATE	67918A	-	-	-
9	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
10	LAP BELT OUTER ANCHOR COVER	73233	-	-	-
11	FRONT SEAT OUTER BELT ASSEMBLY	73220	-	-	-
12	CENTER PILLAR LOWER GARNISH	62414A	-	-	-
13	CENTER PILLER UPPER GARNISH	62420A	-	-	-

for Gasoline Model

for HEV Model

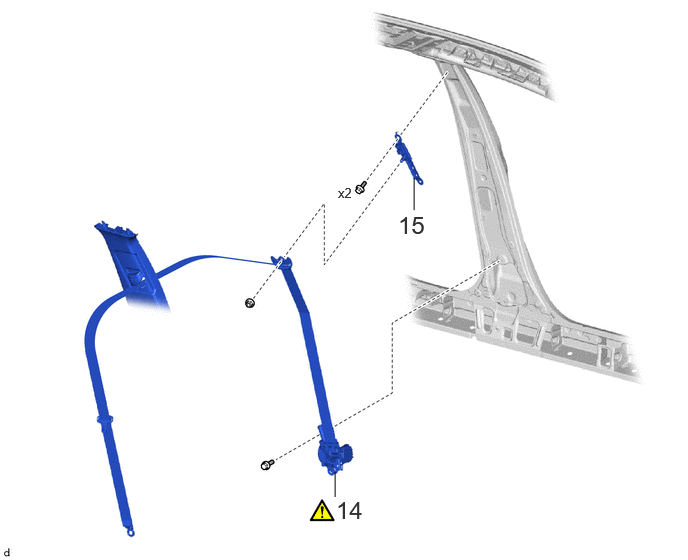

3.49,4.917 3.49,5.177 false 4.313,1.854 4.313,2.188 false 3.5,5.167 4.052,5.521 0.552,0.354 18 false 14 4.146,2.198 4.698,2.552 0.552,0.354 18 false 15 3.521,1.927 3.833,2.125 0.313,0.198 10 false x2

Procedure		Part Name Code
14	FRONT SEAT OUTER BELT ASSEMBLY	73220	(202307,999999,_58,_114202,_0509300,RM100000002BZY7_02_0006,)	-	-
15	FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY	73200A	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front seat outer belt assembly removal/installation are shown below.

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:: If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3,

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the driver side and front passenger side.

The procedure listed below is for the driver side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.; Click here(202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 73350C 3.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0030,

Hide Display 4.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0022,)

Hide Display 72693 5.REMOVE REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0001,

Hide Display 67914B 6.REMOVE FRONT DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0001,

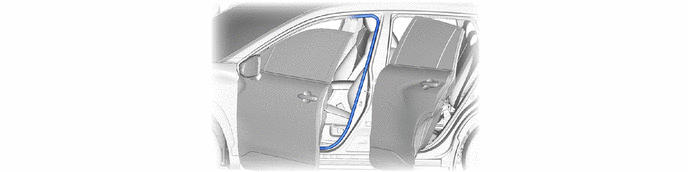

Hide Display 62312B 7.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

Hide Display 67918A 8.REMOVE REAR DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0002,

Hide Display 62332A 9.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

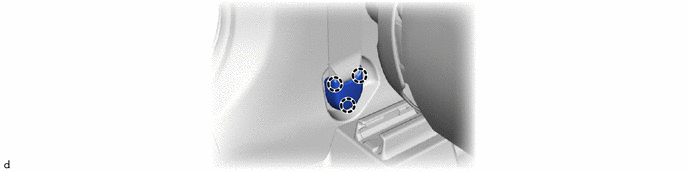

Hide Display 73233 10.REMOVE LAP BELT OUTER ANCHOR COVER

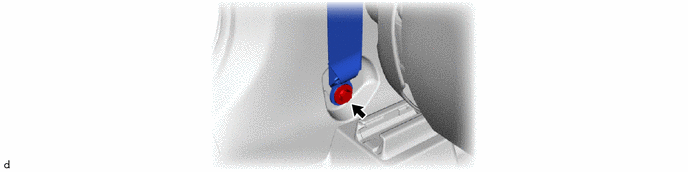

Hide Display 73220 11.DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

Hide Display 62414A 12.REMOVE CENTER PILLAR LOWER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0004,

Hide Display 62420A 13.REMOVE CENTER PILLER UPPER GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0217,

Hide Display 73220 14.REMOVE FRONT SEAT OUTER BELT ASSEMBLY

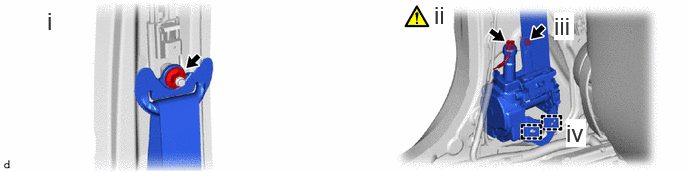

0.49,0.073 0.771,0.427 0.281,0.354 18 false i 4.521,0.01 4.719,0.323 0.198,0.313 18 false ii 5.771,0.125 5.979,0.417 0.208,0.292 18 true iii 5.896,1.24 6.104,1.531 0.208,0.292 18 true iv

Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.

ii.

Disconnect the pretensioner connector.

HINT:: Refer to How to Connector or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

iii.

Remove the bolt.

iv.

Disengage the 2 guides to remove the front seat outer belt assembly.

Hide Display 73200A 15.REMOVE FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
