RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509298 OCCUPANT DETECTION SENSOR A

SEAT BELT OCCUPANT DETECTION SENSOR REMOVAL

CAUTION / NOTICE / HINT

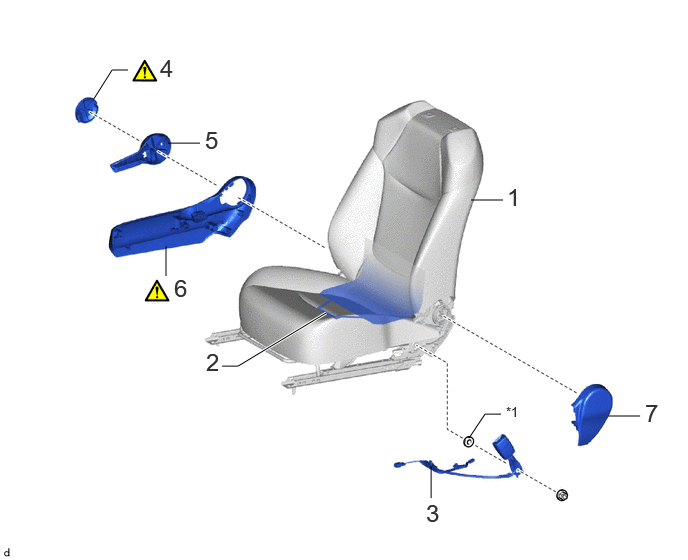

COMPONENTS (REMOVAL)

4.906,2.083 5.24,2.083 false 0.969,1.042 1.167,0.729 1.167,0.729 1.333,0.729 false 1.729,2.875 1.729,2.563 false 4.49,5.188 4.49,4.854 false 2.313,3.813 2.479,3.813 2.479,3.813 3.396,3.26 true 4.885,4.563 5.052,4.313 5.052,4.313 5.219,4.313 false 1.75,1.49 2.083,1.49 false 6.333,4.333 6.667,4.333 false 5.281,1.906 5.948,2.292 0.667,0.385 18 false 1 4.438,5.198 5.104,5.583 0.667,0.385 18 false 3 1.667,0.563 2.333,0.948 0.667,0.385 18 false 4 2.135,1.313 2.802,1.698 0.667,0.385 18 false 5 1.813,2.854 2.479,3.24 0.667,0.385 18 false 6 6.719,4.156 6.938,4.438 0.219,0.281 18 false 7 2.146,3.625 2.813,4.01 0.667,0.385 18 false 2 5.271,4.208 5.583,4.406 0.313,0.198 10 false *1

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY	-	(202307,999999,_58,_114202,_0509298,RM100000002BZY5_02_0096,)	-	-
2	SEPARATE TYPE FRONT SEATBACK COVER	71073S	-	-	-
3	FRONT SEAT INNER BELT ASSEMBLY	73230	-	-	-
4	RECLINING HINGE COVER	72551B	-	-	-
5	RECLINING ADJUSTER RELEASE HANDLE	72525A	-	-	-
6	FRONT SEAT CUSHION SHIELD	71811D	(202307,999999,_58,_114202,_0509298,RM100000002BZY5_02_0101,)	-	-
7	FRONT SEAT INNER CUSHION SHIELD	71861	-	-	-

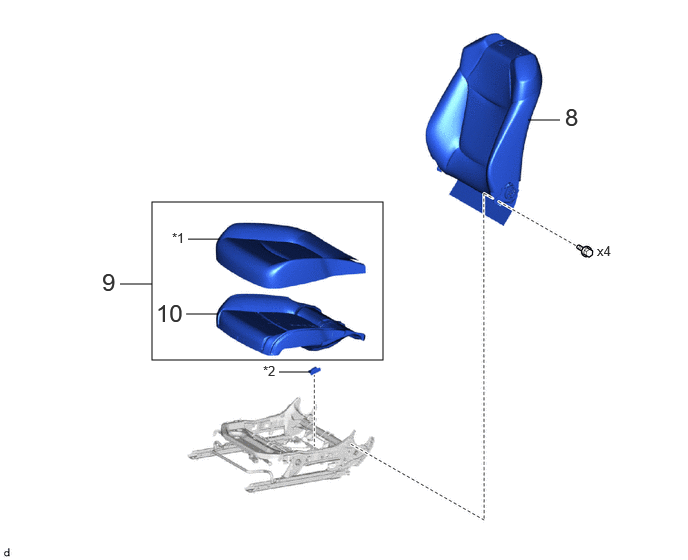

Front Seat Belt Anchor Plate

1.583,2.104 3.99,3.75 2.406,1.646 1.958,2.49 2.292,2.49 false 1.938,3.271 2.271,3.271 false 5.5,1.25 5.833,1.25 false 2.906,3.875 3.24,3.875 false 1.25,2.958 1.583,2.958 false 5.885,1.073 6.438,1.427 0.552,0.354 18 false 8 1.625,3.115 2.177,3.469 0.552,0.354 18 false 10 1.063,2.792 1.615,3.146 0.552,0.354 18 false 9 1.792,2.396 2.104,2.594 0.313,0.198 10 false *1 6.219,2.531 6.531,2.729 0.313,0.198 10 false x4 2.74,3.781 3.052,3.979 0.313,0.198 10 false *2

Procedure		Part Name Code
8	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-
9	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-
10	OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)	71511S	-	-	-

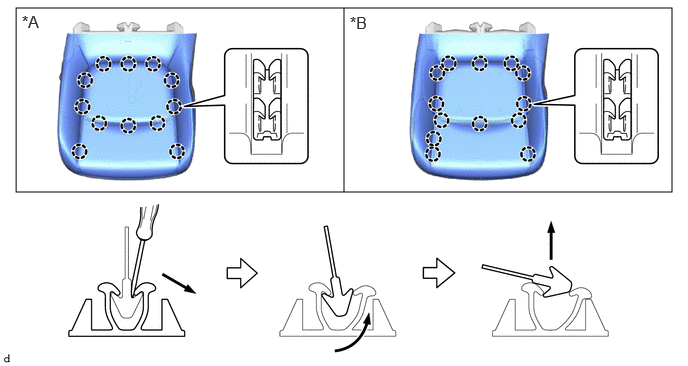

SEPARATE TYPE FRONT SEAT CUSHION COVER

CONNECTOR HOLDER

CAUTION / NOTICE / HINT

CAUTION:: ·

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:: If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.; Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3,

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1:for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-
