SEAT  LUMBAR SUPPORT ADJUSTER ASSEMBLY  REMOVAL

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_114203,_0509295,RM100000002BZY4_07_0027,)	-	-

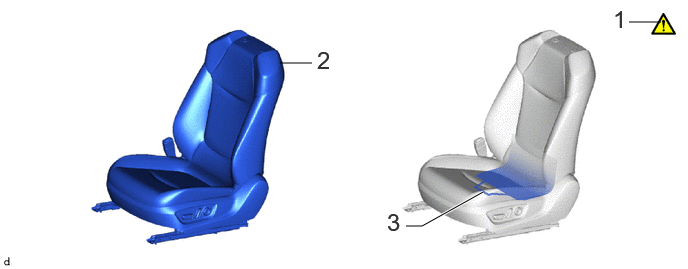

2	FRONT SEAT ASSEMBLY	-	-	-	-
3	SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-

Procedure		Part Name Code

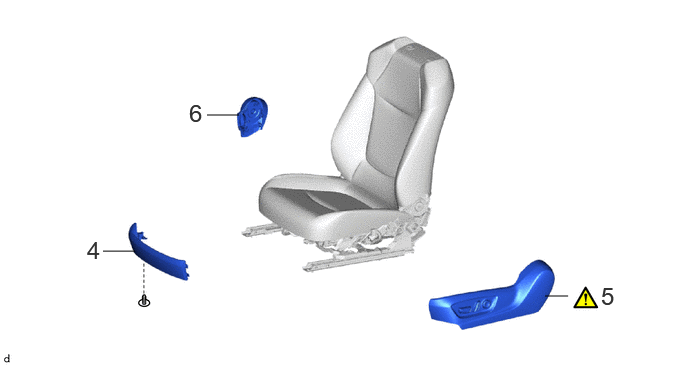

4	FRONT SEAT FRONT CUSHION SHIELD	71868N	-	-	-
5	FRONT SEAT CUSHION SHIELD	71812D	(202307,999999,_58,_114203,_0509295,RM100000002BZY4_07_0030,)	-	-
6	FRONT SEAT INNER CUSHION SHIELD	71862	-	-	-

Procedure		Part Name Code

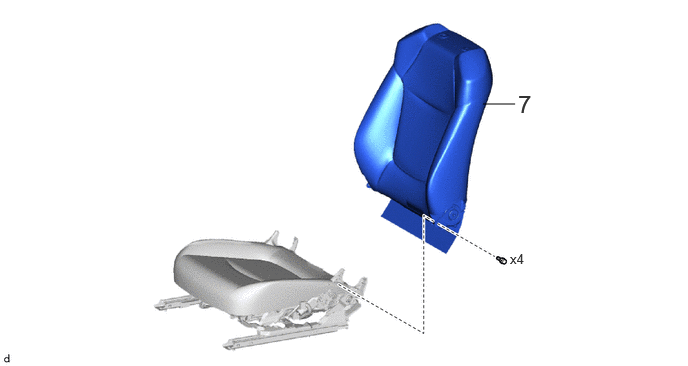

7	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-

Procedure		Part Name Code

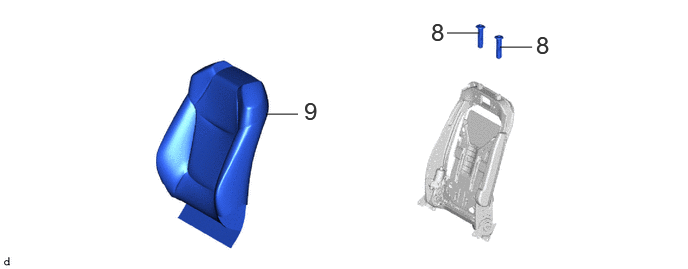

8	FRONT SEAT HEADREST SUPPORT	71931	-	-	-
9	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-	-	-

Procedure		Part Name Code

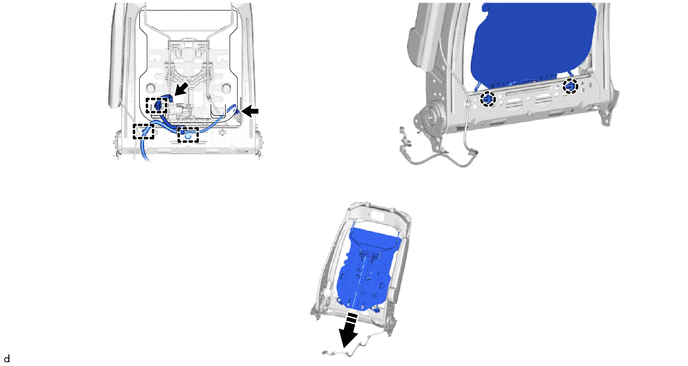

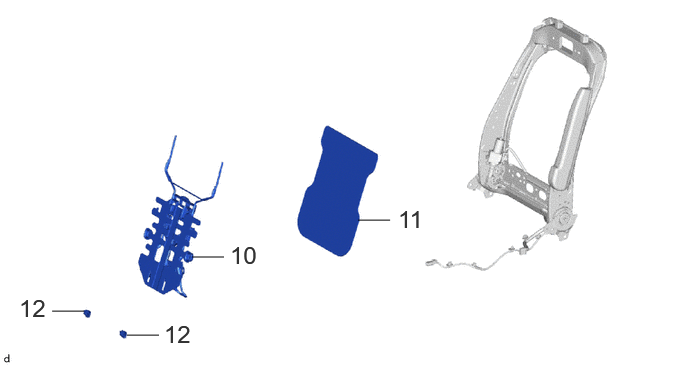

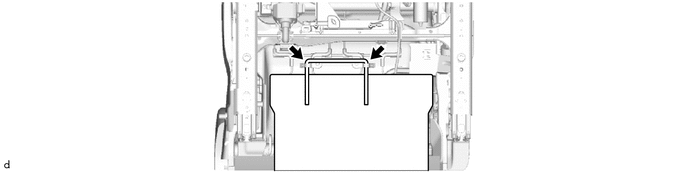

10	LUMBAR SUPPORT ADJUSTER ASSEMBLY	72760D	-	-	-
11	FRONT SEATBACK FELT	79977H	-	-	-
12	FRONT SEATBACK EDGE PROTECTOR	71587	-	-	-

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during lumbar support adjuster assembly removal/installation are shown below.

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3,

HINT:

·

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.
