SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  INSTALLATION


CAUTION / NOTICE / HINT

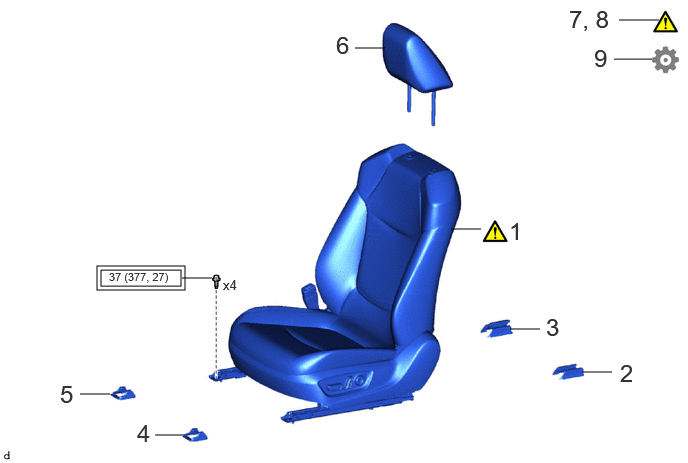

COMPONENTS (INSTALLATION)
B631794N01
1.052,2.813 1.885,2.979 0.833,0.167 1.01,2.771 1.927,3.021 0.917,0.25 6.448,0.208 6.865,0.208 false 3.698,0.5 4.01,0.5 false 1.615,4.531 1.927,4.531 false 0.833,4.104 1.146,4.104 false 5.313,3.427 5.625,3.427 false 6.063,3.875 6.375,3.875 false 6.396,0.615 6.792,0.615 false 1.896,2.896 2.208,2.896 false 4.698,2.385 5.01,2.385 false 5.927,0.052 6.688,0.396 0.76,0.344 18 false 7, 8 3.5,0.323 3.781,0.677 0.281,0.354 18 false 6 1.427,4.365 1.708,4.719 0.281,0.354 18 false 4 0.625,3.958 0.906,4.313 0.281,0.354 18 false 5 6.458,3.74 6.74,4.094 0.281,0.354 18 false 2 5.688,3.26 5.969,3.615 0.281,0.354 18 false 3 5.302,2.26 5.583,2.615 0.281,0.354 18 false 1 2.323,2.885 2.635,3.083 0.313,0.198 10 false x4 6.188,0.458 6.563,0.771 0.375,0.313 18 false 9 1.135,2.813 1.865,3.031 0.729,0.219 8 false 37 (377, 27)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT SEAT ASSEMBLY - (Click here) - -
2 SEAT TRACK OUTER COVER 72138 - - -
3 SEAT TRACK BRACKET INNER COVER 72158 - - -
4 FRONT SEAT TRACK BRACKET OUTER COVER 72124 - - -
5 FRONT SEAT TRACK BRACKET INNER COVER 72128A - - -
6 FRONT SEAT HEADREST ASSEMBLY 71910A - - -
7 INSPECT FRONT SEAT ASSEMBLY - (Click here) - -
8 INSPECT SRS WARNING LIGHT - (Click here) - -
9 INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL - - - (Click here)

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

CAUTION / NOTICE / HINT

CAUTION:
·
B394717

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION

·

Wear protective gloves. Sharp areas on the parts may injure your hands.



HINT:

Power seat is available only on the driver side.


PROCEDURE

Hide 1.INSTALL FRONT SEAT ASSEMBLY

a.
B582446N01
0.396,0.01 0.667,0.344 0.271,0.333 18 false i

i.

Place the front seat assembly in the cabin.

NOTICE:
·

2 or more people are required when reinstalling the front seat assembly into the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly, body exterior or body interior.





b.
B631808C01
5.521,1.281 5.896,1.031 5.896,1.031 5.667,0.719 true 1.656,3.729 1.083,3.625 1.083,3.625 1.229,3.458 true 0.354,0.063 0.635,0.417 0.281,0.354 18 false i 3.938,0.063 4.219,0.417 0.281,0.354 18 false ii 0.458,1.854 0.74,2.208 0.281,0.354 18 false iii 3.927,1.938 4.167,2.25 0.24,0.313 18 true iv 1.396,5.396 1.635,5.708 0.24,0.313 18 true v 0.896,5.083 1.135,5.396 0.24,0.313 18 true vi 3.104,5.479 3.344,5.792 0.24,0.313 18 true vi 5.375,5.5 5.677,5.823 0.302,0.323 18 true vii 4.813,5.198 5.156,5.51 0.344,0.313 18 true viii 5.938,5.24 6.281,5.563 0.344,0.323 18 true viii 5.948,0.938 6.177,1.135 0.229,0.198 10 true *a 0.802,3.563 1.031,3.76 0.229,0.198 10 true *b
*a Clamp *b Location Pin


i.

Connect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



ii.

Engage the clamps and connect the 2 connectors under the front seat assembly.


iii.

Insert the 2 location pins of the front seat assembly through the 2 body holes, place the front seat assembly and make sure that the inner and outer seat tracks are locked securely.


iv.

Connect the cable to the negative (-) auxiliary battery terminal.

·

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION

·

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION



v.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.


vi.

Temporarily install the 2 bolts on the front side of the front seat assembly.


vii.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the frontmost position.


viii.

Temporarily install the 2 bolts on the rear side of the front seat assembly.



c.
B625325N01
1.563,1.479 1.75,1.76 0.188,0.281 18 true i 1.458,0.792 1.646,1.073 0.188,0.281 18 true ii 3.313,1.25 3.5,1.531 0.188,0.281 18 true ii 5.573,1.302 5.781,1.573 0.208,0.271 18 true iii 6.833,0.74 7.042,1.01 0.208,0.271 18 true iv 4.385,0.719 4.594,0.99 0.208,0.271 18 true iv

i.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.


ii.

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the front side of the front seat assembly in the order shown in the illustration.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)


iii.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the frontmost position.


iv.

Using a T50 "TORX" socket wrench, tighten the 2 bolts on the rear side of the front seat assembly in the order shown in the illustration.

Torque:
37 N*m (377 kgf*cm, 27 ft.*lbf)



Hide 72138 2.INSTALL SEAT TRACK OUTER COVER

Hide 72158 3.INSTALL SEAT TRACK BRACKET INNER COVER

Hide 72128A 4.INSTALL FRONT SEAT TRACK BRACKET OUTER COVER

Hide 71910A 5.INSTALL FRONT SEAT TRACK BRACKET INNER COVER

Hide 71910A 6.INSTALL FRONT SEAT HEADREST ASSEMBLY

Hide 7.INSPECT FRONT SEAT ASSEMBLY

Z101186

Click here(Click here)

Hide 8.INSPECT SRS WARNING LIGHT

Z101186

Click here(Click here)

Hide 9. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
