RM38T0EC _58 Vehicle Interior _114203 SEAT _0506148 FRONT POWER SEAT CONTROL SYSTEM D

SEAT FRONT POWER SEAT CONTROL SYSTEM OPERATION CHECK

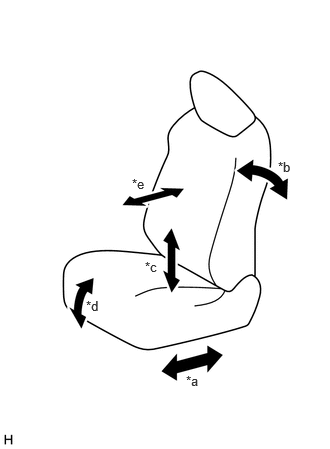

CHECK POWER SEAT FUNCTION

1.938,3.885 2.156,4.073 0.219,0.188 10 false *a 2.896,1.656 3.167,1.917 0.271,0.26 10 false *b 1.51,2.698 1.74,2.969 0.229,0.271 10 false *c 0.896,3.104 1.135,3.385 0.24,0.281 10 false *d 1.375,1.833 1.635,2.094 0.26,0.26 10 false *e

*a	Slide Function
*b	Reclining Function
*c	Lifter Function
*d	Front Vertical Function
*e	Lumbar Support Adjustment Function

Check the basic functions.

Operate the power seat switches and check that each seat function operates properly:

Slide function

Reclining function

Lifter function

Front vertical function

Lumbar support adjustment function

CHECK FRONT SEAT MOTOR (SLIDING, RECLINING, FRONT VERTICAL AND LIFTER FUNCTION)

Check the PTC operation inside the power seat motor.

NOTICE:: ·

The inspection should be performed with the seat installed in the vehicle.

·

Perform the 4 steps below to check the full range of motion for each power seat function.

HINT:: The resistance of the PTC thermistor increases when a switch of the front power seat switch is held down even after the seat has been moved to the farthest possible position in one direction. If the resistance increases beyond a specified level, the current is shut off to prevent a short circuit.

Choose a power seat function. Operate a switch of the front power seat switch and move the seat to the farthest possible position in one direction. Keep the seat in that position for approximately 60 seconds.

ii.

Operate the switch of the front power seat switch again and continue to try to move the seat in the same direction as in the previous step. Measure the time until the current is shut off (motor operation sound will stop).

Standard:: 4 to 90 seconds

iii.

After the current is shut off, release the switch of the front power seat switch and wait for approximately 60 seconds.

iv.

Operate the same switch of the front power seat switch and move the seat in the opposite direction. Check that the motor operates.

CHECK LUMBAR SUPPORT ADJUSTMENT MOTOR

Check the PTC operation inside the lumbar support adjustment motor.

NOTICE:: The inspection should be performed with the seat installed in the vehicle.

Operate the front power seat switch LH and move the lumbar support to either the foremost or rearmost position. Keep the seat in that position for approximately 60 seconds.

ii.

Operate the front power seat switch LH again and continue to try to move the lumbar support in the same direction as in the previous step. Measure the time until the current is shut off (motor operation sound will stop).

Standard:: 4 to 90 seconds

iii.

After the current is shut off, release the front power seat switch LH and wait for approximately 60 seconds.

iv.

Operate the front power seat switch LH and move the support in the opposite direction. Check that the motor operates.
