SUPPLEMENTAL RESTRAINT SYSTEMS FRONT SEAT SIDE AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

0.167,2.5 7,5.667 6.833,3.167 0.167,0.333 2.333,2.333 2.167,2 4.333,5.406 4.333,5.073 false 3.667,1.594 3.667,1.26 false 1.625,1.677 1.625,1.344 false 5.844,0.667 6.177,0.667 false 4.24,3.396 4.573,3.396 false 4.25,4.583 4.583,4.583 false 3.948,1.115 3.948,0.781 false 1.635,1.073 1.635,0.74 false 2.115,4 3.031,4 true 4.635,3.229 4.917,3.583 0.281,0.354 18 false 1 0.167,0.083 0.542,0.323 0.375,0.24 12 false *A 4.281,5.396 4.563,5.75 0.281,0.354 18 false 3 3.615,1.573 3.896,1.927 0.281,0.354 18 false 3 1.573,1.656 1.854,2.01 0.281,0.354 18 false 3 0.25,0.427 0.625,0.667 0.375,0.24 12 false *B 0.25,2.594 0.625,2.833 0.375,0.24 12 false *C 6.24,0.5 6.521,0.854 0.281,0.354 18 false 1 4.625,4.479 4.938,4.677 0.313,0.198 10 false *1 3.896,1.125 4.208,1.323 0.313,0.198 10 false *1 1.573,1.094 1.885,1.292 0.313,0.198 10 false *1 1.938,3.844 2.219,4.198 0.281,0.354 18 false 2

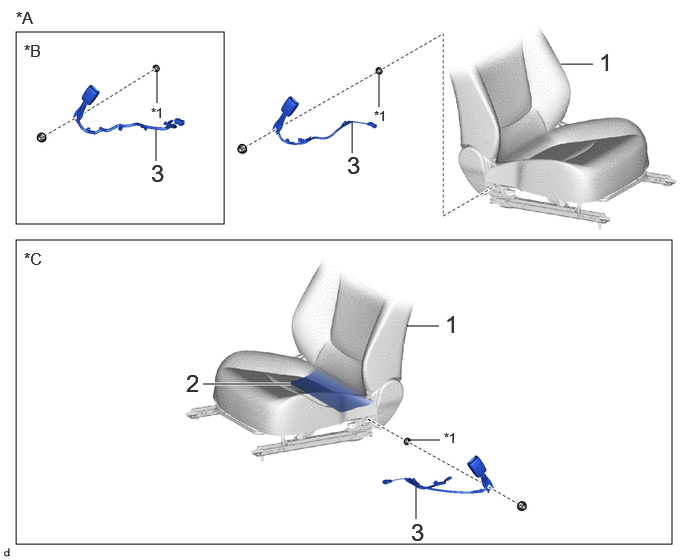

Procedure		Part Name Code
1	FRONT SEAT ASSEMBLY	-	-	-	-
2	SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-
3	FRONT SEAT INNER BELT ASSEMBLY	73240	-	-	-

*A	for Driver Side Manual Seat	*B	for Driver Side Power Seat
*C	for Front Passenger Seat	-	-
*1	FRONT SEAT BELT ANCHOR PLATE	-	-

4.083,0.167 7,2.25 2.917,2.083 3.583,3 6,5.583 2.417,2.583 0.167,3.417 3.417,5.583 3.25,2.167 4.615,4.958 4.615,4.625 false 5.677,5.26 5.677,4.927 false 5.198,5.094 5.198,4.76 false 6.375,5.208 6.375,4.875 false 6.99,5.448 6.99,5.115 false 6.313,1.74 6.313,1.406 false 4.99,1.396 4.99,1.063 false 4.104,3.813 4.104,3.479 false 0.427,1.531 0.427,1.198 false 2.573,5.031 2.573,4.698 false 1.021,4.906 1.021,4.573 false 5.625,5.26 5.906,5.615 0.281,0.354 18 false 4 6.917,5.458 7.146,5.792 0.229,0.333 18 false 5 6.323,5.219 6.604,5.573 0.281,0.354 18 false 6 5.125,5.104 5.406,5.458 0.281,0.354 18 false 7 0.969,4.906 1.25,5.26 0.281,0.354 18 false 8 6.177,1.75 6.625,2.094 0.448,0.344 18 false 10 4.167,0.25 4.542,0.49 0.375,0.24 12 false *B 3.667,3.083 3.958,3.323 0.292,0.24 12 false *A 5.01,1.396 5.292,1.75 0.281,0.354 18 false 9 2.531,5.042 2.813,5.396 0.281,0.354 18 false 9 4.615,4.958 4.896,5.313 0.281,0.354 18 false 9 0.313,1.521 0.76,1.865 0.448,0.344 18 false 10 3.99,3.844 4.438,4.188 0.448,0.344 18 false 11 0.24,3.49 0.531,3.729 0.292,0.24 12 false *C

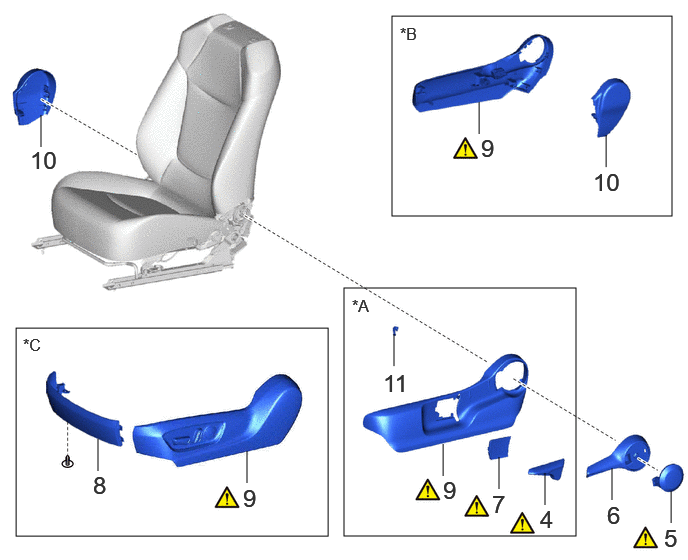

Procedure		Part Name Code
4	VERTICAL ADJUSTING HANDLE	72495	(202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0077,)	-	-
5	RECLINING HINGE COVER	72552B	(202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0078,)	-	-
6	RECLINING ADJUSTER RELEASE HANDLE	72526	-	-	-
7	SEAT ADJUSTER COVER CAP	71849	(202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0080,)	-	-
8	FRONT SEAT FRONT CUSHION SHIELD	71868N	-	-	-
9	FRONT SEAT CUSHION SHIELD	71812D	(202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0081,)	-	-
10	FRONT SEAT INNER CUSHION SHIELD	71862	-	-	-
11	VERTICAL ADJUSTER BRACKET COVER	72498A	-	-	-

*A	for Driver Side Manual Seat	*B	for Front Passenger Seat
*C	for Driver Side Power Seat	-	-

4.75,1.583 5.083,1.583 false 5.125,1.427 5.677,1.781 0.552,0.354 18 false 12 5.146,2.5 5.458,2.698 0.313,0.198 10 false x4

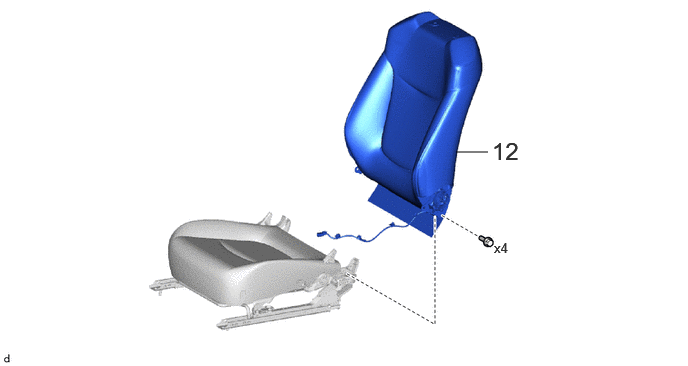

Procedure		Part Name Code
12	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-

1.75,3.177 1.75,2.844 false 4.927,0.406 5.427,0.406 false 5.229,0.417 5.229,0.667 5.229,0.667 5.646,0.667 false 1.615,3.229 2.167,3.583 0.552,0.354 18 false 14 4.594,0.24 5.146,0.594 0.552,0.354 18 false 13

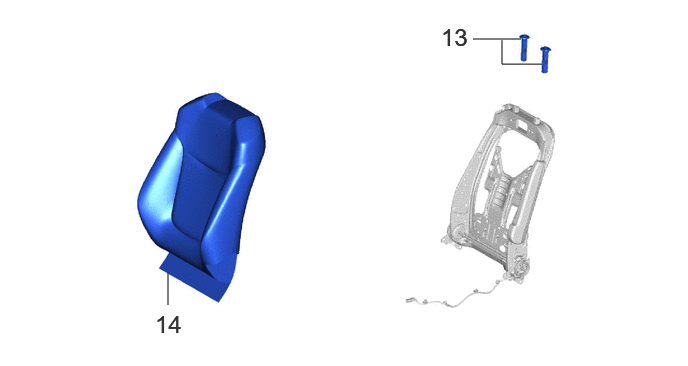

Procedure		Part Name Code
13	FRONT SEAT HEADREST SUPPORT	71931	-	-	-
14	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-	-	-

*A	w/ Heater	-	-
*1	SEPARATE TYPE FRONT SEATBACK PAD	-	-
●	Non-reusable part	-	-

2.094,1.375 2.094,1.042 false 4.479,3.469 4.479,3.135 false 4.542,3.438 5.094,3.792 0.552,0.354 18 false 15 1.865,0.927 2.177,1.125 0.313,0.198 10 false x2 2.052,1.375 2.365,1.573 0.313,0.198 10 false ●

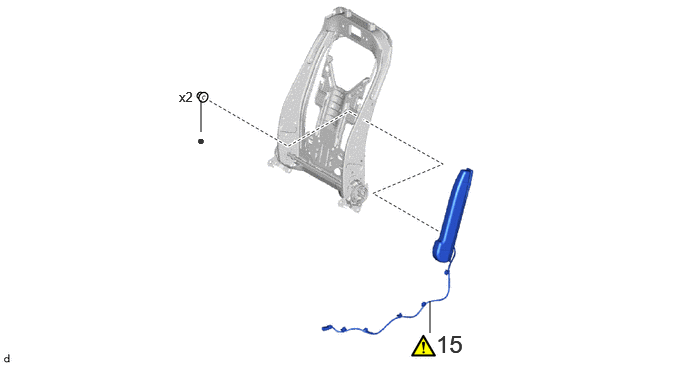

Procedure		Part Name Code
15	FRONT SEAT AIRBAG ASSEMBLY	73920A	(202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0005,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

CAUTION:: ·

Be sure to read precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,

·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1.REMOVE FRONT SEAT ASSEMBLY

for Manual Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>REMOVAL202307,999999,_58,_114203,_0509291,RM100000002BZXU,

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>REMOVAL202307,999999,_58,_114203,_0509292,RM100000002BZXX,

Hide Display 71074S 2.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0091,

Hide Display 73240 3.REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY>REMOVAL202307,999999,_58,_114202,_0509299,RM100000002BZY6_02_0086,

Hide Display 72495 4.REMOVE VERTICAL ADJUSTING HANDLE (for Driver Side)

Click here(

202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0003,)

Hide Display 72552B 5.REMOVE RECLINING HINGE COVER

Click here(

202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0113,)

Hide Display 72526 6.REMOVE RECLINING ADJUSTER RELEASE HANDLE

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0060,

Hide Display 71849 7.REMOVE SEAT ADJUSTER COVER CAP (for Driver Side)

Click here(

202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0106,)

Hide Display 71868N 8.INSTALL FRONT SEAT FRONT CUSHION SHIELD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0005,

Hide Display 71812D 9.REMOVE FRONT SEAT CUSHION SHIELD

for Driver Side Manual Seat:

Click here(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0061,)

for Front Passenger Side Manual Seat:

Click here(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0137,)

for Power Seat:

Click here(202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0008,)

Hide Display 71862 10.REMOVE FRONT SEAT INNER CUSHION SHIELD

for Driver Side Manual Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0062,

for Front Passenger Side Manual Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0138,

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0009,

Hide Display 72498A 11.REMOVE VERTICAL ADJUSTER BRACKET COVER (for Driver Side)

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0108,

Hide Display 12.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

for Manual Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0064,

for Power Seat:

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Power Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509292,RM10000000204I6_04_0051,

Hide Display 71931 13.REMOVE FRONT SEAT HEADREST SUPPORT

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0068,

Hide Display 14.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0080,

Hide Display 73920A 15.REMOVE FRONT SEAT AIRBAG ASSEMBLY

CAUTION:: ·

When storing the front seat airbag assembly, keep the airbag deployment side facing upward.

·

If the airbag deploys for any reason, it may cause a serious accident.

1.646,0.073 1.927,0.427 0.281,0.354 18 false i 4.177,0.063 4.458,0.417 0.281,0.354 18 false ii

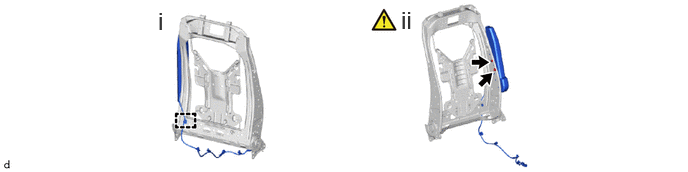

Disengage the clamp.

ii.

Remove the 2 nuts and front seat airbag assembly.

CAUTION:: ·

Do not reuse the nut.

·

If the installation surface or surrounding area of the front seat airbag assembly is deformed or damaged, replace the front seatback frame sub-assembly LH with a new one.
