RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510624 SPIRAL CABLE A

SUPPLEMENTAL RESTRAINT SYSTEMS SPIRAL CABLE INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

3.667,2.417 5.917,4 2.25,1.583 5.917,3.333 6.25,3.333 false 6.531,0.219 6.865,0.219 false 6.448,0.615 6.781,0.615 false 6.5,1.052 6.833,1.052 false 2.25,5.083 2.583,5.083 false 2.167,1.667 2.5,1.667 false 3.438,0.917 3.771,0.917 false 5,3.667 5,3.333 false 4.167,3.604 4.167,3.469 false 5.375,0.063 6.531,0.396 1.156,0.333 18 false 1, 3, 7, 10 4.25,3.563 4.5,3.813 0.25,0.25 18 false 2 6.125,0.458 6.542,0.708 0.417,0.25 18 false 11 6.302,0.896 6.552,1.229 0.25,0.333 18 false 9 2.625,4.906 2.958,5.156 0.333,0.25 18 false 6 2.552,1.479 2.969,1.729 0.417,0.25 18 false 5 2.615,4.635 2.927,4.833 0.313,0.198 10 false x3 4.927,3.698 5.24,3.896 0.313,0.198 10 false *1 6.583,3.146 6.833,3.396 0.25,0.25 18 false 4 3.25,0.75 3.5,1 0.25,0.25 18 false 8

Procedure		Part Name Code
1	INSPECT SPIRAL CABLE SUB-ASSEMBLY	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0062,)	-	-
2	STEERING SENSOR	89245B	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0063,)	-	-
3	PLACE FRONT WHEELS FACING STRAIGHT AHEAD	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0046,)	-	-
4	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0040,)	-	-
5	UPPER STEERING COLUMN COVER	45286B	-	-	-
6	LOWER STEERING COLUMN COVER	45287	-	-	-
7	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0004,)	-	-
8	STEERING WHEEL ASSEMBLY	45100	-	-	-
9	CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
10	INSPECT SRS WARNING LIGHT	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0073,)	-	-
11	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-	(202307,999999,_58,_115188,_0510624,RM100000002BZWF_01_0075,)

SPIRAL CABLE SUB-ASSEMBLY

PROCEDURE

Hide Display 84306 1.INSPECT SPIRAL CABLE SUB-ASSEMBLY

2.458,0.469 3.146,0.469 true 2.448,0.74 3.146,0.542 true 2.896,1.135 2.323,1.063 2.323,1.063 3.042,1.063 true 2.448,0.083 2.729,0.438 0.281,0.354 18 false i 2.281,0.375 2.594,0.573 0.313,0.198 10 false *a 2.125,0.948 2.354,1.146 0.229,0.198 10 true *b 2.271,0.656 2.583,0.854 0.313,0.198 10 false *c

*a	Check Window	*b	Matchmark
*c	Top of Flat Cable U-turn	-	-

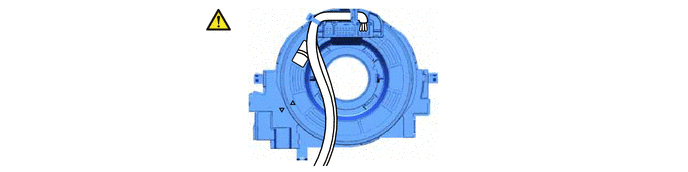

Check if the spiral cable sub-assembly is centered.

OK:: The connector is at the top.; The matchmarks are aligned.; The top of the flat cable U-turn can be checked from the check window.

1.542,1.031 1.917,0.573 true 5.323,0.448 5.604,0.969 true 2.438,2.542 3.146,2.542 true 2.458,2.844 3.156,2.615 true 2.906,3.208 2.281,3.094 2.281,3.094 3.031,3.115 true 0.448,0.083 0.729,0.438 0.281,0.354 18 false i 1.948,0.469 2.26,0.667 0.313,0.198 10 false *a 2.25,2.438 2.563,2.635 0.313,0.198 10 false *b 2.281,2.771 2.594,2.969 0.313,0.198 10 false *d 2.094,3 2.302,3.198 0.208,0.198 10 false *c 5.167,0.302 5.479,0.5 0.313,0.198 10 false *a 0.083,0.417 0.365,0.771 0.281,0.354 18 false 1 2.417,0.417 2.698,0.771 0.281,0.354 18 false 2 4.667,0.417 4.948,0.771 0.281,0.354 18 false 3 2.417,2.167 2.698,2.521 0.281,0.354 18 false 4

*a	Interlock	*b	Check Window
*c	Matchmark	*d	Top of Flat Cable U-turn
	Rotation Direction	-	-

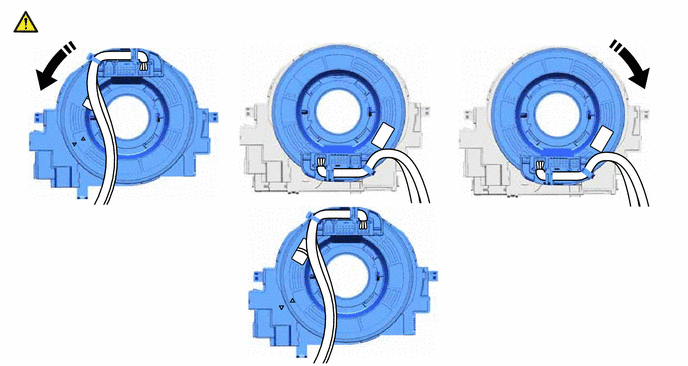

If the spiral cable sub-assembly is not centered, center it.

NOTICE:: Make sure to observe the following precautions, otherwise the spiral cable sub-assembly may be damaged.; ·

Release the interlock before rotating the spiral cable sub-assembly.

·

Do not rotate the spiral cable sub-assembly using the airbag wire harness.

·

Do not rotate the spiral cable sub-assembly with excessive force.

While pushing on the interlock indicated in the illustration, rotate the spiral cable with sensor sub-assembly counterclockwise slowly by hand until it stops.

NOTICE:: Make sure to rotate the spiral cable with sensor sub-assembly counterclockwise. If rotated clockwise, it may be damaged or centering may no longer be possible.

HINT:: The interlock operates at the top and bottom of the connector.

If the spiral cable with sensor sub-assembly stops rotating and the connector has moved past the bottom, return the connector to the bottom as shown in the illustration.

While pushing on the interlock, rotate the spiral cable with sensor sub-assembly clockwise approximately 2.5 times to move the connector from the bottom to the top.

NOTICE:: If the connector is rotated clockwise from the bottom 5 times or more, the spiral cable with sensor sub-assembly may be damaged.

HINT:: The interlock operates at the top and bottom of the connector.

Check that the spiral cable with sensor sub-assembly is center position.

OK:: The connector is at the top.; The matchmarks are aligned.; The colored roller or the top of the flat cable U-turn can be checked from the check window.

NOTICE:: If the spiral cable with sensor sub-assembly cannot be centered, it is possible that the spiral cable sub-assembly is broken. Replace the spiral cable sub-assembly with a new one.

Hide Display 89245B 2.INSTALL STEERING SENSOR

NOTICE:: Remove the steering sensor from the spiral cable sub-assembly only when replacing the spiral cable sub-assembly.

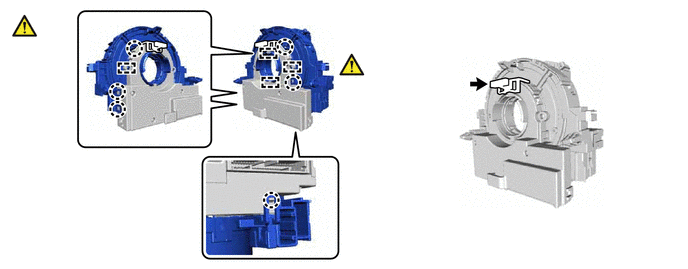

Align the 2 pins and 2 guides, and engage the 6 claws to install the spiral cable sub-assembly to the steering sensor.

4.958,0.417 5.208,0.865 true 3.833,0.51 4.115,0.865 0.281,0.354 18 false i 4.688,0.719 5.24,1.073 0.552,0.354 18 false iii 4.844,0.26 5.156,0.458 0.313,0.198 10 false *a 3.167,0.635 3.385,0.813 0.219,0.177 10 true *b 0.417,0.104 0.969,0.458 0.552,0.354 18 false ii 0.99,0.604 1.208,0.781 0.219,0.177 10 true *b

Lock Pin

Guide

Align the guides to install the steering sensor to the spiral cable sub-assembly.

ii.

Engage the claws to install the steering sensor to the spiral cable sub-assembly.

NOTICE:: ·

Do not remove the lock pin before the spiral cable sub-assembly is installed to the steering sensor.

·

Do not damage the pins of the spiral cable sub-assembly or guides of the steering sensor.

·

The spiral cable sub-assembly can be rotated up to 30° even when the interlock is engaged. Therefore, make sure that both guides are aligned properly when installing the spiral cable sub-assembly to the steering sensor.

iii.

Remove the lock pin from the steering sensor.

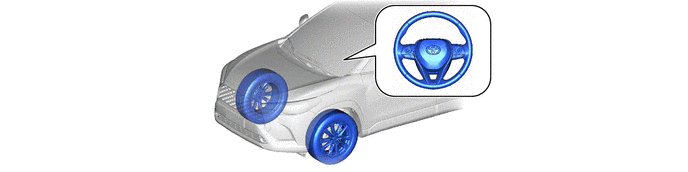

Hide Display 3.PLACE FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 4.INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

NOTICE:: ·

Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch on (IG).

·

Do not rotate the spiral cable with sensor sub-assembly with the battery connected and the ignition switch on (IG).

·

When rotating the spiral cable with sensor sub-assembly to check the operation of the spiral cable with sensor sub-assembly (checking for abnormal noise, checking the DTC, Data list, etc.) make sure to perform the inspection with the steering wheel assembly installed.

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

0.094,0.042 0.375,0.396 0.281,0.354 18 false i 4.438,0.042 4.719,0.396 0.281,0.354 18 false ii

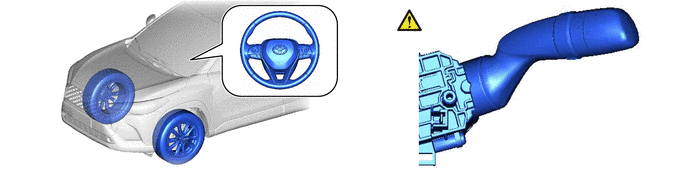

Check that the front wheels are aligned facing straight ahead.

ii.

Set the turn signal switch to the neutral position.

NOTICE:: If it is not in the neutral position, the turn signal switch cancel ratchet may snap.

3.917,1.625 4.198,1.979 0.281,0.354 18 false i 0.271,2.51 0.823,2.865 0.552,0.354 18 false ii 1.708,1.469 2.26,1.823 0.552,0.354 18 false iii 0.417,0.146 0.969,0.5 0.552,0.354 18 false iv

Engage the claw and clip to install the spiral cable with sensor sub-assembly.

ii.

Install the wire harness to the spiral cable with sensor sub-assembly.

iii.

Connect each connector.

iv.

Connect the airbag connector.

NOTICE:: When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

Hide Display 45286B 5.INSTALL UPPER STEERING COLUMN COVER

Hide Display 45287 6.INSTALL LOWER STEERING COLUMN COVER

Hide Display 84306 7.ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

NOTICE:: Do not rotate the spiral cable with sensor sub-assembly with the battery connected and the ignition switch on (IG).

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	Illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

2.094,0.448 3.25,0.635 true 2.094,1.083 3.229,0.698 true 2.49,0.063 2.771,0.417 0.281,0.354 18 false i 1.927,0.344 2.24,0.542 0.313,0.198 10 false *a 1.917,1.01 2.229,1.208 0.313,0.198 10 false *b

Check Window

Top of Flat Cable U-turn

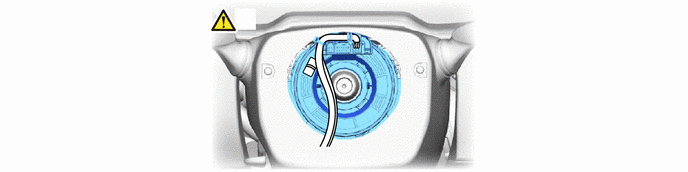

Check that the spiral cable with sensor sub-assembly is center position.

OK:: The connector is at the top.; The top of the flat cable U-turn can be checked from the check window.

0.188,1.063 1.188,1.063 true 4.823,1.063 5.823,1.063 true 2.365,2.594 3.365,2.594 true 2.375,3.042 3.365,2.646 true 0.406,0.083 0.688,0.438 0.281,0.354 18 false i 0.083,0.333 0.365,0.688 0.281,0.354 18 false 1 2.417,0.313 2.698,0.667 0.281,0.354 18 false 2 2.417,2.083 2.698,2.438 0.281,0.354 18 false 4 4.75,0.333 5.031,0.688 0.281,0.354 18 false 3 0.031,0.958 0.344,1.156 0.313,0.198 10 false *a 2.188,2.51 2.5,2.708 0.313,0.198 10 false *b 2.198,2.948 2.51,3.146 0.313,0.198 10 false *c 4.656,0.969 4.969,1.167 0.313,0.198 10 false *a

*a	Interlock	*b	Check Window
*c	Top of Flat Cable U-turn	-	-
	Rotation Direction	-	-

If the spiral cable with sensor sub-assembly is not centered, center it.

NOTICE:: Failure to observe the following precautions may result in damage to the spiral cable with sensor sub-assembly.; ·

When rotating the spiral cable with sensor sub-assembly, make sure to push on the interlock to release the interlock.

·

Do not turn the spiral cable with sensor sub-assembly using the airbag wire harness.

·

Do not forcibly rotate the part.

While pushing on the interlock indicated in the illustration, rotate the spiral cable with sensor sub-assembly counterclockwise slowly by hand until it stops.

NOTICE:: If the connector is rotated clockwise from the bottom 5 times or more, the spiral cable with sensor sub-assembly may be damaged.

HINT:: The interlock operates at the top and bottom of the connector.

If the spiral cable with sensor sub-assembly stops rotating and the connector has moved past the bottom, return the connector to the bottom as shown in the illustration.

While pushing on the interlock, rotate the spiral cable with sensor sub-assembly clockwise approximately 2.5 times to move the connector from the bottom to the top.

NOTICE:: If the connector is rotated clockwise from the bottom 5 times or more, the spiral cable with sensor sub-assembly may be damaged.

HINT:: The interlock operates at the top and bottom of the connector.

Check that the spiral cable with sensor sub-assembly is center position.

OK:: The connector is at the top.; The colored roller or the top of the flat cable U-turn can be checked from the check window.

NOTICE:: If the spiral cable sub-assembly cannot be centered, it is possible that the spiral cable sub-assembly is broken. Replace the spiral cable sub-assembly with a new one.

Hide Display 45100 8.INSTALL STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>INSTALLATION202201,999999,_55,_112306,_0501032,RM100000001Z4RO,

Hide Display 9.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0505262,RM100000002CQ1C,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>INSTALLATION202307,999999,_V1,_104397,_0604345,RM100000002BTXB,

Hide Display 10.INSPECT SRS WARNING LIGHT

Click here(

202201,999999,_58,_115188,_0511913,RM1000000020FQR,)

Hide Display 11. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:: When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART202307,999999,_V1,_106911,_0485800,RM100000002CEKZ,
