RM38T0EC _59 Vehicle Exterior _114146 WIPER / WASHER _0505960 FRONT WIPER MOTOR A

WIPER / WASHER  FRONT WIPER MOTOR  REMOVAL


CAUTION / NOTICE / HINT

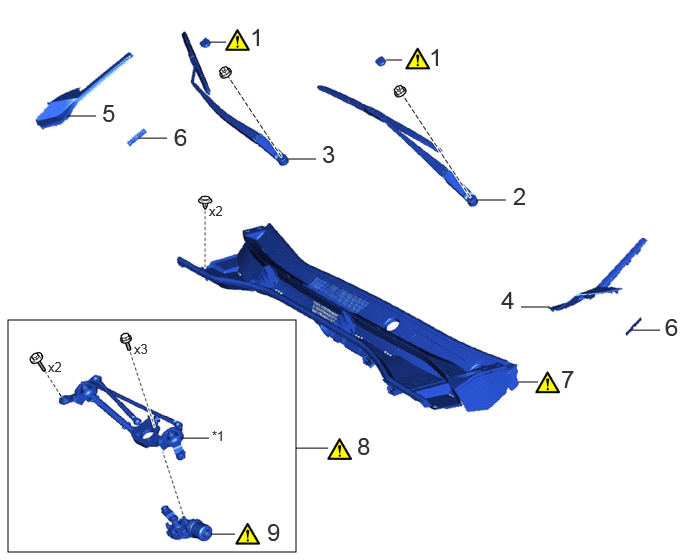

COMPONENTS (REMOVAL)
B582060N01
0.083,3.333 3.083,5.75 3,2.417 0.698,1.208 1,1.208 false 1.438,1.438 1.74,1.438 false 2.99,1.656 3.292,1.656 false 2.188,0.438 2.354,0.438 false 4.021,0.625 4.188,0.625 false 4.969,2.083 5.271,2.083 false 5.427,3.198 5.729,3.198 false 6.573,3.438 6.875,3.438 false 5.396,3.979 5.604,3.979 false 3.083,4.667 3.417,4.667 false 2.198,5.563 2.448,5.563 false 1.885,4.563 2.177,4.563 false 1.063,1.031 1.344,1.385 0.281,0.354 18 false 5 1.813,1.281 2.094,1.635 0.281,0.354 18 false 6 3.354,1.458 3.635,1.813 0.281,0.354 18 false 3 2.604,0.24 2.885,0.594 0.281,0.354 18 false 1 4.469,0.448 4.75,0.802 0.281,0.354 18 false 1 5.344,1.896 5.625,2.25 0.281,0.354 18 false 2 5.219,2.979 5.417,3.333 0.198,0.354 18 false 4 6.927,3.26 7.125,3.615 0.198,0.354 18 false 6 5.844,3.802 6.042,4.156 0.198,0.354 18 false 7 3.719,4.5 3.917,4.854 0.198,0.354 18 false 8 0.5,3.74 0.76,3.948 0.26,0.208 10 false x2 2.177,2.115 2.49,2.313 0.313,0.198 10 false x2 2.781,5.396 3.063,5.75 0.281,0.354 18 false 9 1.396,3.552 1.708,3.75 0.313,0.198 10 false x3 2.208,4.458 2.521,4.656 0.313,0.198 10 false *1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT WIPER ARM HEAD CAP 85292B (Click here) - -
2 FRONT WIPER ARM AND BLADE ASSEMBLY LH - - - -
3 FRONT WIPER ARM AND BLADE ASSEMBLY RH - - - -
4 NO. 2 FRONT SIDE PANEL PROTECTOR LH 53824D - - -
5 NO. 2 FRONT SIDE PANEL PROTECTOR RH 53823G - - -
6 WINDSHIELD OUTSIDE MOULDING CLIP 75545M - - -
7 COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY 55708 (Click here) - -
8 WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY - (Click here) - -
9 WINDSHIELD WIPER MOTOR ASSEMBLY 85110 (Click here) - -

*1 WINDSHIELD WIPER LINK ASSEMBLY - -

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it, as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.


PROCEDURE

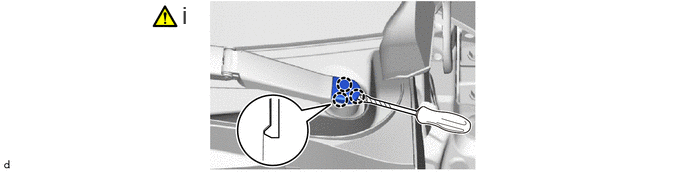

Hide 85292B 1.REMOVE FRONT WIPER ARM HEAD CAP

a.
B635824N01
1.896,0.01 2.177,0.365 0.281,0.354 18 false i

i.

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the front wiper arm head cap.



b.

Use the same procedure as for the opposite side.

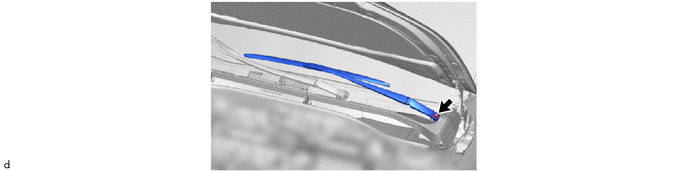

Hide 2.REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

a.
B582066

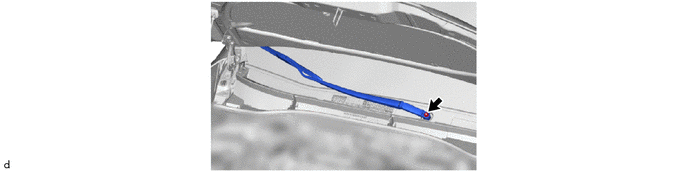

Hide 3.REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

a.
B582067

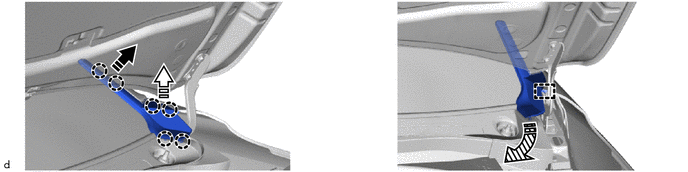

Hide 53824D 4.REMOVE NO. 2 FRONT SIDE PANEL PROTECTOR LH

a.
B582068C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V113149

Remove in this Direction (3) - -



Hide 53823G 5.REMOVE NO. 2 FRONT SIDE PANEL PROTECTOR RH

a.

Use the same procedure as for the LH side.

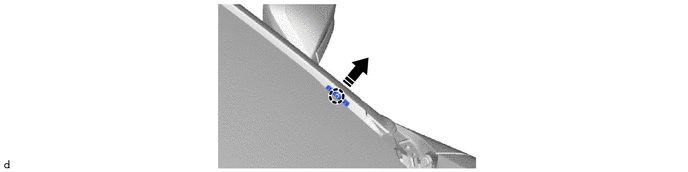

Hide 75545M 6.REMOVE WINDSHIELD OUTSIDE MOULDING CLIP

a.
B635825C01
0,0 0,0 false
V113147

Remove in this Direction - -



b.

Use the same procedure as for the opposite side.

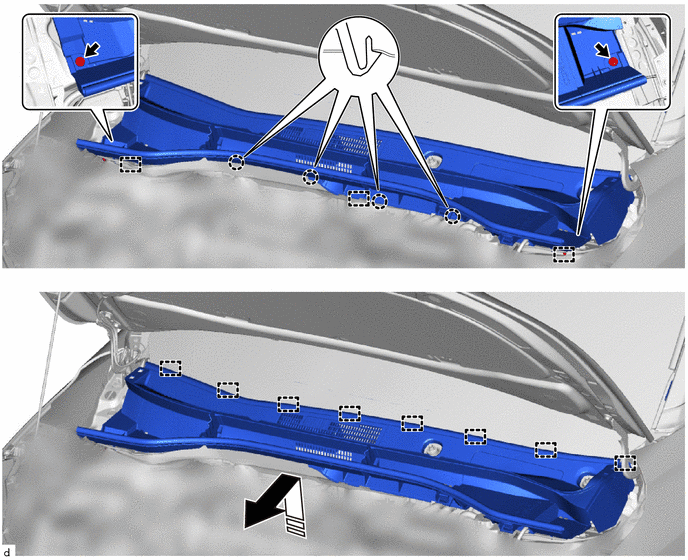

Hide 55708 7.REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Z101186

NOTICE:

To prevent damage to the windshield glass, remove any foreign matter (sand, dust, etc.) from around the contacting surfaces of the cowl top ventilator louver sub-assembly and windshield glass.



a.
B635826C01
0,0 0,0 false
V113147

Remove in this Direction - -

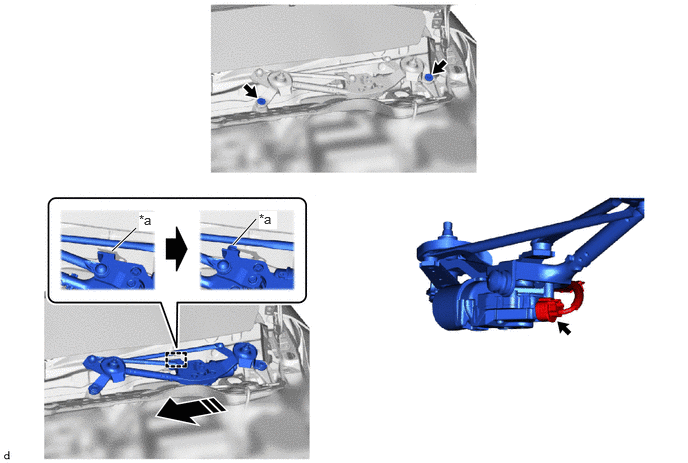

Hide 8.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Z101186

NOTICE:

Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.



a.
B582070C01
1.167,2.615 1.417,2.375 true 2.427,2.552 2.667,2.281 true 1.448,2.208 1.635,2.406 0.188,0.198 10 true *a 2.698,2.198 2.885,2.385 0.188,0.188 10 true *a
*a Motor Grommet - -
V113147

Remove in this Direction - -



Hide 85110 9.REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

a.

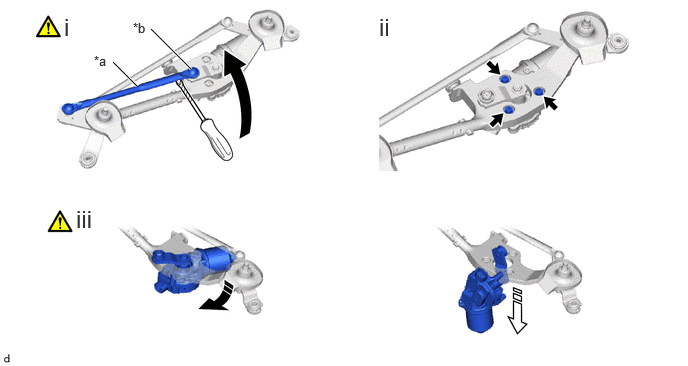

B635900C01
1.177,0.646 1.427,0.896 true 1.573,0.302 1.99,0.719 true 0.667,0.135 0.948,0.49 0.281,0.354 18 false i 3.948,0.135 4.5,0.49 0.552,0.354 18 false ii 0.792,2.135 1.625,2.49 0.833,0.354 18 false iii 0.979,0.552 1.292,0.75 0.313,0.198 10 false *a 1.385,0.208 1.698,0.406 0.313,0.198 10 false *b
*a No. 1 Wiper Link Rod *b Pivot of Windshield Wiper Motor Assembly
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


i.

Using a screwdriver with its tip wrapped with protective tape, separate the No. 1 wiper link rod from the pivot of the windshield wiper motor assembly as shown in the illustration.


ii.

Remove the 3 bolts.


iii.

Remove the windshield wiper motor assembly as shown in the illustration.
