PB10 HYBRID TRANSMISSION / TRANSAXLE  HYBRID TRANSAXLE OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft oil seal LH or front drive shaft oil seal RH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment Calibration
·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

VSC disabled or malfunctions


(Click here)
Suspension, tires, etc. Parking assist ECU initialization Panoramic view monitor system (Click here)

PROCEDURE

Hide 43420H 2.REMOVE FRONT DRIVE SHAFT OIL SEAL LH

a.

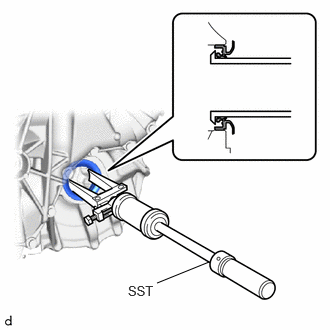

C498775N01
1.635,2.948 2.177,2.729 false 1.333,2.948 1.792,3.146 0.458,0.198 10 false SST

Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

SST
09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.



Hide 43410M 3.REMOVE FRONT DRIVE SHAFT OIL SEAL RH

a.

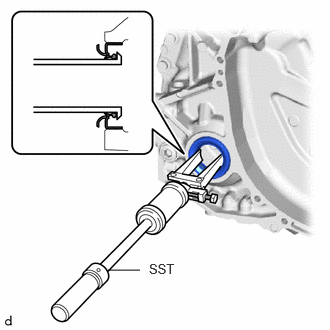

C498776N01
1.125,2.813 1.458,2.813 false 1.552,2.719 2.01,2.917 0.458,0.198 10 false SST

Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

SST
09308-00010

NOTICE:

Be careful not to damage the hybrid vehicle transaxle assembly.



Hide 43410M 4.INSTALL FRONT DRIVE SHAFT OIL SEAL RH

a.

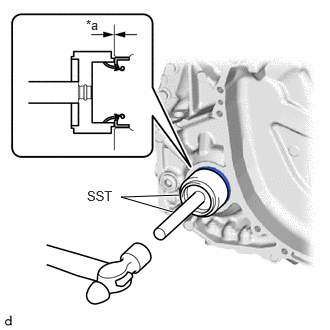

C498777C01
1.802,2.208 1.26,2.052 1.26,2.052 1.865,2.031 true 0.896,0.177 1.146,0.354 0.25,0.177 10 false *a 0.906,1.958 1.24,2.146 0.333,0.188 10 false SST
*a Depth


Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

SST
09316-10010
09950-70010  (09951-07100)

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
C381409C01
2.292,1.073 2.427,1.073 2.427,1.073 2.427,1.406 false 1.323,1.26 1.552,1.26 false 2.219,0.75 2.583,0.75 false 0.729,0.75 1.094,0.75 false 1.052,0.281 1.333,0.51 0.281,0.229 10 false *a 2.542,0.281 2.823,0.51 0.281,0.229 10 false *b 2.125,0.979 2.406,1.208 0.281,0.229 10 false *c 1.594,1.156 1.875,1.385 0.281,0.229 10 false *c 0.427,0.677 0.885,0.875 0.458,0.198 10 false SST 1.917,0.677 2.375,0.875 0.458,0.198 10 false SST
*a Correct
*b Incorrect
*c Outer Lip


·

Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.

·

Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.

·

Do not install the front drive shaft oil seal RH at an angle.

·

Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.




Hide 43420H 5.INSTALL FRONT DRIVE SHAFT OIL SEAL LH

a.

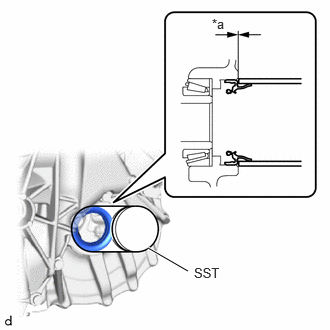

C506974C01
1.542,2.583 1.958,2.823 true 2.208,0.167 2.448,0.354 0.24,0.188 10 false *a 2.021,2.76 2.479,2.958 0.458,0.198 10 false SST
*a Depth


Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

SST
09506-42020

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)


NOTICE:
C381409C01
2.292,1.073 2.427,1.073 2.427,1.073 2.427,1.406 false 1.323,1.26 1.552,1.26 false 2.219,0.75 2.583,0.75 false 0.729,0.75 1.094,0.75 false 1.052,0.281 1.333,0.51 0.281,0.229 10 false *a 2.542,0.281 2.823,0.51 0.281,0.229 10 false *b 2.125,0.979 2.406,1.208 0.281,0.229 10 false *c 1.594,1.156 1.875,1.385 0.281,0.229 10 false *c 0.427,0.677 0.885,0.875 0.458,0.198 10 false SST 1.917,0.677 2.375,0.875 0.458,0.198 10 false SST
*a Correct
*b Incorrect
*c Outer Lip


·

Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

·

Do not allow foreigh matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.

·

Do not install the front drive shaft oil seal LH at an angle.

·

Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.
