| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | FRONT DRIVE SHAFT HOLE SNAP RING | 43420G | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0098,)
|
- | - |
| 2 | INSTALL FRONT DRIVE SHAFT ASSEMBLY | 43420 | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0001,)
|
- | - |
| ● | Non-reusable part |
|
Toyota Genuine e-Transaxle Fluid TE |
|
MP Grease |
|
Toyota Genuine Oil Seal Side Lip Grease |
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 3 | CONNECT FRONT DRIVE SHAFT ASSEMBLY | 43420 | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0093,)
|
- | - |
| 4 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | 48069 | - | - | - |
| 5 | FRONT STABILIZER LINK ASSEMBLY | 48810 | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0041,)
|
- | - |
| 6 | TIE ROD END SUB-ASSEMBLY | 45047 | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0039,)
|
- | - |
| 7 | FRONT SPEED SENSOR | 89543 | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0040,)
|
- | - |
| 8 | FRONT AXLE SHAFT NUT | 43502H | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0092,)
|
- | - |
| *1 | FRONT FLEXIBLE HOSE | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
|
Toyota Body Grease W |
|
Do not apply lubricants to the threaded parts |
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 9 | ADD HYBRID TRANSAXLE FLUID | - | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0090,)
|
- |
| 10 | INSPECT HYBRID TRANSAXLE FLUID | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0100,)
|
- | - |
| 11 | INSPECT FOR HYBRID TRANSAXLE FLUID LEAK | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0099,)
|
- | - |
| 12 | FRONT WHEELS | - | - | - | - |
| 13 | INSPECT AND ADJUST FRONT WHEEL ALIGNMENT | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0025,)
|
- | - |
| 14 | REAR ENGINE UNDER COVER LH | 51444A | - | - | - |
| 15 | REAR ENGINE UNDER COVER RH | 51443C | - | - | - |
| 16 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 17 | CHECK FOR SPEED SENSOR SIGNAL | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0094,)
|
- | - |
| 18 | PERFORM INITIALIZATION | - | - | - | ( 202307,999999,_52,_112266,_0604511,RM100000002BUWF_01_0103,)
|
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
43420G
1.INSTALL FRONT DRIVE SHAFT HOLE SNAP RING
|
|

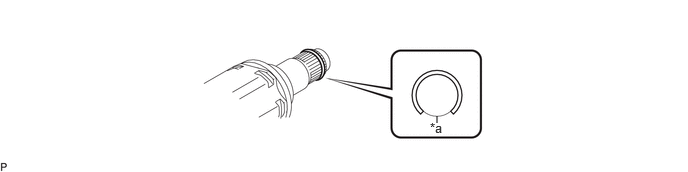

| *a | End Gap | - | - |
43420

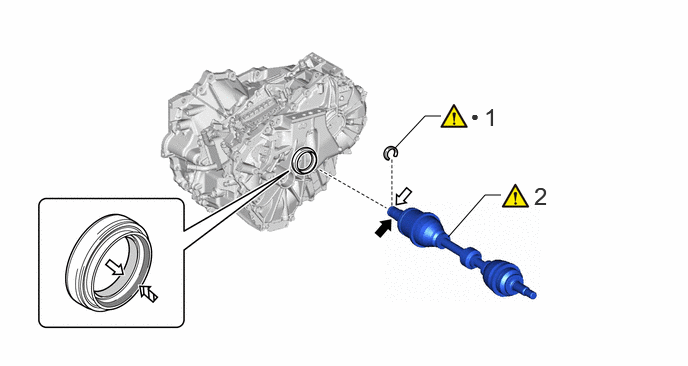

2.INSTALL FRONT DRIVE SHAFT ASSEMBLY
|
MP Grease |
|
Toyota Genuine e-Transaxle Fluid TE |
|
MP Grease |
|
Toyota Genuine Oil Seal Side Lip Grease |

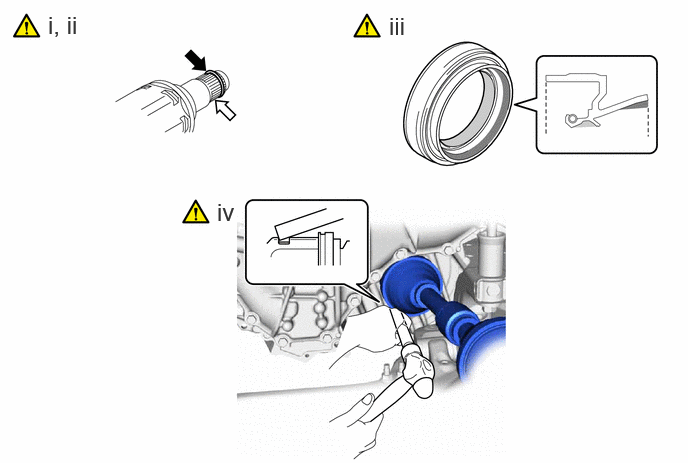

Coat the front drive shaft hole snap ring with MP grease.
Coat the splines of the front drive inboard joint assembly with Toyota genuine e-Transaxle fluid TE.
Coat the lip of the front drive shaft oil seal with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.
Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly.
Face the end gap of the front drive shaft hole snap ring downward.
Do not damage the front drive shaft oil seal.
Do not damage the front axle inboard joint boot.
Make sure to center the front drive shaft assembly during installation to prevent damage to the front drive shaft hole snap ring.
Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.
43420
3.CONNECT FRONT DRIVE SHAFT ASSEMBLY

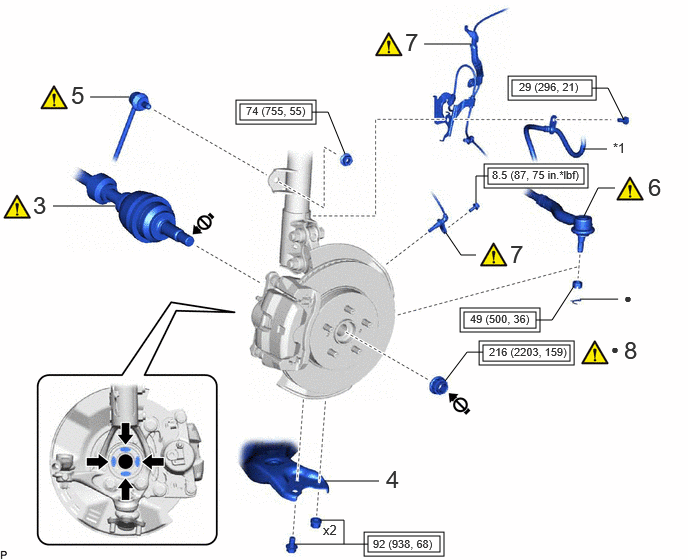

| *a | Matchmark | - | - |
|
Toyota Body Grease W | - | - |
Apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota Body Grease W to each of the 4 areas shown in the illustration.
Align the matchmarks and install the front drive shaft assembly to the front axle assembly.
Do not push the front axle assembly towards the outside of the vehicle any further than necessary.
Check that there is no foreign matter on the deflector or contact surfaces.
Do not damage the front axle outboard joint boot.
Do not damage the front disc brake dust cover.
Do not damage the deflector.
48069
4.CONNECT FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY
48810
5.INSTALL FRONT STABILIZER LINK ASSEMBLY
45047
6.CONNECT TIE ROD END SUB-ASSEMBLY
89543
7.INSTALL FRONT SPEED SENSOR
43502H
8.INSTALL FRONT AXLE SHAFT NUT

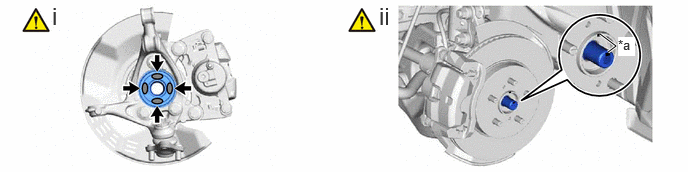

Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.
Be sure to perform this work even when using a new front drive shaft assembly.
Keep the threaded parts free of oil and foreign matter.

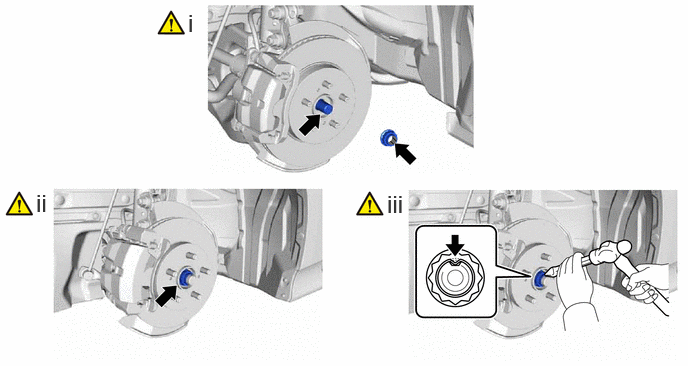

While applying the brakes, using a 30 mm deep socket wrench, install the front axle shaft nut.
Using a chisel and a hammer, stake the front axle shaft nut.
9.ADD HYBRID TRANSAXLE FLUID
10.INSPECT HYBRID TRANSAXLE FLUID
11.INSPECT FOR HYBRID TRANSAXLE FLUID LEAK
12.INSTALL FRONT WHEELS
13.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

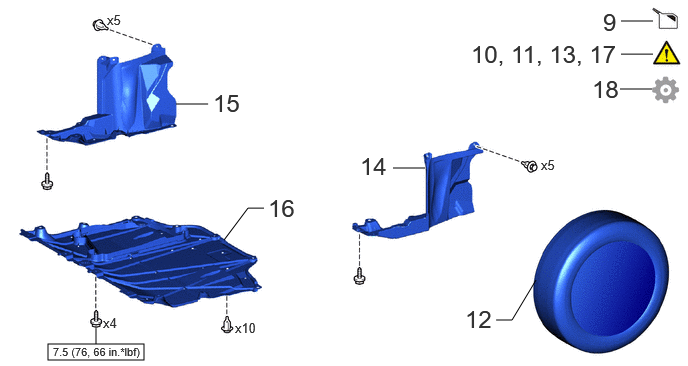

51444A
14.INSTALL REAR ENGINE UNDER COVER LH
51443C
15.INSTALL REAR ENGINE UNDER COVER RH
51410
16.INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
17.CHECK FOR SPEED SENSOR SIGNAL
18.PERFORM INITIALIZATION
