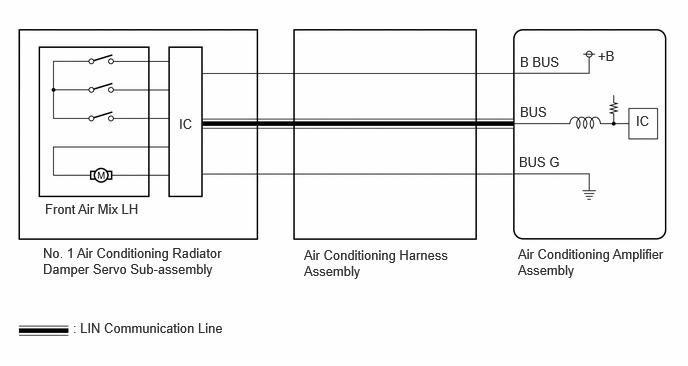

The No. 1 air conditioning radiator damper servo sub-assembly sends pulse signals to inform the air conditioning amplifier assembly of the damper position. The air conditioning amplifier assembly activates the motor (normal or reverse) based on these signals to move the air outlet damper to the appropriate position, which controls the air outlet switching.
The air conditioning amplifier assembly communicates with the servo through a communication/driver IC and wiring assembly called the air conditioning harness assembly.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Memory |
|---|---|---|---|---|
| B144C7F | Front Left Air Mix Damper Control Servo Motor Actuator Stuck Off | Diagnosis Condition:
No. 1 air conditioning radiator damper servo sub-assembly operating Malfunction Status: Damper servo operation request signals are output but the damper position sensor value does not change or abnormal Detection Time: Continuously for 30 seconds or more |
·
No. 1 air conditioning radiator damper servo sub-assembly ·
Air conditioning harness assembly ·
Air conditioning radiator assembly |
Memorized |
| Vehicle Condition | |||
|---|---|---|---|
| Pattern 1 | Pattern 2 | ||
| Diagnosis Condition | No. 1 air conditioning radiator damper servo sub-assembly operating | ○ | ○ |
| Malfunction | Damper servo operation request signals are output but the damper position sensor value does not change | ○ | - |
| Damper servo operation request signals are output but the damper position sensor value is abnormal | - | ○ | |
| Detection Time | Continuously for 30 seconds or more | Continuously for 30 seconds or more | |
| Trip Count | 1 trip | 1 trip | |
If the conditions of either of these patterns are detected, a DTC will be stored
This DTC is also output for the damper link, damper lock, etc. Before performing inspection, perform servomotor initialization and check that there are no mechanical malfunctions.
This DTC is also output when servomotor initialization has failed. When servomotor initialization has failed, repair any malfunctions and perform servomotor initialization again.
Check for DTCs.
| Result | Proceed to |
|---|---|
| B144C7F is output | A |
| DTCs in conjunction with No. 1 air conditioning radiator damper servo sub-assembly are output at same time | B |
A
B
Check that the No. 1 air conditioning radiator damper servo sub-assembly is installed correctly.
The No. 1 air conditioning radiator damper servo sub-assembly is installed correctly.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Check for a wire harness caught between the links of the motors and dampers.
No wire harnesses are caught between the links of the motors and dampers.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Using the GTS, perform the following Active Test and read the Data List value.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor | No. 1 air conditioning radiator damper servo sub-assembly operation | Min.: 128
Max.: 384 |
Operates between 165 to 257 |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor Actual Pulse | No. 1 air conditioning radiator damper servo sub-assembly actual pulse | Min.: 128
Max.: 384 |
·
MAX COLD: 257 (pulse) ·
MAX HOT: 165 (pulse) |
- |
| Active Test Display |
|---|
| Front Left Air Mix Damper Control Servo Motor |
| Data List Display |
|---|
| Front Left Air Mix Damper Control Servo Motor Actual Pulse |
The value of the Data List changes in accordance with the operation of the Active Test.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Using the GTS, perform the following Active Test and read the Data List value.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor | No. 1 air conditioning radiator damper servo sub-assembly operation | Min.: 128
Max.: 384 |
Operates between 165 to 257 |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor Target Pulse | No. 1 air conditioning radiator damper servo sub-assembly target pulse | Min.: 128
Max.: 384 |
·
MAX COLD: 257 (pulse) ·
MAX HOT: 165 (pulse) |
- |
| Front Left Air Mix Damper Control Servo Motor Actual Pulse | No. 1 air conditioning radiator damper servo sub-assembly actual pulse | Min.: 128
Max.: 384 |
·
MAX COLD: 257 (pulse) ·
MAX HOT: 165 (pulse) |
- |
| Active Test Display |
|---|
| Front Left Air Mix Damper Control Servo Motor |
| Data List Display |
|---|
| Front Left Air Mix Damper Control Servo Motor Target Pulse |
| Front Left Air Mix Damper Control Servo Motor Actual Pulse |
The target pulse value of the Data List matches the actual pulse.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Using the GTS, perform the following Active Test and read the Data List value.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Front Right Air Mix Damper Control Servo Motor | No. 1 air conditioning radiator damper servo sub-assembly operation | Min.: 128
Max.: 384 |
Operates between 255 to 347 |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Front Right Air Mix Damper Control Servo Motor Actual Pulse | No. 1 air conditioning radiator damper servo sub-assembly actual pulse | Min.: 128
Max.: 384 |
·
MAX COLD: 255 (pulse) ·
MAX HOT: 347 (pulse) |
- |
| Active Test Display |
|---|
| Front Right Air Mix Damper Control Servo Motor |
| Data List Display |
|---|
| Front Right Air Mix Damper Control Servo Motor Actual Pulse |
The value of the Data List changes in accordance with the operation of the Active Test.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| Proceed to |
|---|
| NEXT |
NEXT
Using the GTS, perform the following Active Test and read the Data List value.
| Tester Display | Measurement Item | Control Range | Diagnostic Note |
|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor | No. 1 air conditioning radiator damper servo sub-assembly operation | Min.: 128
Max.: 384 |
Operates between 165 to 257 |
| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Front Left Air Mix Damper Control Servo Motor Actual Pulse | No. 1 air conditioning radiator damper servo sub-assembly actual pulse | Min.: 128
Max.: 384 |
·
MAX COLD: 257 (pulse) ·
MAX HOT: 165 (pulse) |
- |
| Active Test Display |
|---|
| Front Left Air Mix Damper Control Servo Motor |
| Data List Display |
|---|
| Front Left Air Mix Damper Control Servo Motor Actual Pulse |
The value of the Data List changes in accordance with the operation of the Active Test.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Remove the No. 1 air conditioning radiator damper servo sub-assembly.
Operate the dampers by hand.
The dampers are easily operated by hand.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
