DOOR LOCK  WIRELESS DOOR LOCK CONTROL SYSTEM(w/o Smart Entry and Start System)  Only Wireless Control Function is Inoperative


DESCRIPTION

The door control receiver receives signals from the door control transmitter assembly and sends these signals to the main body ECU (multiplex network body ECU). The main body ECU (multiplex network body ECU) then controls all doors by sending lock/unlock signals to each door, and sends hazard flasher signals to the combination meter assembly.

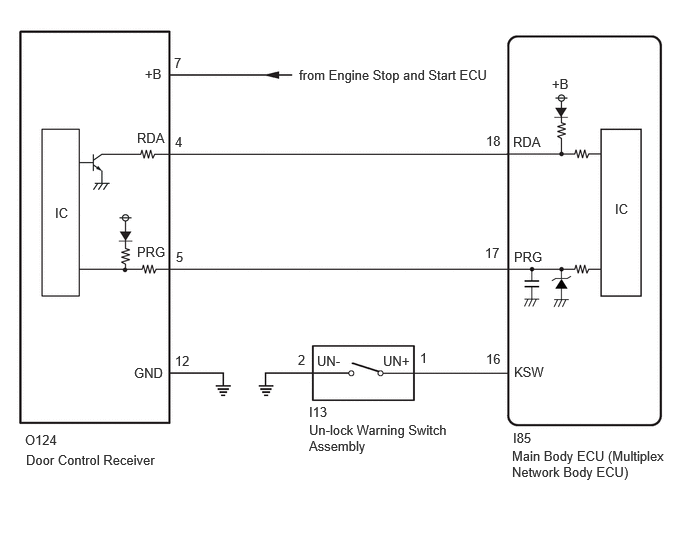

WIRING DIAGRAM

E479556E01
3.115,0.698 5.229,0.938 2.115,0.24 10 false from Engine Stop and Start ECU 1.51,0.688 1.823,0.885 0.313,0.198 10 false +B 1.813,0.573 2.458,0.833 0.646,0.26 10 false 7 1.427,1.354 1.885,1.552 0.458,0.198 10 false RDA 1.823,1.396 2.573,1.74 0.75,0.344 10 false 4 1.427,2.542 1.885,2.74 0.458,0.198 10 false PRG 1.833,2.594 2.615,2.979 0.781,0.385 10 false 5 0.573,2.135 0.885,2.333 0.313,0.198 10 false IC 1.396,3.802 1.854,4 0.458,0.198 10 false GND 1.823,3.677 2.563,4.01 0.74,0.333 10 false 12 4.375,3.646 4.531,3.844 0.156,0.198 10 false 1 3.104,3.667 3.26,3.865 0.156,0.198 10 false 2 5.063,3.656 5.354,3.917 0.292,0.26 10 false 16 3.219,4.208 3.677,4.406 0.458,0.198 10 false I13 3.219,4.396 4.74,5.01 1.521,0.615 10 false Un-lock Warning Switch Assembly 5.344,4.479 5.656,4.677 0.313,0.198 10 false I85 5.333,4.667 6.99,5.542 1.656,0.875 10 false Main Body ECU (Multiplex Network Body ECU) 5.354,3.792 5.813,3.99 0.458,0.198 10 false KSW 5.354,2.594 5.813,2.792 0.458,0.198 10 false PRG 5.052,2.552 5.365,2.75 0.313,0.198 10 false 17 5.063,1.385 5.375,1.583 0.313,0.198 10 false 18 5.344,1.396 5.802,1.594 0.458,0.198 10 false RDA 5.75,0.792 6.063,0.99 0.313,0.198 10 false +B 6.406,2.094 6.719,2.292 0.313,0.198 10 false IC 0.271,4.708 2.156,5 1.885,0.292 10 false Door Control Receiver 3.99,3.677 4.323,3.938 0.333,0.26 10 false UN+ 3.302,3.677 3.635,3.938 0.333,0.26 10 false UN- 0.26,4.5 0.719,4.698 0.458,0.198 10 false O124

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing or inspecting the door control receiver and wire harness, do not change the position or length of the wire harness. If the wire harness is too close to the door control receiver, wireless function performance may be affected.

·

When replacing the door control receiver, read the transmitter IDs (tire pressure warning system) stored in the old ECU using the Techstream and write them down before removal.

Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION

·

If the door control receiver has been replaced, it is necessary to perform initialization (Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>INITIALIZATION) after registration (Click here Suspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM>REGISTRATION ) of the transmitter IDs to the door control receiver assembly.



PROCEDURE

2.CHECK KEY REMINDER WARNING SYSTEM
a.

Check that the key reminder warning buzzer operates properly.

Click hereVehicle Interior>DOOR LOCK>KEY REMINDER WARNING SYSTEM>OPERATION CHECK


OK:

Key reminder warning buzzer operates properly.


Result:
Proceed to
OK
NG



OK

3.CHECK DOOR CONTROL TRANSMITTER ASSEMBLY

NG

GO TO KEY REMINDER WARNING SYSTEM

Click hereVehicle Interior>DOOR LOCK>KEY REMINDER WARNING SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING


3.CHECK DOOR CONTROL TRANSMITTER ASSEMBLY
a.

When a known good registered door control transmitter assembly is used, check that the wireless functions operate properly.


Result:
Result Proceed to
Wireless door lock/unlock function operates properly with a known good door control transmitter assembly A
Wireless door lock/unlock function does not operate B



A

4.CHECK TRANSMITTER BATTERY (VOLTAGE)

B

5.CHECK WAVE ENVIRONMENT
4.CHECK TRANSMITTER BATTERY (VOLTAGE)
a.

Inspect the transmitter battery capacity.

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL TRANSMITTER (w/o Smart Entry and Start System)>INSPECTION


Result:
Proceed to
OK
NG



OK

REPLACE DOOR CONTROL TRANSMITTER ASSEMBLY

NG

REPLACE TRANSMITTER BATTERY

Click hereVehicle Interior>DOOR LOCK>TRANSMITTER BATTERY (w/o Smart Entry and Start System)>REMOVAL


5.CHECK WAVE ENVIRONMENT
a.

Bring the door control transmitter assembly near the door control receiver, and perform wireless operation check.

HINT:
·

When the door control transmitter assembly is brought near the door control receiver, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.

·

If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.




OK:

Wireless functions operate properly.


Result:
Proceed to
OK
NG



OK

END (AFFECTED BY WAVE INTERFERENCE)

NG

6.SWITCH TO SELF-DIAGNOSTIC MODE
6.SWITCH TO SELF-DIAGNOSTIC MODE
a.

Switch to self-diagnostic mode.

i.

Insert the key into the ignition key cylinder and remove it.


ii.

Within 5 seconds after the key is removed, insert it into the ignition key cylinder and then turn the ignition switch ON then off 1 time. (End in off)


iii.

Within 30 seconds of turning the ignition switch off, perform the following 9 times: Turn the ignition switch ON then off. (End in off)

HINT:

Turning the ignition switch ON after the procedure above has been completed will end the self-diagnostic mode.


CAUTION:

If the system fails to enter the self-diagnostic mode, the system will return to normal mode.




b.
B220865E42
0.125,0.031 1.802,0.323 1.677,0.292 10 false Interior Light Output: 0.635,1.406 1.063,1.688 0.427,0.281 10 false ON 0.573,1.688 0.896,1.948 0.323,0.26 10 false OFF 1.552,2.167 1.917,2.5 0.365,0.333 10 false T1 2.146,2.167 2.604,2.604 0.458,0.438 10 false T2 1.979,2.604 3.427,3.042 1.448,0.438 10 false T1: 0.25 seconds 1.979,2.917 3.292,3.313 1.313,0.396 10 false T2: 0.5 seconds 1.802,2.167 2.125,2.51 0.323,0.344 10 false T1

Check that the system has switched to self-diagnostic mode by checking the interior light output pattern.


Result:
Proceed to
NEXT



NEXT

7.CHECK SELF-DIAGNOSTIC MODE
7.CHECK SELF-DIAGNOSTIC MODE
a.

Check the diagnostic outputs when a door control transmitter assembly switch is pressed. The diagnostic outputs can be checked by the interior light patterns.

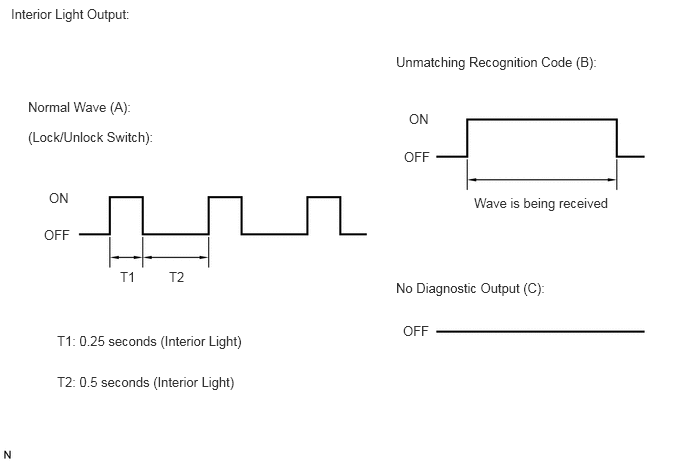

B163380E75
0.115,0.063 1.604,0.323 1.49,0.26 10 false Interior Light Output: 0.292,1.344 1.979,1.625 1.688,0.281 10 false (Lock/Unlock Switch): 0.51,1.979 0.906,2.24 0.396,0.26 10 false ON 0.458,2.365 0.844,2.583 0.385,0.219 10 false OFF 4.125,0.563 6.51,0.938 2.385,0.375 10 false Unmatching Recognition Code (B): 4.26,1.156 4.583,1.385 0.323,0.229 10 false ON 4.208,1.552 4.74,1.906 0.531,0.354 10 false OFF 4.125,2.917 5.938,3.177 1.813,0.26 10 false No Diagnostic Output (C): 4.198,3.365 4.771,3.698 0.573,0.333 10 false OFF 1.25,2.802 1.563,3.01 0.313,0.208 10 false T1 1.76,2.802 2.146,3.063 0.385,0.26 10 false T2 4.938,2.031 6.604,2.344 1.667,0.313 10 false Wave is being received 0.594,3.469 2.979,3.813 2.385,0.344 10 false T1: 0.25 seconds (Interior Light) 0.594,3.896 2.969,4.25 2.375,0.354 10 false T2: 0.5 seconds (Interior Light) 0.292,1.031 1.542,1.281 1.25,0.25 10 false Normal Wave (A):


Result:
Result Proceed to
Normal pattern (interior light output pattern) is output A
Unmatching recognition code is output B
No diagnostic output C



A

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


B

8.CHECK REGISTER RECOGNITION CODE

C

12.CHECK DOOR CONTROL RECEIVER (RESPONSE)
8.CHECK REGISTER RECOGNITION CODE
a.

Check that the system can be switched to rewrite mode or add mode, and that a recognition code can be registered.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Entry and Start System)>REGISTRATION


OK:

Recognition code can be registered.


Result:
Proceed to
OK
NG



OK

END (GO TO OPERATION CHECK)

NG

9.REPLACE DOOR CONTROL RECEIVER
9.REPLACE DOOR CONTROL RECEIVER
a.

Temporarily replace the door control receiver with a new or known good one.

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

10.REGISTER RECOGNITION CODE
10.REGISTER RECOGNITION CODE
a.

Perform the Registration procedure.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Entry and Start System)>REGISTRATION


Result:
Proceed to
NEXT



NEXT

11.CHECK DOOR CONTROL RECEIVER (OPERATION)
11.CHECK DOOR CONTROL RECEIVER (OPERATION)
a.

Check that the doors can be locked and unlocked by the door control transmitter assembly lock and unlock switches.


OK:

Doors can be locked and unlocked by the door control transmitter assembly.


Result:
Proceed to
OK
NG



OK

END (DOOR CONTROL RECEIVER WAS DEFECTIVE)

NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


12.CHECK DOOR CONTROL RECEIVER (RESPONSE)
a.

Prepare a door control transmitter assembly from another vehicle.


b.

Press and hold a door control transmitter assembly switch.


c.

Check that an unmatching recognition code is output.


OK:

Unmatching recognition code is output.


Result:
Proceed to
OK
NG



OK

REPLACE DOOR CONTROL TRANSMITTER ASSEMBLY

NG

13.CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - POWER SOURCE AND BODY GROUND)
13.CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - POWER SOURCE AND BODY GROUND)
a.

Disconnect the O124 door control receiver connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O124-12 (GND) - Body ground Always Below 1 Ω



c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
O124-7 (+B) - Body ground Ignition switch off 11 to 14 V



Result:
Proceed to
OK
NG



OK

14.CHECK DOOR CONTROL RECEIVER (OUTPUT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

14.CHECK DOOR CONTROL RECEIVER (OUTPUT)
a.

Reconnect the O124 door control receiver connector.


b.
E446712C32

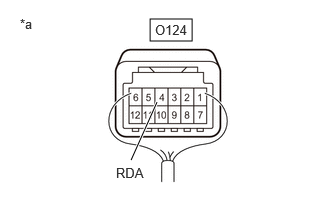

1.563,0.198 2,0.427 0.438,0.229 1.635,1.063 1.365,1.667 true 0.208,0.167 0.552,0.49 0.344,0.323 10 false *a 1.208,1.719 1.531,1.865 0.323,0.146 10 false RDA 1.615,0.229 1.99,0.406 0.375,0.177 10 false O124
*a Component with harness connected
(Door Control Receiver)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O124-4 (RDA) - Body ground
Procedure:
1.

Remove key from ignition key cylinder

2.

Close all doors

3.

Press lock or unlock switch of door control transmitter assembly


11 to 14 V → pulse generation



Result:
Proceed to
OK
NG



OK

15.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - DOOR CONTROL RECEIVER)

NG

REPLACE DOOR CONTROL RECEIVER

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER>REMOVAL


15.CHECK HARNESS AND CONNECTOR (MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) - DOOR CONTROL RECEIVER)
a.

Disconnect the I85 main body ECU (multiplex network body ECU) connector.


b.

Disconnect the O124 door control receiver connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O124-4 (RDA) - I85-18 (RDA) Always Below 1 Ω
O124-5 (PRG) - I85-17 (PRG) Always Below 1 Ω
O124-4 (RDA) or I85-18 (RDA) - Other terminals and body ground Always 10 kΩ or higher
O124-5 (PRG) or I85-17 (PRG) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

16.REPLACE DOOR CONTROL RECEIVER

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.REPLACE DOOR CONTROL RECEIVER
a.

Temporarily replace the door control receiver with a new or known good one.

Click hereVehicle Interior>DOOR LOCK>DOOR CONTROL RECEIVER>REMOVAL


Result:
Proceed to
NEXT



NEXT

17.REGISTER RECOGNITION CODE
17.REGISTER RECOGNITION CODE
a.

Perform the Registration procedure.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Entry and Start System)>REGISTRATION


Result:
Proceed to
NEXT



NEXT

18.CHECK DOOR CONTROL RECEIVER (OPERATION)
18.CHECK DOOR CONTROL RECEIVER (OPERATION)
a.

Check that the doors can be locked and unlocked by the door control transmitter assembly lock and unlock switches.


OK:

Doors can be locked and unlocked by the door control transmitter assembly.


Result:
Proceed to
OK
NG



OK

END (DOOR CONTROL RECEIVER WAS DEFECTIVE)

NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL
