AXLE AND DIFFERENTIAL  REAR DIFFERENTIAL CARRIER ASSEMBLY  REMOVAL

1.DRAIN DIFFERENTIAL OIL

37100 2.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

3.REMOVE REAR STABILIZER BAR

77606 4.REMOVE NO. 1 FUEL TANK PROTECTOR

5.REMOVE REAR DRIVE SHAFT ASSEMBLY LH

42330 6.REMOVE REAR DRIVE SHAFT ASSEMBLY RH

41110 7.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

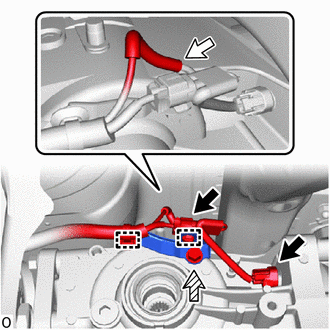

a.

0,0 0,0 false

	Connector
	Breather Tube
	Bolt

Disengage the 2 wire harness clamps to separate the wire harness.

b.

Disconnect the 2 connectors.

c.

Remove the bolt and wire harness clamp bracket.

d.

Remove the breather tube.

e.

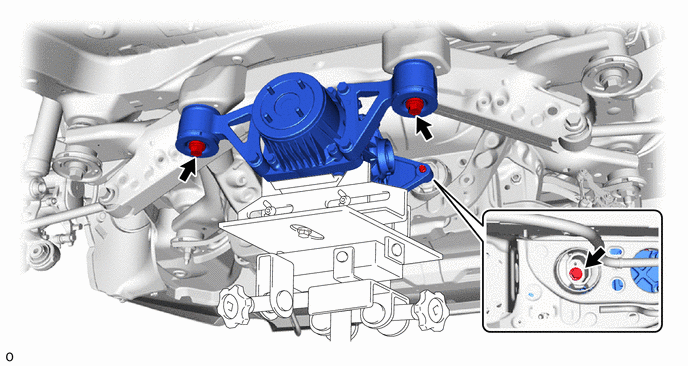

Support the rear differential carrier assembly with a transmission jack.

f.

Remove the 3 bolts and 2 rear lower differential mount stoppers.

g.

Slowly lower the jack and then tilt the rear differential carrier assembly.

8.REMOVE REAR NO. 1 DIFFERENTIAL SUPPORT

a.

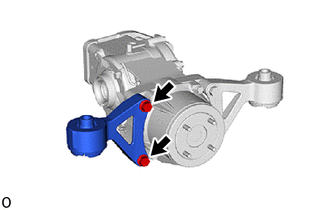

Remove the upper rear differential mount stopper from the rear No. 1 differential support.

b.

Remove the 2 bolts and rear No. 1 differential support from the rear differential carrier assembly.

9.REMOVE REAR NO. 2 DIFFERENTIAL SUPPORT

a.

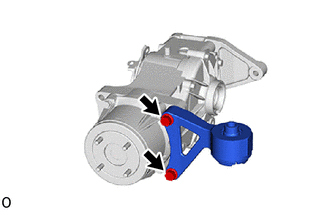

Remove the upper rear differential mount stopper from the rear No. 2 differential support.

b.

Remove the 2 bolts and rear No. 2 differential support from the rear differential carrier assembly.

52391A 10.REMOVE REAR DIFFERENTIAL SUPPORT

a.

Remove the 4 bolts and rear differential support from the rear differential carrier assembly.
