REAR SUSPENSION  REAR SUSPENSION MEMBER(for Gasoline Model AWD)  INSTALLATION

1.INSTALL HOLE PLUG

a.

0.333,0.042 0.49,0.24 0.156,0.198 10 false A 0.51,0.094 0.667,0.292 0.156,0.198 10 false A 0.646,0.083 0.802,0.281 0.156,0.198 10 false A 0.958,0.052 1.115,0.25 0.156,0.198 10 false B 1.76,0.469 1.917,0.667 0.156,0.198 10 false B 1.542,0 1.698,0.198 0.156,0.198 10 false A 3.135,0.677 3.292,0.875 0.156,0.198 10 false A 2.073,0.792 2.229,0.99 0.156,0.198 10 false A 1.479,0.74 1.604,0.958 0.125,0.219 10 true A 1.125,0.49 1.25,0.708 0.125,0.219 10 true A

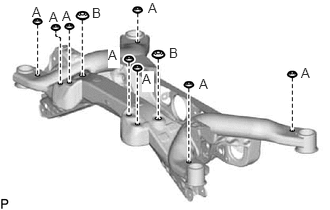

Install the 10 hole plugs to the rear suspension member sub-assembly.

HINT:

There are 2 different shapes of hole plug.

41651 2.INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

52271E 3.INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for LH Side)

52271E 4.INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION (for RH Side)

52275A 5.INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

52275A 6.INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

48790 7.INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH

48770A 8.INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH

51206A 9.INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

a.

Install the 4 rear suspension member cushions to the rear suspension member sub-assembly.

HINT:

When reusing the rear suspension member cushion, make sure to check its identification mark and install it to the correct position.

b.

0.583,3.833 0.75,3.833 0.75,3.833 0.833,3.917 false 1.417,3.865 1.583,3.865 1.583,3.865 1.667,3.948 false 1.583,4.344 2.25,4.344 2.25,4.344 2.583,4.094 true 1.917,4.344 2.25,4.094 true 2.896,3.99 2.896,3.74 2.896,3.74 2.979,3.74 false 3.021,3.677 3.271,3.927 0.25,0.25 10 false *a 0.417,3.771 0.667,4.021 0.25,0.25 10 false *b 1.417,4.271 1.75,4.521 0.333,0.25 10 false *b 1.25,3.802 1.667,4.052 0.417,0.25 10 false *b 0.104,0.229 0.271,0.396 0.167,0.167 10 true A 3.25,0.229 3.417,0.396 0.167,0.167 10 true A 0.208,2.229 0.375,2.396 0.167,0.167 10 true B 3.135,2.229 3.302,2.396 0.167,0.167 10 true B 2.083,2.115 2.25,2.281 0.167,0.167 10 true C 1.177,2.104 1.344,2.271 0.167,0.167 10 true C

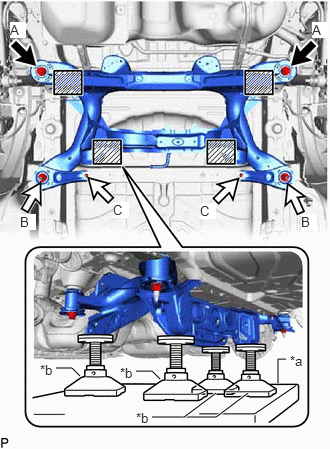

*a	Engine Lifter
*b	Attachment
	Attachment and Wooden Block Placement Location

Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.

CAUTION:

·

The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.

·

If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

NOTICE:

·

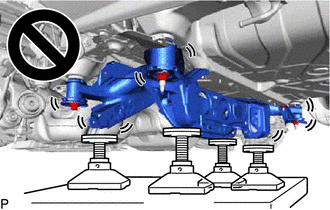

Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

·

Keep supporting the rear suspension member sub-assembly until the installation has been completed.

c.

Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.

d.

Install the rear suspension member sub-assembly with the 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH, 2 bolts and 4 nuts.

Torque:

Bolt A : 158 N*m (1611 kgf*cm, 117 ft.*lbf)

Nut B : 158 N*m (1611 kgf*cm, 117 ft.*lbf)

Nut C : 18 N*m (184 kgf*cm, 13 ft.*lbf)

e.

Engage the 7 clamps to install the differential carrier wire harness.

48720A 10.TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

48710A 11.TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

48740F 12.TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

48730F 13.TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

14.INSTALL TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY (for Torque Vectoring Differential)

41110 15.INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY (except Torque Vectoring Differential)

16.STABILIZE SUSPENSION

48720A 17.INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

48710A 18.INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

19.INSTALL REAR WHEEL

20.INSPECT AND ADJUST REAR WHEEL ALIGNMENT

21.PERFORM INITIALIZATION
