SLIDING ROOF / CONVERTIBLE SLIDING ROOF SYSTEM(for Gasoline Model) Sliding Roof does not Move by Operating Sliding Roof Control Switch
DESCRIPTION
The sliding roof ECU (sliding roof drive gear assembly) receives slide and tilt signals and operates its built-in motor when the map light sub-assembly (slide/tilt switch) is operated.

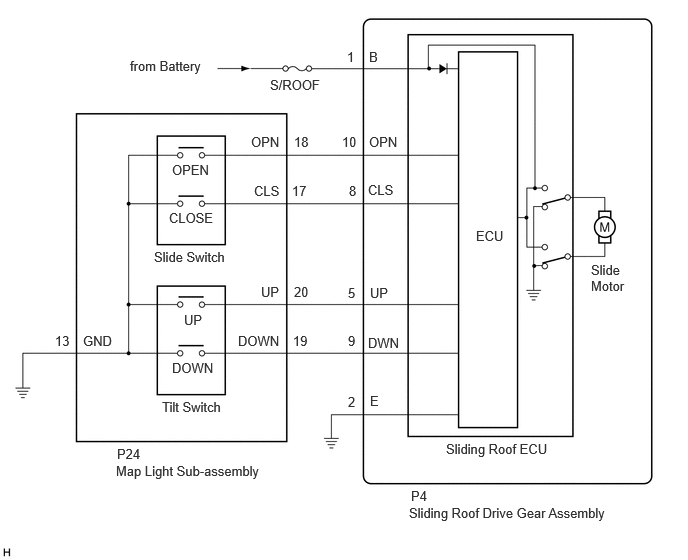

WIRING DIAGRAM
1.219,4.646 1.677,4.844
0.458,0.198
10
false
P24
4.281,5.083 4.74,5.281
0.458,0.198
10
false
P4
1.604,2.594 2.479,2.833
0.875,0.24
10
false
Slide Switch
1.688,4.156 2.375,4.385
0.688,0.229
10
false
Tilt Switch
1.208,4.823 2.792,5.031
1.583,0.208
10
false
Map Light Sub-assembly
4.26,5.26 6.375,5.49
2.115,0.229
10
false
Sliding Roof Drive Gear Assembly
4.958,2.375 5.417,2.573
0.458,0.198
10
false
ECU
6.156,2.729 6.552,3.104
0.396,0.375
10
false
Slide Motor
0.865,3.469 1.323,3.667
0.458,0.198
10
false
GND
2.615,1.396 3.073,1.594
0.458,0.198
10
false
OPN
2.646,1.906 3.104,2.104
0.458,0.198
10
false
CLS
2.719,2.958 3.031,3.156
0.313,0.198
10
false
UP
2.479,3.469 3.094,3.667
0.615,0.198
10
false
DOWN
3.844,1.396 4.302,1.594
0.458,0.198
10
false
OPN
3.833,1.896 4.292,2.094
0.458,0.198
10
false
CLS
3.854,2.969 4.167,3.167
0.313,0.198
10
false
UP
3.833,3.49 4.292,3.688
0.458,0.198
10
false
DWN
4.646,4.594 5.771,4.823
1.125,0.229
10
false
Sliding Roof ECU
1.792,1.688 2.406,1.885
0.615,0.198
10
false
OPEN
1.76,2.188 2.531,2.385
0.771,0.198
10
false
CLOSE
1.917,3.25 2.229,3.448
0.313,0.198
10
false
UP
1.792,3.75 2.406,3.948
0.615,0.198
10
false
DOWN
3.854,4.094 4.01,4.292
0.156,0.198
10
false
E
1.354,0.604 2.281,0.854
0.927,0.25
10
false
from Battery
2.813,0.802 3.729,1
0.917,0.198
10
false
S/ROOF
3.063,1.396 3.375,1.594
0.313,0.198
10
false
18
3.042,1.906 3.354,2.104
0.313,0.198
10
false
17
3.063,2.958 3.375,3.156
0.313,0.198
10
false
20
3.052,3.469 3.365,3.667
0.313,0.198
10
false
19
0.573,3.469 0.885,3.667
0.313,0.198
10
false
13
3.844,0.51 4,0.708
0.156,0.198
10
false
B
3.615,0.51 3.771,0.708
0.156,0.198
10
false
1
3.563,1.396 3.875,1.594
0.313,0.198
10
false
10
3.635,1.906 3.792,2.104
0.156,0.198
10
false
8
3.625,2.969 3.781,3.167
0.156,0.198
10
false
5
3.625,3.469 3.781,3.667
0.156,0.198
10
false
9
3.625,4.104 3.781,4.302
0.156,0.198
10
false
2
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Inspect the fuse for circuits related to this system before performing the following procedure.
·If the sliding roof ECU (sliding roof drive gear assembly) is removed and reinstalled or replaced, the sliding roof ECU (sliding roof drive gear assembly) must be initialized.
·If a sliding roof ECU (sliding roof drive gear assembly) DTC is output, first perform troubleshooting for the sliding roof ECU (sliding roof drive gear assembly) DTC.
PROCEDURE
1.PERFORM ACTIVE TEST USING GTS (Slide Roof)
a.
Perform the Active Test according to the display on the GTS.
- Body Electrical > Sliding Roof > Active Test
-
Tester Display Measurement Item Control Range Diagnostic Note Slide Roof Operate sliding roof motor OFF / Opn/Dwn / Clos/Up -
- Body Electrical > Sliding Roof > Active Test
-
Tester Display Slide Roof - 50004 147 1
- OK:
Slide roof is operated using GTS.
- Result:
Proceed to OK NG
OK
REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)
NG
2.READ VALUE USING GTS (Open Switch, Close Switch, Up Switch, Down Switch)
2.READ VALUE USING GTS (Open Switch, Close Switch, Up Switch, Down Switch)
a.
Read the Data List according to the display on the GTS.
- Body Electrical > Sliding Roof > Data List
-
Tester Display Measurement Item Range Normal Condition Diagnostic Note Open Switch OPEN switch signal OFF or ON OFF: OPEN switch on the slide switch not pressed
ON: OPEN switch on the slide switch pressed- Close Switch CLOSE switch signal OFF or ON OFF: CLOSE switch on the slide switch not pressed
ON: CLOSE switch on the slide switch pressed- Up Switch UP switch signal OFF or ON OFF: UP switch not on the tilt switch pressed
ON: UP switch on the tilt switch pressed- Down Switch DOWN switch signal OFF or ON OFF: DOWN switch on the tilt switch not pressed
ON: DOWN switch on the tilt switch pressed-
- Body Electrical > Sliding Roof > Data List
-
Tester Display Open Switch Close Switch Up Switch Down Switch - 50003 147 1,4,7,10
- OK:
The GTS display changes according to the operation of each switch as shown in the table.
- Result:
Proceed to OK NG
OK
REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)
NG
3.INSPECT MAP LIGHT SUB-ASSEMBLY (SLIDE/TILT SWITCH)
3.INSPECT MAP LIGHT SUB-ASSEMBLY (SLIDE/TILT SWITCH)
a.
Remove the map light sub-assembly (slide/tilt switch).
b.
Inspect the map light sub-assembly (slide/tilt switch).
- Result:
Proceed to OK NG
OK
4.CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU [SLIDING ROOF DRIVE GEAR ASSEMBLY] - MAP LIGHT SUB-ASSEMBLY [SLIDE/TILT SWITCH] AND BODY GROUND)
NG
REPLACE MAP LIGHT SUB-ASSEMBLY (SLIDE/TILT SWITCH)
4.CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU [SLIDING ROOF DRIVE GEAR ASSEMBLY] - MAP LIGHT SUB-ASSEMBLY [SLIDE/TILT SWITCH] AND BODY GROUND)
a.
Disconnect the P24 map light sub-assembly (slide/tilt switch) connector.
b.
Disconnect the P4 sliding roof ECU (sliding roof drive gear assembly) connector.
c.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition P4-5 (UP) - P24-20 (UP) Always Below 1 Ω P4-8 (CLS) - P24-17 (CLS) Always Below 1 Ω P4-9 (DWN) - P24-19 (DOWN) Always Below 1 Ω P4-10 (OPN) - P24-18 (OPN) Always Below 1 Ω P4-2 (E) - Body ground Always Below 1 Ω P24-13 (GND) - Body ground Always Below 1 Ω P4-5 (UP) or P24-20 (UP) - Body ground Always 10 kΩ or higher P4-8 (CLS) or P24-17 (CLS) - Body ground Always 10 kΩ or higher P4-9 (DWN) or P24-19 (DOWN) - Body ground Always 10 kΩ or higher P4-10 (OPN) or P24-18 (OPN) - Body ground Always 10 kΩ or higher
- Result:
Proceed to OK NG
OK
REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
