K121 CVT  TRANSMISSION CONTROL CABLE  INSTALLATION

0.49,1.448 0.708,1.656 0.219,0.208 10 true *a

*a

N

Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

NOTICE:

1.615,0.552 1.823,0.25 1.823,0.25 1.99,0.25 true 1.958,1.344 2.25,0.938 2.25,0.938 2.729,0.938 true 1.531,1.813 1.99,1.813 true 2.042,0.146 2.323,0.385 0.281,0.24 10 false *1 2.792,0.813 3.073,1.052 0.281,0.24 10 false *a 1.323,1.708 1.521,1.938 0.198,0.229 10 true *b

*1	Transmission Control Shaft Lever
*a	Manual Valve Link Lever Sub-assembly
*b	Manual Valve

If the transmission control shaft lever is turned counterclockwise more than necessary, manual valve link lever sub-assembly may separate from the manual valve.

1,0.75 1.167,0.75 1.167,0.75 1.313,1.219 true 0.792,0.667 0.958,0.833 0.167,0.167 10 true *a

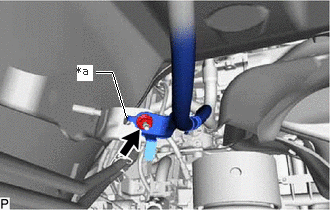

*a	Align the hole on the transmission control cable bracket with the protrusion of the vehicle body.

Connect the transmission control cable assembly to the vehicle body with the nut.

Torque:

6.0 N*m (61 kgf*cm, 53 in.*lbf)

NOTICE:

Do not deform the transmission control cable bracket.

0.75,2.833 0.917,3 0.167,0.167 10 false *a 2.458,2.833 2.625,3 0.167,0.167 10 false *b

*a	Correct
*b	Incorrect

Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.
