RM38N0EC _51 Engine / Hybrid System _111785 M20C-FKS, M20D-FKS ENGINE CONTROL _0503275 CRANKSHAFT POSITION SENSOR A

M20C-FKS, M20D-FKS ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during crankshaft position sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: When the starter assembly is replaced, "ST No. 1 relay" must be also replaced

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of starter assembly*1 Clear the number of starter operations Stop and Start System (Click here)

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 11401G 2.REMOVE CRANKSHAFT POSITION SENSOR

a.
A475959

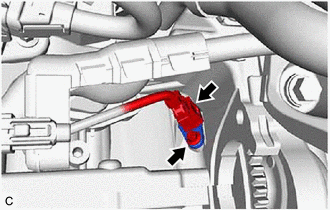

Disconnect the crankshaft position sensor connector.


b.

Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.

NOTICE:

If the crankshaft position sensor has been struck or dropped, replace it.



c.
A456841C01
1.573,1.948 1.573,1.625 false 1.521,1.958 1.833,2.115 0.313,0.156 10 false *1
*1 O-ring


Perform this procedure only when reusing the crankshaft position sensor.

i.

Remove the O-ring from the crankshaft position sensor.

NOTICE:
·

Make sure to only remove the O-ring with bare hands.

·

When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.

·

If the O-ring groove of the crankshaft position sensor is damaged, replace the crankshaft position sensor with a new one.
