RM38N0EC _51 Engine / Hybrid System _111788 M20C-FKS, M20D-FKS STARTING _0702411 STARTER(for 1.2 kW Type) A

M20C-FKS, M20D-FKS STARTING  STARTER(for 1.2 kW Type)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during starter assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: When the starter assembly is replaced, "ST No. 1 relay" must be also replaced

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of starter assembly*1 Clear the number of starter operations Stop and Start System (Click here)

NOTICE:

When the starter assembly is replaced, "ST No. 1 relay" must also be replaced.


HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 11363A 4.REMOVE FLYWHEEL HOUSING SIDE COVER

a.

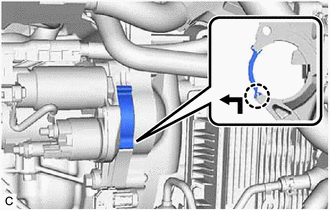

A573483

Disengage the claw as shown in the illustration to remove the flywheel housing side cover.


Hide 28100 5.REMOVE STARTER ASSEMBLY

a.

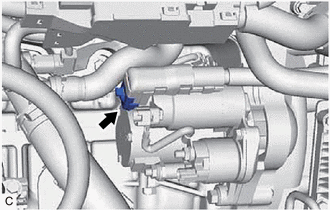

A573484

Open the terminal cap.


b.

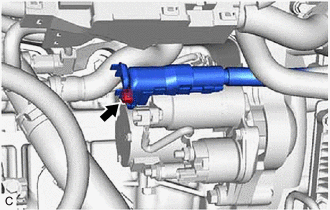

A573485

Remove the nut and disconnect the No. 2 engine wire from terminal 30.


c.

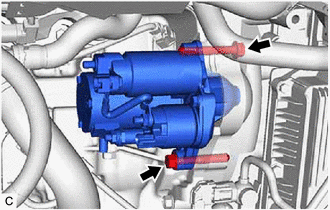

A573486

Remove the 2 bolts and starter assembly from the cylinder block sub-assembly.
