RM38N0EC _56 Audio / Visual / Telematics _111824 TELEMATICS _0502894 TELEMATICS SYSTEM U

TELEMATICS  TELEMATICS SYSTEM  TERMINALS OF ECU


TELEMATICS TRANSCEIVER

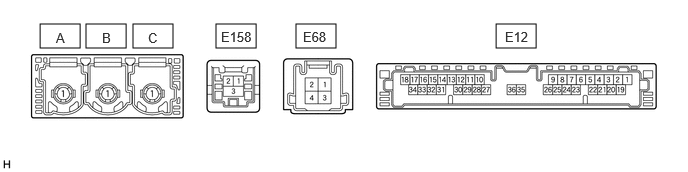

E418542N44
0.417,0.25 0.833,0.5 0.417,0.25 0.896,0.25 1.313,0.5 0.417,0.25 1.385,0.25 1.802,0.5 0.417,0.25 2.25,0.25 2.667,0.5 0.417,0.25 3.083,0.25 3.5,0.5 0.417,0.25 5.167,0.25 5.583,0.5 0.417,0.25 0.583,0.313 0.74,0.51 0.156,0.198 10 false A 1.063,0.313 1.219,0.51 0.156,0.198 10 false B 1.542,0.313 1.698,0.51 0.156,0.198 10 false C 2.302,0.302 2.646,0.542 0.344,0.24 10 false E158 3.156,0.302 3.5,0.542 0.344,0.24 10 false E68 5.26,0.302 5.604,0.542 0.344,0.24 10 false E12

Terminal No. (Symbol) Terminal Description Condition Specified Condition
E12-1 (+B) - E12-20 (E) Power source (+B) Ignition switch off*1
Always*2
11 to 14 V
E12-3 (SIG-) - E12-20 (E) Ground Always Below 1 V
E12-4 (IND1) - E12-20 (E) Emergency call switch red indicator illumination signal For 5 seconds after turning the ignition switch to ON 1 to 8.5 V
Ignition switch off Below 1 V
E12-5 (MCVD) - E12-20 (E) Telephone microphone assembly power supply*5
Microphone assembly power supply*4*6
Ignition switch to ON 4 to 6 V*1
7.5 to 8.5 V*2
Ignition switch off Below 1 V
E12-6 (MCI+) - E12-20 (E) Microphone voice signal Voice being input to telephone microphone assembly*5
Voice being input to microphone assembly*4*6
A waveform synchronized with microphone voice signal is input
E12-7 (MCI-) - E12-20 (E) Microphone voice signal Always Below 1 V
E12-14 (MUTE) - E12-20 (E) MUTE Signal Audio system playing Above 3.5 V
Emergency call mode Below 1 V
E12-15 (USBV) - E12-20 (E) Telephone microphone assembly power supply*5
Microphone assembly power supply*4*6
Ignition switch to ON 4.75 to 5.25 V
Ignition switch off Below 1 V
E12-16 (MCO+) - E12-20 (E)*3 Microphone voice signal Voice being input to telephone microphone assembly*5
Voice being input to microphone assembly*4*6
A waveform synchronized with microphone voice signal is input
E12-19 (IG2) - E12-20 (E) Power source (IG) Ignition switch to ON 11 to 14 V
Ignition switch off Below 1 V
E12-20 (E) - Body ground Ground Always Below 1 V
E12-21 (SIG1) - E12-3 (SIG-) Emergency call switch button condition signal Emergency call switch not pressed 1.3 to 1.9 V
Emergency call switch pressed 0.5 to 0.8 V
E12-22 (IND2) - E12-20 (E) Emergency call switch green indicator illumination signal For 5 seconds after turning the ignition switch to ON 1 to 8.5 V
Ignition switch off Below 1 V
E12-23 (SGND) - E12-20 (E) Shield ground Always Below 1 V
E12-25 (CANP) CAN communication signal - -
E12-26 (CANN) CAN communication signal - -
E12-31 (USBG) - Body ground Shield ground Always Below 1 V
E12-32 (MCO-) - E12-20 (E)*3 Microphone voice signal Always Below 1 V
E68-1 (SPI+) - E12-20 (E) Sound signal Audio system playing A waveform synchronized with sound signals is output
E68-2 (SPI-) - E12-20 (E) Sound signal Audio system playing A waveform synchronized with sound signals is output
E68-3 (SPO+) - E12-20 (E) Sound signal Emergency call mode A waveform synchronized with the received voice is output
E68-4 (SPO-) - E12-20 (E) Sound signal Emergency call mode A waveform synchronized with the received voice is output
E12-13 (GSW) - E12-20 (E) Collision detection signal Ignition switch to ON Pulse generation (Refer to waveform 1)
E158-1 (USB+)*3
E158-1 (USB-)*4
USB communication line - -
E158-2 (USB-)*3
E158-2 (USB+)*4
USB communication line - -
E158-3 (USBS) - Body ground*3
E158-3 (UGBS) - Body ground*4
Shield ground Always Below 1 V

*1: for HV Model

*2: for Gasoline Model

*3: w/o Navigation System

*4: w/ Navigation System

*5: for SFTM Made without Navigation System

*6: for GTMC Made without Navigation System
