RM38N0EC _56 Audio / Visual / Telematics _111823 NAVIGATION / MULTI INFO DISPLAY _0502893 NAVIGATION SYSTEM U

NAVIGATION / MULTI INFO DISPLAY  NAVIGATION SYSTEM  TERMINALS OF ECU


NAVIGATION RECEIVER ASSEMBLY

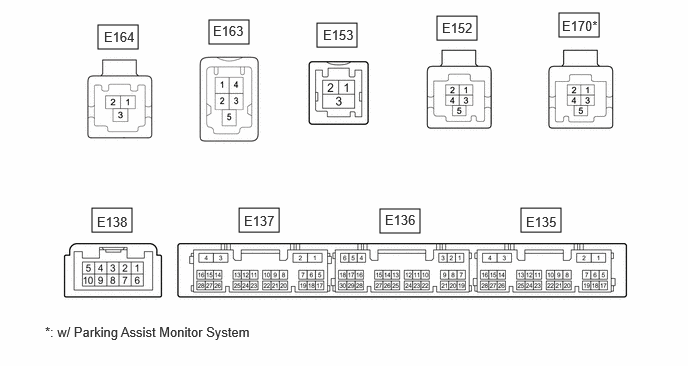

E541810E02
1.021,0.26 1.438,0.51 0.417,0.25 3.302,0.24 3.719,0.49 0.417,0.25 4.552,0.167 4.969,0.417 0.417,0.25 0.958,2.167 1.375,2.417 0.417,0.25 2.49,2.167 2.906,2.417 0.417,0.25 3.958,2.177 4.375,2.427 0.417,0.25 5.427,2.167 5.844,2.417 0.417,0.25 2.177,0.208 2.594,0.458 0.417,0.25 5.823,0.135 6.24,0.385 0.417,0.25 5.479,2.229 5.906,2.448 0.427,0.219 10 false E135 4.01,2.208 4.438,2.427 0.427,0.219 10 false E136 2.542,2.219 2.969,2.438 0.427,0.219 10 false E137 4.604,0.208 5.031,0.427 0.427,0.219 10 false E152 1.01,2.229 1.438,2.448 0.427,0.219 10 false E138 3.365,0.281 3.792,0.5 0.427,0.219 10 false E153 1.083,0.302 1.51,0.521 0.427,0.219 10 false E164 2.219,0.24 2.646,0.458 0.427,0.219 10 false E163 5.854,0.188 6.281,0.406 0.427,0.219 10 false E170* 0.469,3.375 4.354,3.615 3.885,0.24 10 false *: w/ Parking Assist Monitor System

Connector E137
Terminal No. (Symbol) Terminal Description Condition Specified Condition

*1: w/ JBL Sound System

*2: w/ Panoramic View Monitor System

E137-1 (GND1) - Body ground Ground Always Below 1 Ω
E137-4 (+B1) - E137-1 (GND1) Power source (+B) Ignition switch off 10.5 to 16 V
E137-5 (REV) - E137-1 (GND1) Reverse Signal Ignition switch ON, shift position not in R → shift position in R 2 V or less → 11 to 14 V
E137-7 (PKB) - E137-1 (GND1) Parking brake signal Ignition switch ON
Parking brake released → Ignition switch ON
Parking brake applied 		2 V or less → 3 V or higher
E137-8 (SPD) - E137-1 (GND1) Vehicle speed signal Wheel being rotated Waveform 1
E137-12 (MUT1) - E137-1(GND1)*1 Mute signal Audio system playing → Mute 3.5 V or higher → Below 1 V
E137-15 (IG) - E137-1 (GND1) Power source (IG) Ignition switch ON 11 to 14 V
E137-16 (ACC1) - E137-1 (GND1) Power source (ACC) Ignition switch ACC 11 to 14 V
E137-17(REVD) - E137-1(GND1) Camera image transition signal Normal → camera image screen change 2 V or less → 6 V or higher
E137-18 (CSWA)*2 - E137-1 (GND1) Camera image transition signal Normal → camera image screen change 2 V or less → 6 V or higher
E137-19 (CSW+) - E137-1 (GND1) Camera image transition signal Normal → camera image screen change 2 V or less → 6 V or higher
E137-20 (SWG) - E137-1 (GND1) Ground Always Below 1 Ω
E137-21 (SW1) - E137-1 (GND1) Steering pad switch signal No switch pushed → Volume- switch pushed → Volume+ switch pushed → Seek- switch pushed → Seek+ switch pushed 2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less
E137-22 (SW2) - E137-1 (GND1) Steering pad switch signal No switch pushed → Voice switch pushed → Off hook switch pushed → On hook switch pushed → MODE switch pushed 2.7 V or higher → approximately 2.3 V → approximately 1.6 V → approximately 1.0 V → 0.8 V or less
E137-23 (ADIM) - E137-1 (GND1) Illumination (auto dimmer) signal Ignition switch ON
Automatic light control sensor covered by hand, and light control switch in tail or head position 		9 V or higher
Ignition switch ON
Automatic light control sensor not covered by hand, and light control switch in tail or head position 		Below 1 V
E137-25 (ILL+) - E137-1 (GND1) Illumination signal Ignition switch ON, light control switch in tail or head position 11 to 14 V
E137-26 (WK2) - E137-1 (GND1)*1 Stereo componentamplifier assembly start up signal Ignition switch ACC 4 V or higher

Connector E136
Terminal No. (Symbol) Terminal Description Condition Specified Condition

*1: w/ "JBL" Sound System

*2: w/o "JBL" Sound System

*3: w/ Panoramic View Monitor System

E136-1 (TX1+)*1 AVC-LAN communication signal - -
E136-2 (TX1-)*1 AVC-LAN communication signal - -
E136-5 (TMUT) - E137-1 (GND1)*2 Mute signal Normal → Emergency call mode 2.0 V or higher → Below 1 V
E136-11 (CNH1) Local bus communication signal Service Menu -
E136-12 (CNL1) Local bus communication signal Service Menu -
E136-13 (CANH) CAN communication signal Service Menu -
E136-14 (CANL) CAN communication signal Service Menu -
E136-17 (USBG) - Body ground Ground Always Below 1 Ω
E136-18 (USBV) - E137-1 (GND1) Telematics transceiver USB power source Ignition switch ON 3 V or higher
E136-21 (MIN+) - E137-1 (GND1) Microphone voice signal Voice is being input A waveform synchronized with sound signals is output
E136-22 (MIN-) - E137-1 (GND1) Microphone voice signal ground Always Below 1 Ω
E136-24 (SGND) - Body ground Shield ground Always Below 1 Ω
E136-25 (SNS) - E137-1 (GND1) Microphone circuit open detection signal Always Below 1 Ω
E136-28 (V+) - E136-29 (V-)*3 Video signal (analog) Ignition switch ON, shift lever in R Waveform 2
E117-29 (V-) - E137-1 (GND1)*3 Video signal (analog) ground Always Below 1 Ω

Connector E135
Terminal No. (Symbol) Terminal Description Condition Specified Condition

*: w/ "JBL" Sound System

E135-4 (FBGN) - E137-1(GND1)* Shield ground Always Below 1 Ω
E135-15 (FB2+) - E137-1 (GND1)* Stereo component amplifier assembly voice signal 2 Voice is being input A waveform synchronized with sound signals is output
E135-16 (FB2-) - E137-1 (GND1)* Stereo component amplifier assembly voice signal 2 Voice is being input A waveform synchronized with sound signals is output
E135-17 (MI2+) - E137-1 (GND1) Microphone 2 voice signal Voice is being input A waveform synchronizedwith sound signals isoutput
E135-18 (MI2-) - E137-1 (GND1) Microphone 2 voice signal ground Always Below 1 Ω
E135-19 (SGD2) - E137-1 (GND1) Ground Always Below 1 Ω
E135-20 (MAC2) - E137-1 (GND1) Microphone 2 powersource Ignition switch ON 7.5 to 8.5 V
E135-21 (SNS2) - E137-1 (GND1) Microphone 2 open circuitdetection signal Always Below 1 Ω
E135-27 (FB1+) - E137-1 (GND1)* Stereo component amplifier assembly voice signal 1 Voice is being input A waveform synchronized with sound signals is output
E135-28 (FB1-) - E137-1 (GND1)* Stereo component amplifier assembly voice signal 1 Voice is being input A waveform synchronized with sound signals is output

Connector E138
Terminal No. (Symbol) Terminal Description Condition Specified Condition

*1: w/o "JBL" Sound System

*2: w/ "JBL" Sound System

E138-1 (FR+) - E137-1 (GND1) Sound signal Audio system playing A waveform synchronized with sound signals is output
E138-2 (FL+) - E137-1 (GND1) Sound signal Audio system playing A waveform synchronized with sound signals is output
E138-3 (RL+) - E137-1 (GND1) Sound signal*1
Interrupt sound signal*2 		Audio system playing*1
Interrupt sound signalbeing output*2 		A waveform synchronized with sound signals is output
E138-4 (RR+) - E137-1 (GND1) Sound signal*1
Interrupt sound signal*2 		Audio system playing*1
Interrupt sound signalbeing output*2 		A waveform synchronized with sound signals is output
E138-6 (FR-) - E137-1 (GND1) Sound signal Audio system playing A waveform synchronized with sound signals is output
E138-7 (FL-) - E137-1 (GND1) Sound signal Audio system playing A waveform synchronized with sound signals is output
E138-8 (RL-) - E137-1 (GND1) Sound signal*1
Interrupt sound signal*2 		Audio system playing*1
Interrupt sound signalbeing output*2 		A waveform synchronized with sound signals is output
E138-9 (RR-) - E137-1 (GND1) Sound signal*1
Interrupt sound signal*2 		Audio system playing*1
Interrupt sound signalbeing output*2 		A waveform synchronized with sound signals is output

Connector E164
Terminal No. (Symbol) Terminal Description Condition Specified Condition
E164-1 (USB+) USB communication signal - -
E164-2 (USB-) USB communication signal - -
E164-3 (USBS) Shield ground Always Below 1 Ω

Connector E153
Terminal No. (Symbol) Terminal Description Condition Specified Condition
E153-1 (LVDS-) Video signal (Digital) - -
E153-2 (LVDS+) Video signal (Digital) - -
E153-3 (GND) - Body ground Shield ground Always Below 1 Ω

Connector E163
Terminal No. (Symbol) Terminal Description Condition Specified Condition
E163-1 (USV1) Power source Ignition switch ON 4.75 to 5.25 V
E163-2 (US1-) USB communication signal - -
E163-3 (US1+) USB communication signal - -
E163-4 (UGD1) Ground Always Below 1 Ω
E163-5 (USG1) Shield ground Always Below 1 Ω

Connector E152
Terminal No. (Symbol) Terminal No. (Symbol) Condition Specified Condition
E152-1 (GND) Ground Always Below 1 Ω
E152-2 (VCC+) Power source Ignition switch ON 4.75 to 5.25 V
E152-3 (LVDS-) Video signal (Digital) - -
E152-4 (LVDS+) Video signal (Digital) - -
E152-5 (SGND) - Body ground Shield ground Always Below 1 Ω

Connector E170 (w/ Parking Assist Monitor System)
Terminal No. (Symbol) Terminal No. (Symbol) Condition Specified Condition
E170-1 (CGND) - E137-1 (GND1) Camera Ground Always Below 1 Ω
E170-2 (CB+) - E170-1 (CGND) Camera power source Ignition switch ON Below 1 Ω
E170-3 (CV+) Video Signal - -
E170-4 (CV-) Video Signal - -
E170-5 (SGND) - E137-1 (GND1) Shield ground Always Below 1 Ω

a.
E149152N24
2.823,1.188 3.406,1.552 0.583,0.365 10 false GND

Waveform 1

Item Content
Measurement terminal E137-8 (SPD) - E137-1 (GND1)
Measurement setting 5 V/DIV, 20 ms/DIV
Condition Wheel being rotated

HINT:

The period changes depending on the rotation speed of the wheels.



b.

Waveform 2

E241522C02
1.083,1.219 1.302,1.594 1.302,1.594 1.479,1.594 false 0.99,1.26 0.781,1.594 0.781,1.594 0.604,1.594 false 5.052,1.094 5.292,1.594 5.292,1.594 5.469,1.594 false 4.938,1.156 4.76,1.594 4.76,1.594 4.583,1.594 false 0.073,0.031 0.25,0.208 0.177,0.177 10 *a 4.052,0.031 4.229,0.208 0.177,0.177 10 *b 1.5,1.531 1.698,1.708 0.198,0.177 10 *d 0.417,1.531 0.604,1.708 0.188,0.177 10 *c 5.49,1.531 5.688,1.708 0.198,0.177 10 *d 4.406,1.531 4.594,1.708 0.188,0.177 10 *c 0.188,0.802 0.667,1.094 0.479,0.292 10 GND 4.063,0.813 4.448,1.073 0.385,0.26 10 GND
*a Waveform A *b Waveform B
*c Synchronization Signal *d Video Waveform


Item Content
Measurement terminal E136-28 (V+) - E136-29 (V-)
Measurement setting 0.2 V/DIV, 50 μS/DIV
Condition
·

Waveform A: Rear television camera assembly not covered, ignition switch ON, shift lever in R and image of the area behind the vehicle being displayed

·

Waveform B: Rear television camera assembly covered by hand etc., ignition switch ON, shift lever in R and black screen being displayed



NOTICE:
·

The video waveform changes according to the image sent by the Parking Assist ECU.

·

The video waveform is constantly output when the ignition switch is turned to ACC.





STEREO COMPONENT AMPLIFIER ASSEMBLY (w/ "JBL" Sound System)

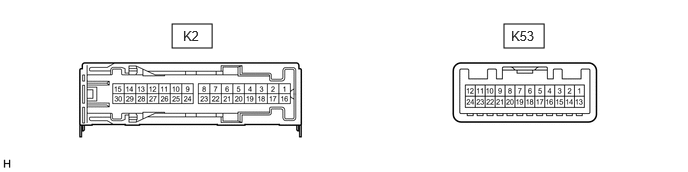

E225807N70
1.792,0.25 2.208,0.5 0.417,0.25 5.25,0.25 5.667,0.5 0.417,0.25 1.906,0.292 2.219,0.49 0.313,0.198 10 false K2 5.323,0.292 5.635,0.49 0.313,0.198 10 false K53

Terminal No. (Symbol) Terminal Description Condition Specified Condition

*1: w/o Stop and Start System

*2: w/ Stop and Start System

K2-1 (+B) - K2-3 (GND) Power source (+B) Ignition switch off 11 to 14 V*1
9.5 to 16 V*2
K2-3 (GND) - Body ground Ground Always Below 1 V
K2-4 (WFL+) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-5 (WFR+) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-6 (WF2+) - K2-3 (GND) Sound signal (Woofer) Audio system playing A waveform synchronized with sound signals is output
K2-7 (WF1+) - K2-3 (GND) Sound signal (Woofer) Audio system playing A waveform synchronized with sound signals is output
K2-10 (TWL+) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-11 (TWR+) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-12 (FL+) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-13 (FR+) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-14 (RL+) - K2-3 (GND) Sound signal (Rear left) Audio system playing A waveform synchronized with sound signals is output
K2-15 (RR+) - K2-3 (GND) Sound signal (Rear right) Audio system playing A waveform synchronized with sound signals is output
K2-16 (+B2) - K2-3 (GND) Power source (+B) Ignition switch off 11 to 14 V*1
9.5 to 16 V*2
K2-18 (GND2) - Body ground Ground Always Below 1 V
K2-19 (WFL-) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-20 (WFR-) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-21 (WF2-) - K2-3 (GND) Sound signal (Woofer) Audio system playing A waveform synchronized with sound signals is output
K2-22 (WF1-) - K2-3 (GND) Sound signal (Woofer) Audio system playing A waveform synchronized with sound signals is output
K2-25 (TWL-) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-26 (TWR-) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-27 (FL-) - K2-3 (GND) Sound signal (Front left) Audio system playing A waveform synchronized with sound signals is output
K2-28 (FR-) - K2-3 (GND) Sound signal (Front right) Audio system playing A waveform synchronized with sound signals is output
K2-29 (RL-) - K2-3 (GND) Sound signal (Rear left) Audio system playing A waveform synchronized with sound signals is output
K2-30 (RR-) - K2-3 (GND) Sound signal (Rear right) Audio system playing A waveform synchronized with sound signals is output
K53-1 (MUTE) - K2-3 (GND) Mute signal Ignition switch ACC
Audio system playing 		2 V or higher
Audio system changing modes Below 1 V
K53-2 (L-) - K2-3 (GND) Sound signal (Left) Audio system playing A waveform synchronized with sound signals is output
K53-3 (L+) - K2-3 (GND) Sound signal (Left) Audio system playing A waveform synchronized with sound signals is output
K53-4 (R-) - K2-3 (GND) Sound signal (Right) Audio system playing A waveform synchronized with sound signals is output
K53-5 (R+) - K2-3 (GND) Sound signal (Right) Audio system playing A waveform synchronized with sound signals is output
K53-6 (SLD) - Body ground Shield ground Always Below 1 V
K53-7 (TX-) AVC-LAN communication signal - -
K53-8 (TX+) AVC-LAN communication signal - -
K53-9 (FB1-) - Body ground AMP Feedback Sound 1- Audio system playing A waveform synchronized with sound signals is output
K53-10 (FB1+) - Body ground AMP Feedback Sound 1+ Audio system playing A waveform synchronized with sound signals is output
K53-11 (SPD) - K2-3 (GND) Vehicle speed signal Ignition switch ON
Wheel being rotated 		Pulse generation
K53-12 (WK2) - Body ground Wakeup signal Ignition switch ACC
Radio switch ON 		11 to 14 V
Ignition switch ACC
Radio switch OFF 		Below 1 V
K53-13 (SLD1) - Body ground Shield ground Always Below 1 V
K53-14 (II1-) - K2-3 (GND) Voice signal Voice guidance sounding A waveform synchronized with voice signals is output
K53-15 (II1+) - K2-3 (GND) Voice signal Voice guidance sounding A waveform synchronized with voice signals is output
K53-16 (II2-) - K2-3 (GND) Voice signal Voice guidance sounding A waveform synchronized with voice signals is output
K53-17 (II2+) - K2-3 (GND) Voice signal Voice guidance sounding A waveform synchronized with voice signals is output
K53-18 (SLD2) - Body ground Shield ground Always Below 1 V
K53-21 (FB2-) - Body ground AMP Feedback Sound 2- Audio system playing A waveform synchronized with sound signals is output
K53-22 (FB2+) - Body ground AMP Feedback Sound 2+ Audio system playing A waveform synchronized with sound signals is output
K53-24 (TMUT) - Body ground Mute signal Ignition switch ACC
Audio system playing 		2 V or higher
Emergency call mode Below 1 V

a.
E149152N26
2.833,1.188 3.281,1.51 0.448,0.323 10 false GND

Waveform 1

Item Content
Measurement terminal K53-11 (SPD) - K3-3 (GND)
Measurement setting 5 V/DIV., 20 ms/DIV.
Condition Wheel being rotated

HINT:

The period changes depending on the rotation speed of the wheels.




TELEMATICS TRANSCEIVER


HINT:

Click hereAudio / Visual / Telematics>TELEMATICS>TELEMATICS SYSTEM>TERMINALS OF ECU



COMBINATION METER ASSEMBLY


HINT:

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (for TFT Meter Type)>TERMINALS OF ECU



REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)


HINT:

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST MONITOR SYSTEM>TERMINALS OF ECU



PARKING ASSIST ECU (w/ Panoramic View MonitorSystem)


HINT:

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM>TERMINALS OF ECU
