M20C-FKS, M20D-FKS ENGINE MECHANICAL ENGINE UNIT REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cylinder head gasket removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures afterinstallation. *1: Also necessary after performing a tire rotation. *2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters areinstalled to the same location. *3: When the starter assembly is replaced, "ST relay" must be also replaced. *4: The vehicle height changes because of suspension or tire replacement. *5: If transaxle compensation code read from ECM *6: If transaxle compensation code not read from ECM |
|||
| Battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
| Replacement of ECM | Update ECU security key | Vehicle Control History (RoB) are stored | (202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,)
|
| Perform Vehicle Identification Number (VIN) or frame number registration | DTC is output | (202303,999999,_51,_111785,_0504416,RM1000000029BFA,)
|
|
| Code registration | Engine start | See Service Bulletin for the registration method | |
·
Transfer transaxle compensation code*5 ·
Reset transaxle compensation code*6 ·
CVT oil pressure calibration ·
Perform road test to allow ECM to learn |
·
Large shift shock ·
Deterioration of fuel efficiency |
Initialization:(202303,999999,_52,_111806,_0584611,RM1000000029R1M,)
Registration:( 202303,999999,_52,_111806,_0584611,RM1000000029R1L,)
|
|
·
Replacement of throttle body with motor assembly ·
Cleaning the deposits from the throttle body with motor assembly ·
Replacement of cam timing control motor with EDU assembly* ·
Replacement of camshaft timing gear assembly* ·
Replacement of engine assembly ·
Replacement of cylinder head subassembly ·
Replacement of camshaft (for intake or exhaust camshaft) ·
Replacement of camshaft timing exhaust gear assembly ·
Replacement of port fuel injector assembly ·
Replacement of direct fuel injector assembly ·
Replacement of fuel pump assembly (for high pressure side) ·
Replacement of ignition coil assembly ·
Replacement of Spark plug ·
Replacement of EGR valve assembly ·
Gas leak from exhaust system is repaired |
Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)
|
| Replacement of Starter assembly*3 | Clear the number of starteroperations | Stop and Start System | (202111,999999,_51,_111803,_0509671,RM1000000020651,)
|
| Replacement of Battery | Integrated current valueinitialization | ||
·
Replacement of Continuously variabletransaxle assembly ·
Replacement of CVT Fluid |
Air bleed the oil pump withmotor assembly | ||
| Replacement of continuously variable transaxle assembly | ·
Input transaxle compensation code into ECM ·
Perform reset memory ·
CVT oil pressure calibration ·
Perform road test to allow ECM to learn |
·
Large shift shock ·
Deterioration of fuel efficiency |
(202303,999999,_52,_111806,_0584611,RM1000000029R1M,)for K121, K121F Initialization
( 202303,999999,_52,_111806,_0584611,RM1000000029R1L,)for K121, K121F Registration
|
| Replacement of CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | (202303,999999,_52,_111806,_0584611,RM1000000029R1M,)
|
| Tires | ·
Initialization*1*2 ·
Tire Position Identification*1*2 |
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below |
| Suspension parts*4 | Parking assist ECU initialization | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
|
|
| Front wheel alignment adjustment | ·
Perform reset memory ·
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system does not operate correctly |
(202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
|
| Front bumper assembly* | Front television camera view adjustment | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Items for which learning is completed by driving the vehicle Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System Idle the engine for approximately 5 to 60minutes or drive the vehicle until stop andstart control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
43457

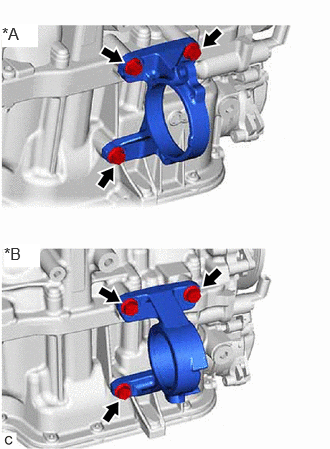

1.REMOVE DRIVE SHAFT BEARING BRACKET
| *A | for 2WD |
| *B | for AWD |
Remove the 3 bolts and drive shaft bearing bracket.
16361A
2.REMOVE V-RIBBED BELT
27020
3.REMOVE GENERATOR ASSEMBLY
88310
4.REMOVE COMPRESSOR ASSEMBLY WITH PULLEY
16620D

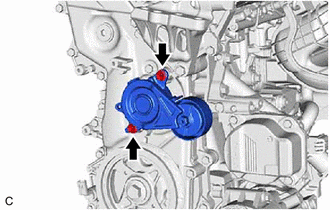

5.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
- NOTICE:
-
- ·
Do not apply or add any oil or grease to the belt tensioner to prevent abnormal noises from the belt tensioner pulley, belt squealing, etc.
·Do not allow oil or grease to adhere to the moving parts of the belt tensioner, as this may cause malfunctions.
Remove the 2 bolts and V-ribbed belt tensioner assembly from the No. 2 timing chain cover assembly.
16207

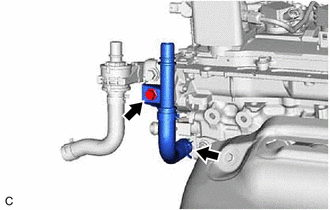

6.REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY
Slide the clip and disconnect the No. 2 water by-pass pipe sub-assembly from the water by-pass outlet sub-assembly.
Remove the bolt and No. 2 water by-pass pipe sub-assembly from the No. 2 water hose clamp bracket.
16260

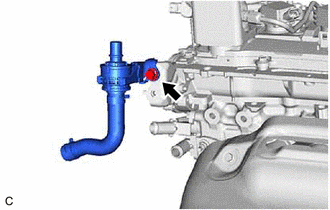

7.REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)
Remove the bolt and flow shutting valve (water by-pass hose assembly) from the No. 2 water hose clamp bracket.
16575B

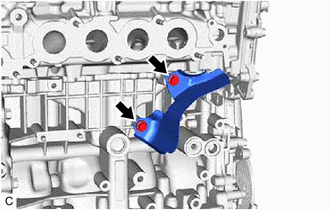

8.REMOVE NO. 2 WATER HOSE CLAMP BRACKET
Remove the 2 bolts and No. 2 water hose clamp bracket from the camshaft housing sub-assembly.

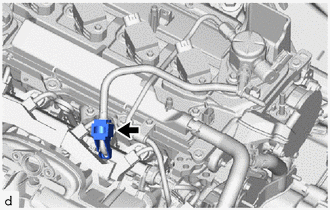

9.REMOVE NO. 1 VACUUM TRANSMITTING PIPE SUB-ASSEMBLY
Using a 14 mm union nut wrench, disconnect the No. 1 vacuum transmitting pipe sub-assembly from the exhaust manifold.
Remove the nut and No. 1 vacuum transmitting pipe sub-assembly from the exhaust manifold.
25715
10.REMOVE EMISSION CONTROL VALVE BRACKET
17167
11.REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
17118
12.REMOVE MANIFOLD STAY
17141
13.REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)
22030
14.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
22271
15.REMOVE THROTTLE BODY GASKET
25680
16.REMOVE EGR COOLER ASSEMBLY
25601
17.REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
25620
18.REMOVE EGR VALVE ASSEMBLY
16279

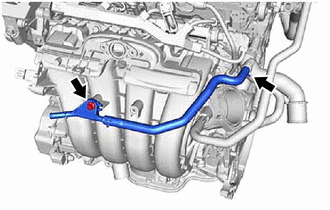

19.REMOVE NO. 3 WATER BY-PASS PIPE
Using an 8 mm socket wrench, remove the bolt and disconnect No. 3 water by-pass pipe from the intake manifold.
Slide the clip and remove the No. 3 water by-pass pipe from the water outlet.
17138B
20.REMOVE INTAKE MANIFOLD STAY
23820
21.DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
17111
22.REMOVE INTAKE MANIFOLD
17177
23.REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
23910A

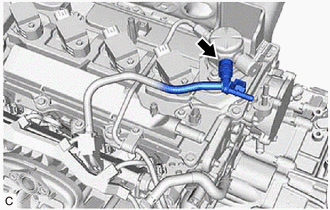

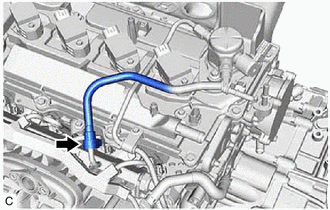

24.DISCONNECT FUEL TUBE SUB-ASSEMBLY
Disconnect the fuel tube sub-assembly from the fuel pump assembly (for high pressure).
Remove the fuel pipe clamp from the fuel tube connector.
Remove the fuel tube sub-assembly from the fuel delivery pipe sub-assembly.
23801P
25.REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
23100X
26.REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)
27.REMOVE NO. 1 WATER BY-PASS HOSE ASSEMBLY
Remove the bolt.
Slide the 2 clips and remove the No. 1 water by-pass hose assembly from the water inlet with thermostat sub-assembly and cylinder head sub-assembly.
82219A
28.REMOVE SENSOR WIRE
Disconnect the 4 connectors.
Disengage the 3 clamps.
Remove the bolt and sensor wire from the engine water pump assembly (water inlet housing).
82126A
29.REMOVE NO. 6 ENGINE WIRE
Disconnect the 4 connectors.
Disengage the 2 clamps.
Remove the 2 nuts and No. 6 engine wire from the wire harness clamp bracket.
23807
30.REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
23891
31.REMOVE FUEL DELIVERY SPACER
23291
32.REMOVE INJECTOR VIBRATION INSULATOR
82125N
33.REMOVE NO. 5 ENGINE WIRE
23250F
34.REMOVE PORT FUEL INJECTOR ASSEMBLY
23814B
35.REMOVE FUEL DELIVERY PIPE
23250E
36.REMOVE DIRECT FUEL INJECTOR ASSEMBLY
23255A
37.REMOVE FUEL INJECTOR SEAL
19500
38.REMOVE IGNITION COIL ASSEMBLY
11452D
39.REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
Remove the engine oil level dipstick.
Using an 8 mm socket wrench, remove the bolt and engine oil level dipstick guide from the cylinder head sub-assembly.
Remove the O-ring from the engine oil level dipstick guide.
16032
40.REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
17169A

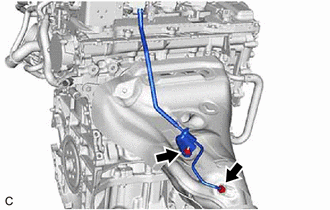

41.REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
Remove the 2 bolts and No. 3 exhaust manifold heat insulator from the cylinder block sub-assembly.
42.REMOVE PURGE VALVE (PURGE VSV)
25759A

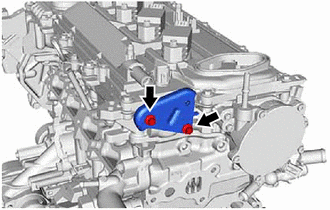

43.REMOVE VACUUM SURGE TANK BRACKET
Using an 8 mm socket wrench, remove the 2 bolts and vacuum surge tank bracket from the camshaft housing sub-assembly.
44.REMOVE WIRE HARNESS CLAMP BRACKET
Using an 8 mm socket wrench, remove the 2 bolts and wire harness clamp bracket from the No. 1 ventilation case.
Using an 8 mm socket wrench, remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.

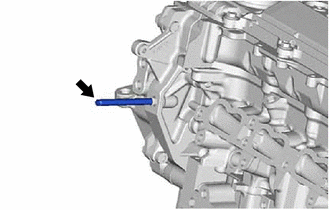

45.REMOVE STUD BOLT
- NOTICE:
-
If a stud bolt is deformed or its threads are damaged, replace it.
Using an E8 "TORX" socket wrench, remove the stud bolt from the timing chain cover assembly.
