M20C-FKS, M20D-FKS ENGINE MECHANICAL  REAR CRANKSHAFT OIL SEAL  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cylinder head gasket removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters areinstalled to the same location.

*3: When the starter assembly is replaced, "ST relay" must be also replaced.

*4: The vehicle height changes because of suspension or tire replacement.

*5: If transaxle compensation code read from ECM

*6: If transaxle compensation code not read from ECM

Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
Replacement of ECM Update ECU security key Vehicle Control History (RoB) are stored (Click here)
Perform Vehicle Identification Number (VIN) or frame number registration DTC is output (Click here)
Code registration Engine start See Service Bulletin for the registration method
·

Transfer transaxle compensation code*5

·

Reset transaxle compensation code*6

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


Initialization:(Click here)
Registration:(Click here)
·

Replacement of engine assembly

·

Gas leak from exhaust system is repaired


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)
Replacement of Starter assembly*3 Clear the number of starteroperations Stop and Start System (Click here)
Replacement of Battery Integrated current valueinitialization
·

Replacement of Continuously variabletransaxle assembly

·

Replacement of CVT Fluid


Air bleed the oil pump withmotor assembly
Replacement of continuously variable transaxle assembly
·

Input transaxle compensation code into ECM

·

Perform reset memory

·

CVT oil pressure calibration

·

Perform road test to allow ECM to learn


·

Large shift shock

·

Deterioration of fuel efficiency


(Click here)for K121, K121F Initialization
(Click here)for K121, K121F Registration
Replacement of CVT fluid ATF thermal degradation estimate reset The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
Suspension parts*4 Parking assist ECU initialization Panoramic View Monitor System (Click here)
Rear television camera assembly optical axis (Back camera position setting) Parking Assist Monitor System (Click here)
Front wheel alignment adjustment
·

Perform reset memory

·

Perform "Calibration"


·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

Electronically controlled brake system does not operate correctly


(Click here)
Front bumper assembly* Front television camera view adjustment Panoramic View Monitor System (Click here)

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60minutes or drive the vehicle until stop andstart control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 32101B 2.REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

a.

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.

NOTICE:
·

Using height adjustment attachments and plate lift attachments, keep the engine assembly level.

·

To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.

·

Using an engine sling device and engine lift, secure the engine assembly before servicing.




b.
A426058N05
0.99,0.75 0.99,1.333 0.99,1.333 1.406,1.333 false 0.677,0.75 1.177,0.75 false 0.354,0.677 0.813,0.875 0.458,0.198 10 false SST

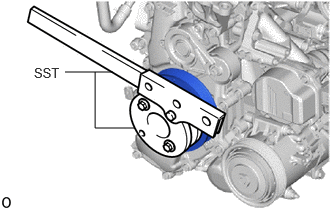

Using SST, hold the crankshaft pulley assembly.

SST
09213-54015
09330-00021


c.
A400433

Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly.


Hide 19315 3.REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

a.
A426060

Remove the No. 1 crankshaft position sensor plate.


Hide 11401L 4.REMOVE REAR ENGINE OIL SEAL

a.
A426061C02
2.99,1.458 3.177,0.771 true 1.625,1.615 1.354,1.292 true 2.917,1.49 3.229,1.688 0.313,0.198 10 false *b 1.646,1.531 1.865,1.729 0.219,0.198 10 true *a

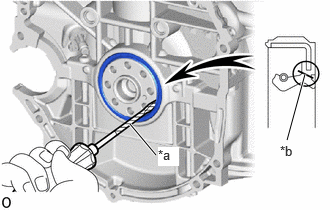

*a Protective Tape
*b Cut Position


Using a knife, cut off the lip of the rear engine oil seal.


b.

Using a screwdriver, pry out the rear engine oil seal.

NOTICE:

Do not damage the surface of the rear engine oil seal press fit hole or the crankshaft.


HINT:

Tape the screwdriver tip before use.
