STEERING COLUMN STEERING COLUMN ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during steering column assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

Necessary Procedures After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Disconnect cable from negative auxiliary battery terminal	Reset back door close position	Power Back Door System	(202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

for HV Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

for Gasoline Model:

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lane Tracing Assist System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more.	(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System		(202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted	(202406,999999,_51,_111803,_0509671,RM100000002KOGF,)

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Power Door Lock Control System · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION202303,999999,_58,_111838,_0499714,RM100000002AQNJ,

NOTICE:: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202406,999999,_V1,_111780,_0504976,RM100000002MNUD,

PROCEDURE

Hide Display 1. PRECAUTION

Click hereSteering>STEERING COLUMN>STEERING SYSTEM>PRECAUTION202111,999999,_55,_111820,_0503153,RM100000001ZDMW,

Hide Display 2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide Display 45130 3.REMOVE HORN BUTTON ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL202406,999999,_58,_111838,_0502520,RM100000002MS7O,

Hide Display 4.REMOVE STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL202406,999999,_55,_111820,_0503156,RM100000002MQ2I_02_0006,

Hide Display 45287 5.REMOVE LOWER STEERING COLUMN COVER

NOTICE:: Removing the lower steering column cover in the incorrect order will cause the parts to break.

Release the tilt and telescopic lever and fully extend and lower the steering column assembly.

Lock the tilt and telescopic lever.

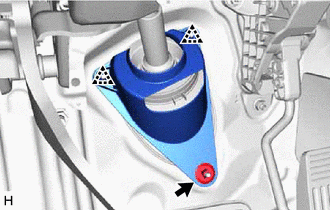

Remove the 3 screws.

0,0 0,0 false

	Push Area
	Push in this direction

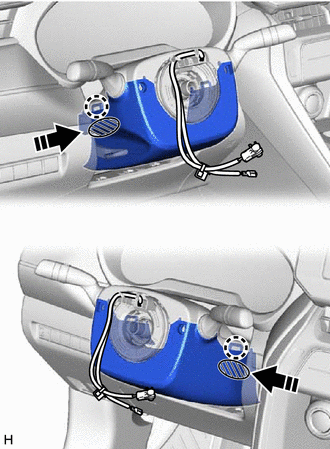

While pressing the push area shown in the illustration to disengage the 2 claws, slightly lower the lower steering column cover.

Hide Display 45286B 6.REMOVE UPPER STEERING COLUMN COVER

0,0 0,0 false

Separate in this direction

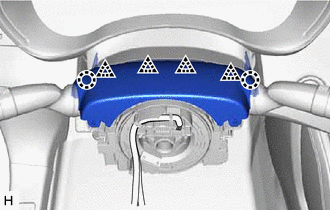

Disengage the claw and separate the upper steering column cover.

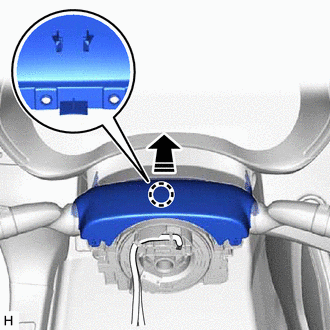

Disengage the 2 claws and 4 clips to remove the upper steering column cover.

Hide Display 7.REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

NOTICE:: ·

Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.

·

Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.

·

Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

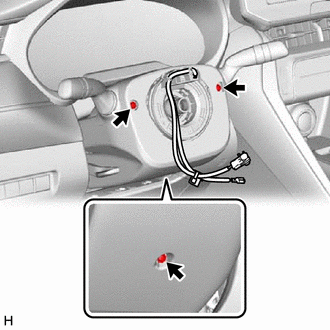

Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.

1.688,0.573 2.063,0.573 false 2.094,0.5 2.406,0.656 0.313,0.156 10 false *a

Clamp

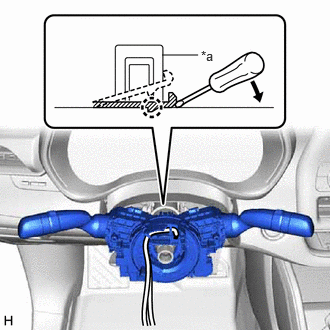

Using pliers, expand the clamp.

While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.

Hide Display 73900 8.REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>REMOVAL202406,999999,_58,_111838,_0502522,RM100000002MS7V,

Hide Display 87211A 9.REMOVE NO. 2 AIR DUCT

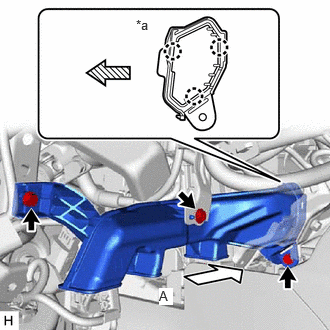

1.417,0.177 1.729,0.333 0.313,0.156 10 false *a 1.656,3 1.802,3.177 0.146,0.177 10 true A

*a	View A
	Front

Remove the 2 bolts and screw.

Disengage the 3 claws to remove the No. 2 air duct.

NOTICE:: Be careful not to deform or damage the lower heater case of the air conditioner unit assembly when removing the No. 2 air duct.

Hide Display 10.REMOVE FRONT WHEEL LH

Click hereGeneral>MAINTENANCE>TIRE AND WHEEL>REMOVAL202111,999999,_V1,_112220,_0502516,RM100000001ZAD2,

Hide Display 45220 11.SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY

Click hereSteering>STEERING GEAR / LINKAGE>STEERING GEAR>REMOVAL202409,999999,_55,_111821,_0503296,RM100000002OMWM_01_0131,

Hide Display 45253 12.REMOVE STEERING COLUMN HOLE COVER

Turn back the floor carpet.

Remove the clip.

Disengage the 2 clips to remove the steering column hole cover.

Hide Display 45220 13.REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY

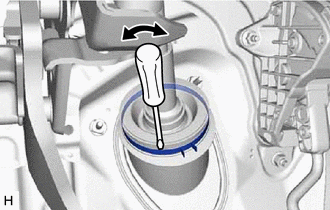

Using a screwdriver, loosen the clamp as shown in the illustration.

1.521,0.448 0.854,0.479 0.854,0.479 1.531,0.5 true 0.656,0.406 0.844,0.563 0.188,0.156 10 true *a

*a	Matchmark
	Slide in this direction

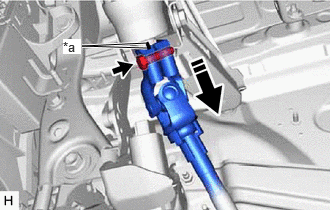

Remove the bolt and slide the steering intermediate shaft assembly.

NOTICE:: Do not remove the steering intermediate shaft assembly from the steering column assembly.

Put matchmarks on the steering intermediate shaft assembly and steering column assembly.

Remove the steering intermediate shaft assembly from the steering column assembly.

Hide Display 45250 14.REMOVE STEERING COLUMN ASSEMBLY

Disconnect each connector and disengage each wire harness clamp from the steering column assembly.

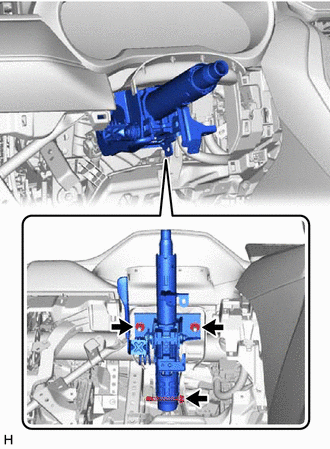

Remove the bolt, 2 nuts and steering column assembly.
