RM38N0EC _58 Vehicle Interior _111841 HEATING / AIR CONDITIONING _0499802 AMBIENT TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING AMBIENT TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during thermistor assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedures	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
Front bumper assembly*	Front television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
Replacement or removal and installation of 2 or more parts: · Front television camera assembly, radiator grille sub-assembly or front bumper assembly · Rear television camera assembly · Side television camera assembly LH or outer rear view mirror assembly LH · Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)

PROCEDURE

Hide Display 1.REMOVE FRONT BUMPER ASSEMBLY

for SFTM Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for SFTM Made)>REMOVAL202303,999999,_59,_111849,_0500095,RM100000002AYNE,

for GTMC Made:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202303,999999,_59,_111849,_0524334,RM100000002AYNC,

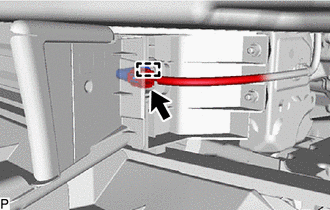

Hide Display 88790B 2.REMOVE THERMISTOR ASSEMBLY

Disengage the clamp.

Disconnect the connector to remove the thermistor assembly.
