RM38N0EC _53 Suspension _111811 REAR SUSPENSION _0525476 REAR SUSPENSION MEMBER(for Gasoline Model AWD) A

REAR SUSPENSION REAR SUSPENSION MEMBER(for Gasoline Model AWD) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension member sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
1: Also necessary after performing a tire rotation. 2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of suspension or tire replacement.
Rear wheel alignment adjustment	Perform "Calibration"	· DTCs are stored · ABS warning light illuminates · Slip indicator light illuminates · Electronically controlled brake system does not operate correctly	(202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
Tires	· Initialization12 · Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) (202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
Suspension parts*3	Parking assist ECU initialization	Panoramic View Monitor System	(202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
Suspension parts*3	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	(202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
Gas leak from exhaust system is repaired	Perform Inspection After Repair	· Poor idle, etc. · Engine start function, etc.	(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)

CAUTION:: To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

PROCEDURE

Hide Display 41110 1.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR DIFFERENTIAL CARRIER ASSEMBLY>REMOVAL202406,999999,_52,_111808,_0525514,RM100000002MQKO,

Hide Display 48740F 2.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

Click hereSuspension>REAR SUSPENSION>REAR LOWER ARM>REMOVAL202409,999999,_53,_111811,_0501206,RM100000002OMPC_01_0034,

Hide Display 48730F 3.REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48720A 4.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

Remove the bolt, nut and rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

Hide Display 48710A 5.REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 41651G 6.REMOVE DIFFERENTIAL MOUNT CUSHION

Click hereDrivetrain>AXLE AND DIFFERENTIAL>DIFFERENTIAL MOUNT CUSHION>REMOVAL202406,999999,_52,_111808,_0525515,RM100000002MQKQ_01_0004,

Hide Display 51206A 7.REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

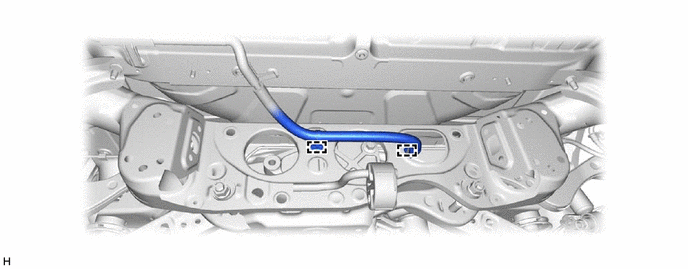

Disengage the 2 clamps to separate the frame wire.

1.438,3.708 1.563,3.708 1.563,3.708 1.635,3.927 true 1.573,4.281 2.24,4.281 2.24,4.281 2.594,4.031 true 1.938,4.271 2.292,4.021 true 2.896,3.875 2.896,3.625 2.896,3.625 2.979,3.625 false 0.531,3.74 0.698,3.74 0.698,3.74 0.781,3.875 true 3.021,3.542 3.271,3.792 0.25,0.25 10 false *a 1.385,4.198 1.719,4.448 0.333,0.25 10 false *b 0.281,3.635 0.5,3.844 0.219,0.208 10 true *b 1.188,3.604 1.406,3.813 0.219,0.208 10 true *b

*a	Engine Lifter
*b	Attachment
	Attachment Placement Location

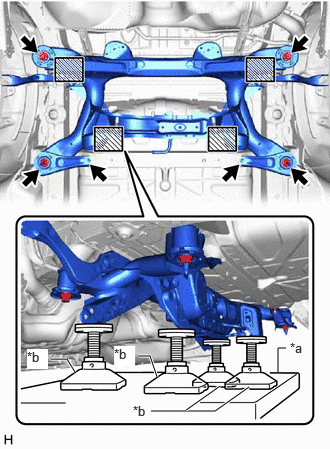

Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.

CAUTION:: ·

The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.

·

If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

NOTICE:: Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

Remove the 2 bolts, 4 nuts, 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH.

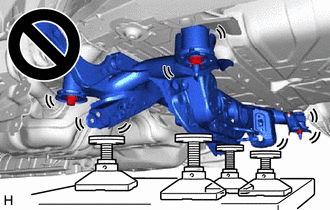

Slowly lower the rear suspension member sub-assembly.

NOTICE:: When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

Remove the 4 differential support member cushions from the rear suspension member sub-assembly.

Hide Display 48790 8.REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

Click hereSuspension>REAR SUSPENSION>REAR UPPER ARM>REMOVAL202409,999999,_53,_111811,_0501205,RM100000002OMPB_01_0009,

Hide Display 48770A 9.REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 52272A 10.REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

2.25,1.667 2.583,1.667 false 1.25,0.333 1.583,0.333 false 2.625,1.604 3.042,1.854 0.417,0.25 10 false *a 1.083,0.271 1.5,0.521 0.417,0.25 10 false *a

*a	Bend Portion

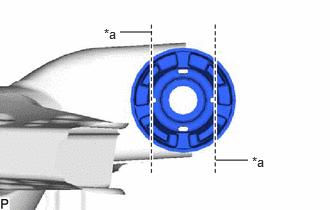

Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion rib.

NOTICE:: Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

Apply lubricant to the contact surfaces of the rear suspension member front body mounting cushion.

0.917,1.833 1.333,1.833 true 1.917,0.604 2.25,0.271 2.25,0.271 2.417,0.271 true 2.458,0.208 2.958,0.458 0.5,0.25 10 false SST 0.604,1.771 1.021,2.021 0.417,0.25 10 true SST

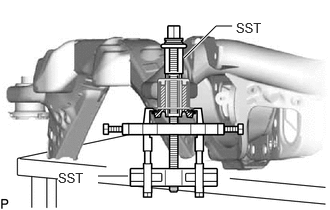

Install SST as shown in the illustration.

SST: 09830-10010 (09830-01010, 09830-01040, 09830-01050)
09950-40011 (09951-04010, 09952-04010, 09954-04010, 09955-04061, 09958-04011)

NOTICE:: Apply molybdenum grease to the threads and tip of the SST center bolt before use.

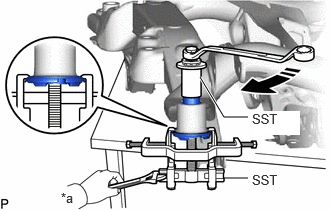

2.333,1.854 2.583,1.854 false 2.083,0.802 2.333,1.219 2.333,1.219 2.583,1.219 true 0.635,1.979 0.854,2.167 0.219,0.188 10 false *a 2.625,1.792 3.125,2.042 0.5,0.25 10 false SST 2.625,1.156 3.125,1.406 0.5,0.25 10 true SST

*a	Hold
	Turn

Using SST, remove the rear suspension member front body mounting cushion while applying lubricant into the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.

SST: 09830-10010 (09830-01010, 09830-01040, 09830-01050)
09950-40011 (09951-04010, 09952-04010, 09954-04010, 09955-04061, 09958-04011)

NOTICE:: ·

Set the claws of SST into the rear suspension member sub-assembly securely as shown in the illustration.

·

Tighten SST slowly and evenly.

·

Be careful as the rear suspension member front body mounting cushion may fly out.

·

The rear suspension member front body mounting cushion cannot be reused.

Remove SST and the rear suspension member front body mounting cushion from the rear suspension member sub-assembly.

Hide Display 52271E 11.REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 52276A 12.REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

0.833,1.875 0.833,1.635 0.833,1.635 1.135,1.635 true 0.667,1.875 1.583,1.875 true 0.833,1.75 1.583,1.75 true 2.333,2.448 2.917,2.448 true 0.344,1.813 0.927,2.063 0.583,0.25 10 false SST 2.958,2.375 3.375,2.625 0.417,0.25 10 true SST

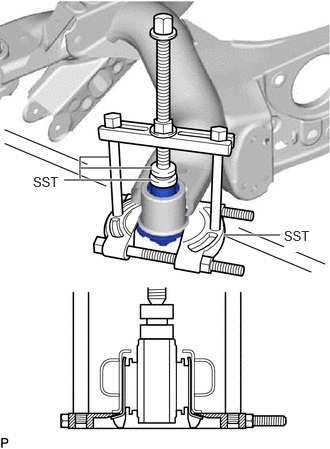

Install SST as shown in the illustration.

SST: 09950-00020
09950-00030
09950-60011  (09951-00330)

NOTICE:: Apply molybdenum grease to the threads and tip of the SST center bolt before use.

1.938,1.833 2.354,1.833 false 0.573,1.833 0.833,1.833 0.833,1.833 1.417,1.333 true 1.958,1.365 2.542,1.365 true 0.729,1.823 1.417,1.271 true 0.333,1.25 0.583,1.5 0.25,0.25 10 false *a 2.396,1.771 2.896,2.021 0.5,0.25 10 false SST 0.302,1.76 0.802,2.01 0.5,0.25 10 false SST 2.583,1.302 3.083,1.552 0.5,0.25 10 false SST

*a	Hold
	Turn

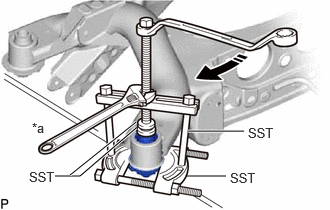

Using SST, remove the rear suspension member rear body mount cushion LH while applying lubricant into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.

SST: 09950-00020
09950-00030
09950-60011  (09951-00330)

NOTICE:: ·

Tighten SST slowly and evenly.

·

Be careful as the rear suspension member rear body mount cushion LH may fly out.

·

The rear suspension member rear body mount cushion LH cannot be reused.

Remove SST and the rear suspension member rear body mount cushion LH from the rear suspension member sub-assembly.

Hide Display 52275B 13.REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 14.REMOVE HOLE PLUG

0.333,0.313 0.49,0.51 0.156,0.198 10 false A 0.521,0.26 0.677,0.458 0.156,0.198 10 false A 0.698,0.25 0.854,0.448 0.156,0.198 10 false A 0.948,0.333 1.104,0.531 0.156,0.198 10 false B 1.708,0.76 1.865,0.958 0.156,0.198 10 true B 1.5,0.01 1.656,0.208 0.156,0.198 10 false A 2.99,0.865 3.146,1.063 0.156,0.198 10 false A 1.948,1.104 2.135,1.281 0.188,0.177 10 true A 1.438,0.76 1.573,0.938 0.135,0.177 10 true A 1.188,0.667 1.344,0.854 0.156,0.188 10 true A

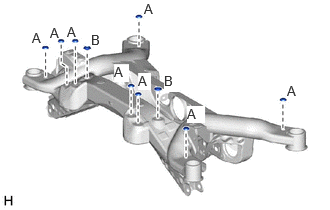

Remove the 10 hole plugs from the rear suspension member sub-assembly.

HINT:: There are 2 different shapes of hole plug.
