AXLE AND DIFFERENTIAL REAR DIFFERENTIAL CARRIER ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear differential carrier assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: Also necessary after performing a tire rotation. *2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. *3: The vehicle height changes because of suspension or tire replacement. |
|||
| Tires | ·
Initialization*1*2 ·
Tire Position Identification*1*2 |
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(  202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
|
| Rear wheel alignment adjustment | ·
Perform reset memory ·
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system does not operate correctly |
(202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
|
| Suspension parts*3 | Parking assist ECU initialization | Panoramic View Monitor System | (202406,202409,_56,_111825,_0694611,RM100000002LT4S,202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202406,202409,_56,_111825,_0524148,RM100000002KP56,202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
|
|
| Gas leaks from exhaust system | Inspection After Repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)
|
CAUTION / NOTICE / HINT
- CAUTION:
-
-
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
PROCEDURE
1.DRAIN DIFFERENTIAL OIL
37100
2.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY
77606C
3.REMOVE NO. 2 FUEL TANK PROTECTOR
4.REMOVE REAR DRIVE SHAFT ASSEMBLY LH
42330
5.REMOVE REAR DRIVE SHAFT ASSEMBLY RH
- HINT:
-
Use the same procedure described for the LH side.
17430
6.REMOVE TAIL EXHAUST PIPE ASSEMBLY
41110
7.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
|
Connector |
|
Breather Tube |
|
Bolt |
Disengage the 2 wire harness clamps to separate the wire harness.
Disconnect the 2 connectors.
Remove the bolt and wire harness clamp bracket.
Remove the breather tube.

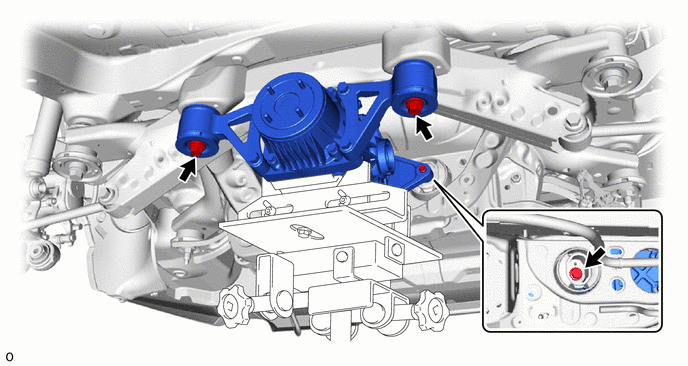

Support the rear differential carrier assembly with a transmission jack.
Remove the 3 bolts and 2 rear lower differential mount stoppers.
Slowly lower the jack and then tilt the rear differential carrier assembly.
8.REMOVE REAR NO. 1 DIFFERENTIAL SUPPORT
Remove the upper rear differential mount stopper from the rear No. 1 differential support.
Remove the 2 bolts and rear No. 1 differential support from the rear differential carrier assembly.
9.REMOVE REAR NO. 2 DIFFERENTIAL SUPPORT
Remove the upper rear differential mount stopper from the rear No. 2 differential support.
Remove the 2 bolts and rear No. 2 differential support from the rear differential carrier assembly.
52391A
10.REMOVE REAR DIFFERENTIAL SUPPORT
Remove the 4 bolts and rear differential support from the rear differential carrier assembly.
