M20C-FKS, M20D-FKS FUEL  FUEL INJECTOR(for Direct Injection)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during direct fuel injector assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)
·

Replacement of direct fuel injector assembly

·

Replacement of fuel pump assembly

·

Replacement of throttle body with motor assembly

·

Cleaning the deposits from the throttle body with motor assembly

·

Replacement of EGR valve assembly

·

Gas leak from exhaust system is repaired


Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.

·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

·
A357489

To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.



NOTICE:
·

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION



HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


PROCEDURE

Hide 23814B 2.REMOVE FUEL DELIVERY PIPE

NOTICE:

When replacing the fuel delivery pipe, it is necessary to replace the No. 1 fuel pipe sub-assembly with a new one.


a.

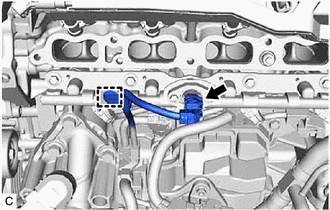

A443075

Disconnect the fuel pressure sensor connector.


b.

Disengage the clamp.


c.

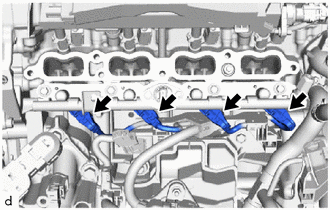

A427985

Disconnect the 4 direct fuel injector assembly connectors.

NOTICE:

Make sure to disconnect the connectors carefully.



d.

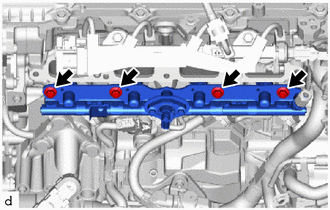

A427986

Remove the 4 bolts and fuel delivery pipe with the 4 direct fuel injector assemblies from the cylinder head sub-assembly.

NOTICE:
·

If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.

·

Make sure not to touch or strike the tips of the direct fuel injector assemblies.

·

Pull and remove the fuel delivery pipe in a straight line without tilting it.




Hide 23250E 3.REMOVE DIRECT FUEL INJECTOR ASSEMBLY

a.
A401662N01
2.031,2.052 2.802,2.25 0.771,0.198 10 false No. 3

Secure the fuel delivery pipe in a vise between aluminum plates and pull out the 4 direct fuel injector assemblies.

NOTICE:
·

Pull and remove each direct fuel injector assembly in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.

·

After removing the direct fuel injector assemblies, remove any O-rings, No. 1 fuel injector back-up rings and No. 3 fuel injector back-up rings remaining on the fuel delivery pipe side.

·

Attach a tag or label with the corresponding cylinder number to each direct fuel injector assembly so that they can be installed to their original locations.

·

Cover the tip of each direct fuel injector assembly to prevent it from being damaged.




b.

Remove the nozzle holder clamp from each direct fuel injector assembly.


c.

Using needle nose pliers, remove the No. 3 fuel injector back-up ring from each direct fuel injector assembly.

NOTICE:

Do not damage the area that contacts the O-ring.



d.

Remove the O-ring and No. 1 fuel injector back-up ring from each direct fuel injector assembly.


e.

Remove the C-ring and injector vibration insulator from each direct fuel injector assembly.


Hide 23255A 4.REMOVE FUEL INJECTOR SEAL

a.
A401663

Using the tip of needle nose pliers, pinch and pull the fuel injector seal at several points to stretch it.

NOTICE:
·

Excessively pinching the fuel injector seal may damage the groove of the direct fuel injector assembly.

·

If a direct fuel injector assembly is dropped or the tip of the direct fuel injector assembly is struck, replace it with a new one.




b.

Remove the fuel injector seal from each direct fuel injector assembly.
