The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear disc brake pad removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: Also necessary after performing a tire rotation. *2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location. |
|||
for HV Model
Auxiliary battery terminal is disconnected/reconnected |
Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
| Tires | ·
Initialization*1*2 ·
Tire Position Identification*1*2 |
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
( 202406,202409,_V1,_111780,_0504977,RM100000002MO96,202409,999999,_V1,_111780,_0504977,RM100000002OMBP,)
|
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lane Tracing Assist System | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
|
| Pre-collision System |
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Power Door Lock Control System
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
|
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.
After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.
After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.
When removing or installing the rear disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)
While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)
Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
1. PRECAUTION (for HV Model)
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
Make sure to read the precautions of the electric parking brake system before removing the rear brake assembly.
2.REMOVE REAR WHEEL
3.PERFORM REAR BRAKE PAD REPLACEMENT MODE
4.DISABLE BRAKE CONTROL (for HV Model)
890C0A

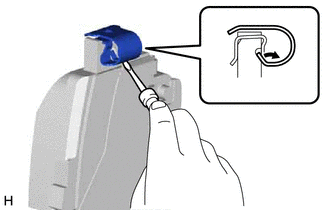

5.DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
04466
6.REMOVE REAR DISC BRAKE PAD
Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when removing the rear disc brake pads.
After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

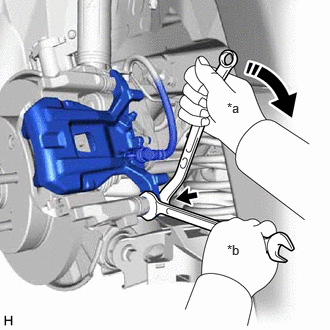

| *a | Turn |
| *b | Hold |
Hold the rear No. 1 disc brake cylinder slide pin and remove the bolt.
Pull the rear disc brake cylinder assembly upward.
Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.
04946

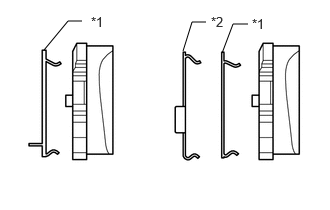

7.REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
| *1 | Rear Disc Brake Anti-squeal Shim |
| *2 | Rear No. 2 Disc Brake Anti-squeal Shim |
Remove the rear disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim from each rear disc brake pad.
Remove the rear disc brake anti-squeal shim from the rear disc brake pad.
Remove the rear disc brake pad wear indicator plate from each rear disc brake pad.
