BRAKE (REAR)  REAR BRAKE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear brake removal/installation are shown below.

CAUTION / NOTICE / HINT

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

for HV Model

Auxiliary battery terminal is disconnected/reconnected


Reset back door close position Power Back Door System (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


CAUTION / NOTICE / HINT

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the rear disc brake pads, the brake pedal may feel soft due to clearance between the rear disc brake pads and rear disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the rear disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the rear disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure.

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION (for HV Model)

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 4.DISABLE BRAKE CONTROL (for HV Model)

a.

Wait 4 minutes after turning the ignition switch off to ensure that the skid control ECU is in sleep mode.

NOTICE:
·

When the brake pedal is depressed or the door courtesy switch is turned on even if the ignition switch is off, the brake control system activates. Therefore do not depress the brake pedal or open/close the doors until the reservoir level switch connector is disconnected.

·

Do not operate the electric parking brake switch assembly when the electric parking brake system is in rear brake pad replacement mode.




b.
C440925

Disconnect the connector from the brake master cylinder reservoir assembly


c.

Disconnect the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL


d.

In order to prevent pressurized brake fluid in the accumulator from being applied to the brake calipers, depress the brake pedal 40 times or more to return the pressurized brake fluid in the accumulator back to the brake master cylinder reservoir assembly.


e.

Check that the brake pedal cannot be further depressed.


Hide 5.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 6.SEPARATE REAR BRAKE FLEXIBLE HOSE

a.
C412515

Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.


Hide 47850 10.REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY

a.
C445051C01

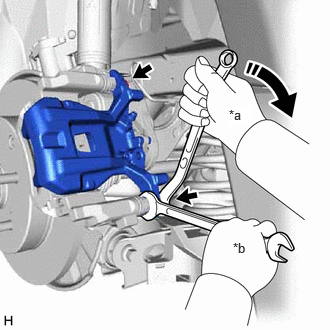

2.385,1.115 2.615,1.302 0.229,0.188 10 true *a 2.427,2.5 2.646,2.698 0.219,0.198 10 false *b
*a Turn
*b Hold


Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly.


Hide 04466 11.REMOVE REAR DISC BRAKE PAD

a.
C406516

Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.


Hide 13.REMOVE REAR DISC BRAKE PAD SUPPORT PLATE

a.
C406517

Remove the 4 rear disc brake pad support plates from the rear disc brake cylinder mounting.

NOTICE:

Each rear disc brake pad support plate has a different shape. Be sure to put an identification mark on each rear disc brake pad support plate so that it can be reinstalled to its original position.



Hide 14.REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN

a.
C406518C01
2.26,1.49 2.073,1.781 true 2.417,0.573 2.292,0.323 true 2.25,1.26 2.5,1.469 0.25,0.208 10 true *1 2.417,0.625 2.615,0.865 0.198,0.24 10 true *2
*1 Rear No. 1 Disc Brake Cylinder Slide Pin
*2 Rear No. 2 Disc Brake Cylinder Slide Pin


Remove the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin from the rear disc brake cylinder mounting.


b.
C406519C03

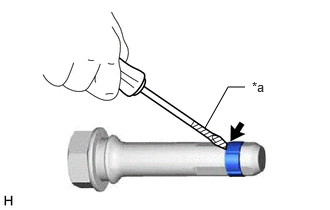

2.135,1.333 2.375,0.906 2.375,0.906 2.552,0.906 false 2.625,0.823 2.938,0.979 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear No. 2 disc brake cylinder slide pin.

NOTICE:

Do not damage the rear No. 2 disc brake cylinder slide pin.



Hide 15.REMOVE REAR DISC BRAKE BUSHING DUST BOOT

a.
C406520

Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.


Hide 47822 16.REMOVE REAR DISC BRAKE CYLINDER MOUNTING

a.
C406521

Remove the 2 bolts and rear disc brake cylinder mounting.


Hide 42431 17.REMOVE REAR DISC

a.

Put matchmarks on the rear disc and rear axle hub and bearing assembly.


b.

Remove the rear disc.
