BRAKE (FRONT)  FRONT BRAKE  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front brake removal/installation are shown below.

CAUTION / NOTICE / HINT

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

*1: Also necessary after performing a tire rotation.

*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

for HV Model

Auxiliary battery terminal is disconnected/reconnected


Reset back door close position Power Back Door System (Click here)
Tires
·

Initialization*1*2

·

Tire Position Identification*1*2


Tire Pressure Warning System Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System)
(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Learning completes when vehicle is operated normally
Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


CAUTION / NOTICE / HINT

NOTICE:
·

Immediately after installing the brake pads, the braking performance may be reduced. Always perform a road test in a safe place while paying attention to the surroundings.

·

After replacing the front disc brake pads, the brake pedal may feel soft due to clearance between the front disc brake pads and front disc. Depress the brake pedal several times until the brake pedal feels firm.

·

After replacing the front disc brake pads, always perform a road test to check the braking performance and check for vibrations.

·

When removing or installing the front disc brake cylinder assembly, pushing back the disc brake piston may cause a large clearance between the brake pads and brake disc. When the brake pedal is depressed with a large clearance between the brake pads and the brake disc, DTC C140000 and/or C140A00 related to abnormal brake fluid pressure may be stored. Make sure to clear any DTCs after performing this procedure. (for HV Model)

·

While the auxiliary battery is connected, even if the ignition switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch turns on. Therefore, when servicing the brake system components, do not operate the brake pedal or open/close the doors while the auxiliary battery is connected. (for HV Model)



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1. PRECAUTION (for HV Model)

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISABLE BRAKE CONTROL (for HV Model)

a.

Wait 4 minutes after turning the ignition switch off to ensure that the skid control ECU is in sleep mode.

NOTICE:

When the brake pedal is depressed or the door courtesy switch is turned on even if the ignition switch is off, the brake control system activates. Therefore do not depress the brake pedal or open/close the doors until the reservoir level switch connector is disconnected.



b.
C440925

Disconnect the connector from the brake master cylinder reservoir assembly


c.

Disconnect the cable from the negative (-) auxiliary battery terminal.

Click hereGeneral>MAINTENANCE>A25D-FXS, A25F-FXS AUXILIARY BATTERY>REMOVAL


d.

In order to prevent pressurized brake fluid in the accumulator from being applied to the brake calipers, depress the brake pedal 40 times or more to return the pressurized brake fluid in the accumulator back to the brake master cylinder reservoir assembly.


e.

Check that the brake pedal cannot be further depressed.


Hide 4.DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.


Hide 47313J 5.DISCONNECT FRONT FLEXIBLE HOSE

a.
C407440

Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.


Hide 47750 6.REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

a.
C397681C03
1.469,1.563 1.729,1.76 0.26,0.198 10 true *a 2,1.667 2.219,1.844 0.219,0.177 10 true *b
*a Turn
*b Hold

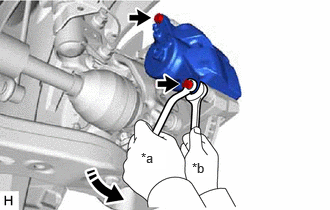

Hold the 2 front disc brake cylinder slide pins and remove the 2 bolts and front disc brake cylinder assembly.


Hide 7.REMOVE FRONT DISC BRAKE PAD

a.
C397682

Remove the 2 front disc brake pads from the front disc brake cylinder mounting.


Hide 9.REMOVE FRONT DISC BRAKE PAD SUPPORT PLATE

a.
C433499

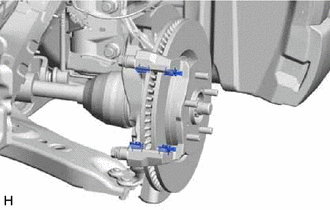

Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting.

NOTICE:

Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.



Hide 47715A 10.REMOVE FRONT DISC BRAKE CYLINDER SLIDE PIN

a.
C397684

Remove the 2 front disc brake cylinder slide pins from the front disc brake cylinder mounting.


b.
C397685C01
2.083,1.385 2.438,0.813 2.438,0.813 2.531,0.813 false 2.583,0.75 2.896,0.906 0.313,0.156 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front disc brake cylinder slide pin (lower side).

NOTICE:

Do not damage the front disc brake cylinder slide pin.



Hide 11.REMOVE FRONT DISC BRAKE BUSHING DUST BOOT

a.
C397686

Remove the 2 front disc brake bushing dust boots from the front disc brake cylinder mounting.


Hide 47722 12.REMOVE FRONT DISC BRAKE CYLINDER MOUNTING

a.
C397687

Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.


Hide 43512 13.REMOVE FRONT DISC

a.
C397688C03
2.021,1 2.813,1.052 2.813,1.052 2.052,1.063 true 2.927,0.958 3.24,1.156 0.313,0.198 10 false *a
*a Matchmark


Put matchmarks on the front disc and the front axle hub sub-assembly.


b.

Remove the front disc.
