LIGHTING (EXT)  REAR TURN SIGNAL LIGHT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear turn signal light assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function When Necessary Procedures are not Performed Link
Auxiliary battery terminal is disconnected/reconnected Reset back door close position Power Back Door System (Click here)

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

for HV Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. (Click here)
Pre-collision System

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

for Gasoline Model:

Items for which learning is completed by driving the vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. (Click here)
Pre-collision System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted (Click here)

Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power Door Lock Control System
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81540 2.REMOVE REAR TURN SIGNAL LIGHT ASSEMBLY

a.

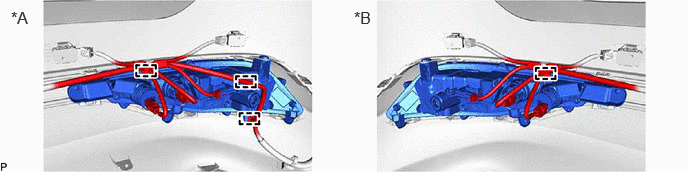

Disengage each clamp.

E475191C01
0.115,0.083 0.49,0.323 0.375,0.24 12 false *A 3.688,0.083 4.063,0.323 0.375,0.24 12 false *B
*A for LH Side *B for RH Side



b.
E475192

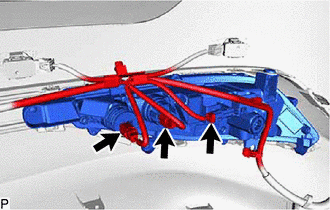

Disconnect the 3 connectors.


c.
E475193

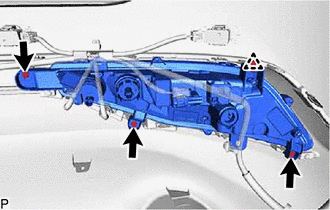

Remove the clip.


d.

Remove the 3 screws.


e.
E480432

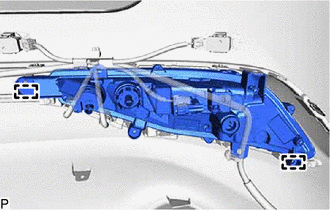

Disengage the 2 guides to remove the rear turn signal light assembly.
